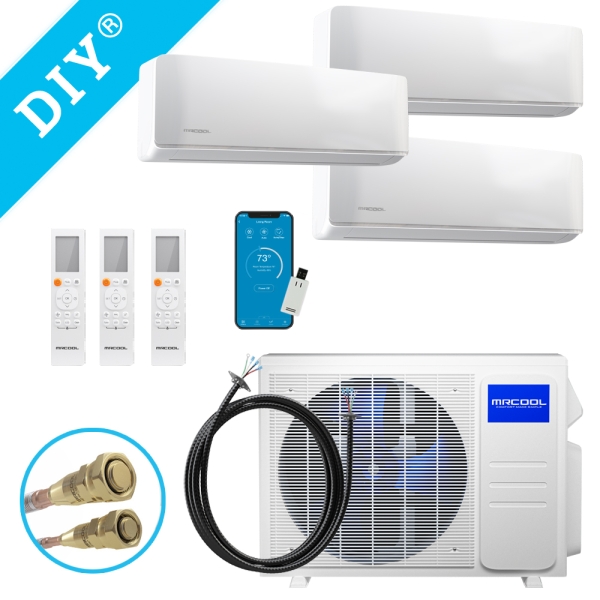

36k BTU 21.5 SEER Multi-Zone MrCool DIY 3 Zone Ductless Heat Pump Split System 4th Generation - 9k+12k+18k
Shop All MRCOOL

Accessories
Description / Documents
Looking to heat or cool three areas of you home at once? The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is an easy-to-install solution.
The heat pump portion of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split has an efficient 36,000 BTU heating capacity and a SEER of 21.5. The 9,000 BTU air handler can heat or cool a space between 375-450 square feet, while the 12,000 BTU air handler can cover an area between 500-600 square feet. The 18,000 BTU handler has the capability to heat or cool between 750-900 square feet.
The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split was designed for the amateur installer. You won't need any special tools, training, or professional HVAC assistance. This is thanks in part to the Quick Connect line set that comes pre-charged with R410-A refrigerant. Also lending to the ease of installation, the DIYPRO cable provides superior mechanical protection from animals, yard tools, and weather all without the need for an electrical conduit.
The MrCool DIY Ductless Mini Split has customizable control options. Utilize the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.
There are a variety of different modes to choose from to make use of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. The auto mode is the most convenient for those who want their space to remain the same temperature consistently.
The MrCool DIY Ductless Mini Split can save energy and money while you sleep! During Sleep mode, the unit will run for 8 hours total. During the first two hours, the unit will adjust the temperature by 2 degrees F per hour. It will then maintain that temperature for the next 6 hours, conserving energy while you snooze away.
There are a multitude of features available with the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. The timer function lets you conserve energy when it isn't needed. Set the timer for the amount of time you need to use the system, and it will efficiently heat or cool until the timer turns off. If there is a power outage, the unit will immediately return to its previous setting and begin heating or cooling again automatically.
Maintaining the MrCool DIY Mini Split is as easy as the installation. To clean the indoor or outdoor units, simply wipe them down with a dry or damp cloth. If a problem were to occur, the LED display will show troubleshooting codes that can be easily referenced in the user manual. Cleaning the air filters is as easy as rinsing them with water and allowing them to dry before replacing them in the handler.
You can feel secure in your purchase knowing that it is backed a 7-year compressor warranty and a 5-year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM336HPW05C28 |
|---|---|
| UPC | 810080368583 |
| AHRI Number | 207339194 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 10.5 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 3 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-12-HP-WMAH-230C25 Specifications:
| Model | DIY-12-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869540 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-18-HP-WMAH-230C25 Specifications:
| Model | DIY-18-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868512 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.610000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
