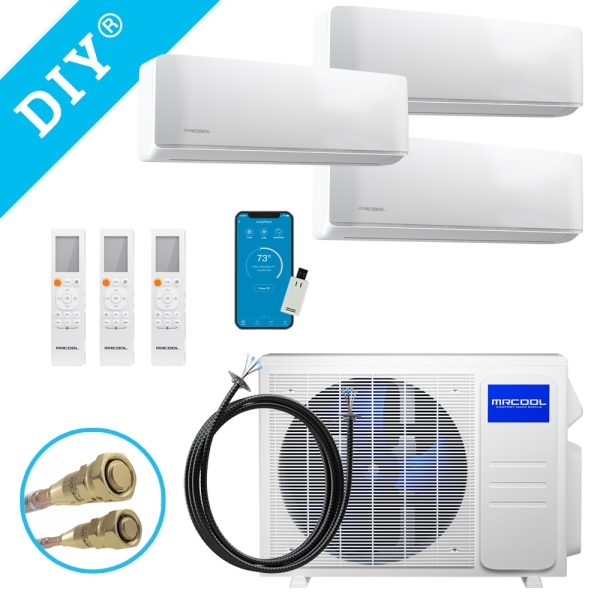

Installation of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is easily completed by even the most inexperienced homeowner. No special tools, training, or assistance are needed. The 36k BTU, 21.5 SEER heat pump uses reverse air conditioning to draw in air from outside to heat your home. The two 9,000 BTU air handlers can distribute heated or cooled air in a space between 375-450 square feet, while the 18,000 BTU air handler does the same between 750-900 square feet.
Accessories
Description / Documents

Installation of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is easily completed by even the most inexperienced homeowner. No special tools, training, or assistance are needed. The 36k BTU, 21.5 SEER heat pump uses reverse air conditioning to draw in air from outside to heat your home. The two 9,000 BTU air handlers can distribute heated or cooled air in a space between 375-450 square feet, while the 18,000 BTU air handler does the same between 750-900 square feet.

The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split can be easily installed thanks to the Quick Connect line set which comes pre-charged with an eco-friendly refrigerant. The DIYPRO cable provides excellent mechanical protection from weather, animals, or yard tools without the need for an electrical conduit.

You have the ability to customize the way you control the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. You can utilize the included remote, the SmartHVAC app or your Amazon Alexa or Google Assistant.

Do you know what temperature you like? Then the auto mode is for you. With auto mode, you can set your desired temperature, and the system will work to continuously keep your space at that temperature without lifting a finger. You can also keep the air handlers condensation free with the anti-mildew function. With this function, the air handler will continue to run with low air flow for 10 minutes after being powered off to dry moisture inside the unit.

There are a variety of other features to take advantage of with the the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. Only need heating and cooling for a specific period of time? The timer function will let you heat or cool your space for a designated period of time before shutting off, so you're not using energy when unnecessary. If there happens to be a power outage in your home, you won't have to worry about adjusting the settings once power is restored. The system will automatically return to your previous settings and immediately begin working to heat or cool your home to the temperature it was before the outage.

Maintenance is also simple with the MrCool DIY Ductless Mini Split's built-in alerts and reminders. Troubleshooting codes will appear on the front display when an issue arises, and the user manual contains an index for these codes. Maintain the exterior of each indoor and outdoor unit by wiping it down with a damp or dry cloth. When the filter gets dirty, simply remove them, rinse them with water, and let them dry before replacing.

You can feel confident in your investment of the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split thanks to the 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW02C28
UPC 810080364943
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
