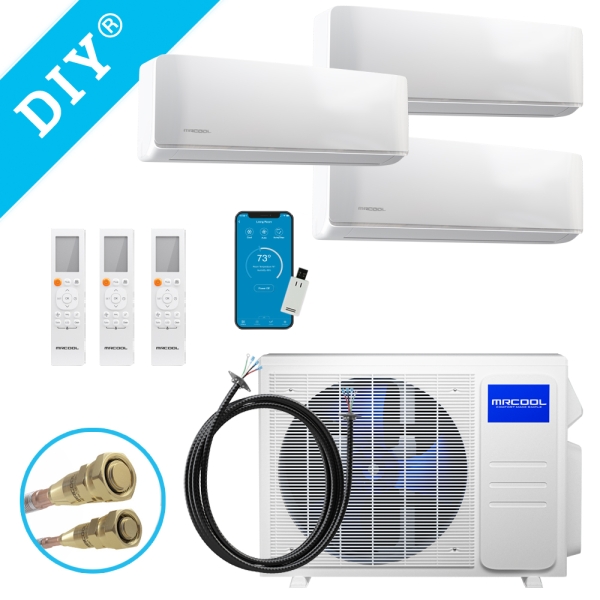

Heating or cooling three rooms can have an easy solution. The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split gives you the opportunity to do that and even install it yourself. The two 9,000 BTU air handlers can each heat or cool a space between 375-450 square feet, while the 24,000 BTU unit will heat or cool an area between 1,000-1,200 square feet.
Accessories
Description / Documents

Heating or cooling three rooms can have an easy solution. The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split gives you the opportunity to do that and even install it yourself. The two 9,000 BTU air handlers can each heat or cool a space between 375-450 square feet, while the 24,000 BTU unit will heat or cool an area between 1,000-1,200 square feet.

You won't need any special training, tools, or assistance to install the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split. The Quick Connect line set comes pre-charged with refrigerant R-410A that is more environmentally friendly than previous commonly used refrigerants. In addition, the new DIYPRO cable aids in the installation ease by eliminating the need for an electrical conduit while providing superior mechanical protection

The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split has a variety of operational modes. The main mode is the auto mode, which lets you set it and forget it. You just select one desired temperature and the unit will adjust as needed to maintain that specific temperature.

With the sleep mode, you set a temperature and over the first two hours, the temperature will either increase when cooling or decrease when heating by 2 degrees each hour then maintain that temperature for the next 6 hours. This allows you to conserve energy and utility costs while you snooze.

In addition to those convenient features, the 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split has many others. The timer function saves you energy by only heating or cooling your space for the amount of time you set. If a power outage occurs, the system will automatically restart when power is restored and immediately begin cooling or heating your space back to your desired temperature.

Maintenance is just as easy as installing it. Cleaning both the indoor and outdoor units is easily done with a damp or dry cloth. The filters are reusable and only need to be rinsed with tap water then laid out to dry before replacing.

The 4th Generation MrCool DIY Multi-Zone 36k BTU 3 Zone Ductless Mini Split is protected by a 7-year compressor warranty and a 5-year parts warranty, so you can feel confident in your investment.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW03C35
UPC 810080366817
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-24-HP-WMAH-230C25 Specifications:

Model DIY-24-HP-WMAH-230C25
UPC 810063868536
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 35.270000
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-3858 Specifications:

Model DIY25-3858
UPC 810035931053
Liquid Line Size 3/8 inch
Weight (lbs) 15.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None
