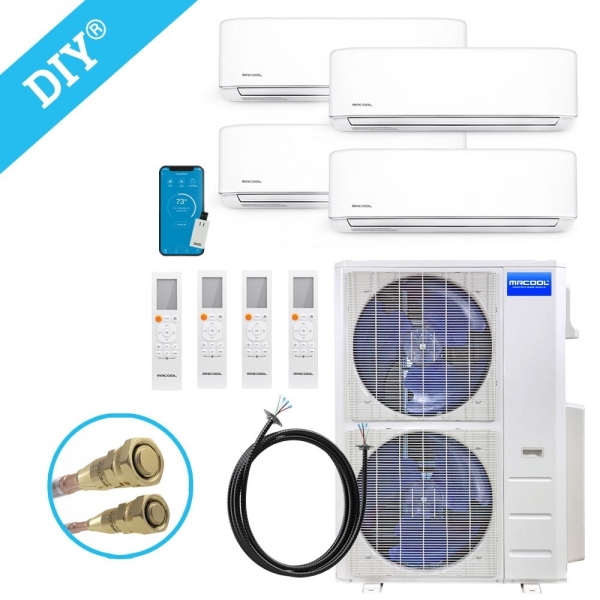

39k BTU 20.5 SEER Multi-Zone MrCool DIY 4 Zone Ductless Heat Pump Split System 4th Generation - 9k+9k+9k+12k
Shop All MRCOOL

Accessories
Description / Documents
Heat or cool four spaces at once with the 4th Generation MrCool DIY Multi-Zone 39k BTU 4 Zone Ductless Mini Split. This is an efficient, multi-zone heating and air conditioning solution that you can install on your own. The outdoor heat pump has a heating capacity of 36,000 BTU and is highly efficient with a SEER rating of 20.5. This is thanks in part to the variable speed DC inverter. All three 9,000 BTU air handlers can heat or cool approximately 375-450 square feet, while the 12,000 BTU handler can cover between 500-600 feet.
Install both in the indoor and outdoor components of the 4th Generation MrCool DIY Multi-Zone 39k BTU 4 Zone Ductless Mini Split without the need for expert HVAC assistance, special tools, or training. This is thanks to the Quick Connect line set, which is pre-charged with an environmentally friendly refrigerant. Another useful installation feature is the DIYPRO cable. It provides superior mechanical protection without the need for an electrical conduit.
You're in total control of the 4th Generation MrCool DIY Multi-Zone 39k BTU 4 Zone Ductless Mini Split. Included is the convenient wireless remote, but you can also control the unit with your Apple or Android device via the SmartHVAC app. Or, go totally hands-free and use your Amazon Alexa or Google Assistant.
To prevent mildew accumulation due to excessive condensation in the handlers, use the anti-mildew function. The handler will run with a low air flow for 10 minutes after the unit is powered off to eliminate excess moisture. Like all the other features on the MrCool DIY, this function is easy to activate and turns off automatically.
The 4th Generation MrCool DIY Multi-Zone 39k BTU 4 Zone Ductless Mini Split has many other useful features. Power goes out? The system will automatically return to operation with the same settings once power is restored. Want to save on your utility costs? To limit energy usage and save money on your next utility bill, use the timer function.
Even maintenance is simple. Clean each indoor and outdoor unit by simply wiping both the indoor and outdoor equipment with a dry or damp cloth. No special cleaning solutions are required. Plus, the air handler filters are easy to clean with running water. Jut allow them to dry then replace them in the air handler.
The 4th Generation MrCool DIY Multi-Zone 39k BTU 4 Zone Ductless Mini Split is backed by a 7-year compressor warranty and a 5-year parts warranty. You can feel confident in your purchase!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM448HPW00C84 |
|---|---|
| UPC | 840255526401 |
| Bundle Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Bundle Cooling Capacity | 3 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 11 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 4 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-12-HP-WMAH-230C25 Specifications:
| Model | DIY-12-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869540 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
