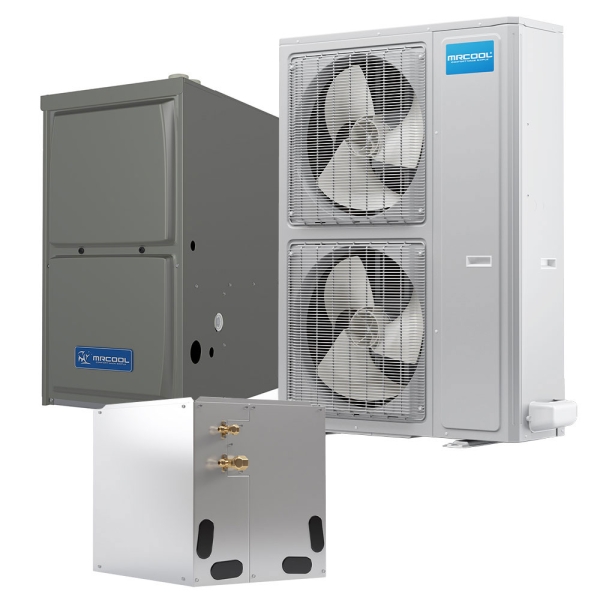

4 to 5 Ton 15.5 SEER2 135k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal

Item
HA23878
Models MDUCO18048060, MGM96SE135D5XA, MDUCC15048060
Condition
New
Was:
See Details... Click for price

Customize 4 to 5 Ton 15.5 SEER2 135k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    What's included



    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.

    • 4 Ton 18 SEER, 5 Ton 17 SEER
    • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
    • Low Ambient Cooling Down to 39.2 Degrees F
    • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
    • AHRI Certified & ETL listed
    • Slim Design
    • Quiet 55-58dB(a) Operation
    • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
    • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
    • 10 Year Registered Limited Warranty

    4 to 5 Ton MrCool Universal Evaporator Coil - Quick Connect - Multiposition - 24.5" cabinet

    4 to 5 Ton MrCool Universal Evaporator Coil - Quick Connect - Multiposition - 24.5

    The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MDUCO18048060,MGM96SE135D5XA,MDUCC15048060
    UPC 810063867492
    AHRI Number 207177525
    Gas Furnace Efficiency 96+%
    Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
    Bundle Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Bundle Cooling Efficiency 17 SEER
    Bundle Cooling Efficiency (SEER2) 15.5
    EER 11.7
    EER2 10.2
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUCO18048060 Specifications:

    More Information
    Model MDUCO18048060
    UPC 810063867492
    Product Height (in) 56.375
    Avg Coverage Area 2,000 - 2,500 Sq Ft
    Product Length (in) 37
    Compressor Inverter
    Product Width (in) 12.625
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 45 amps
    Weight (lbs) 289.000000
    Refrigerant R-410a
    Cooling Efficiency 18 SEER
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility North, Southeast

    MGM96SE135D5XA Specifications:

    More Information
    Model MGM96SE135D5XA
    UPC 840255553346
    AHRI Number 209832544
    Product Height (in) 33
    Gas Furnace Efficiency 96+%
    Product Length (in) 29
    Configuration Floor Mounted
    Product Width (in) 24.5
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 2,000 - 2,400 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 5 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe PVC
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 174.000000
    Primary Heating Capacity 130,001 - 135,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 2 inches, 3 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    MDUCC15048060 Specifications:

    More Information
    Model MDUCC15048060
    UPC 810063867539
    Product Height (in) 28.5
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Length (in) 21.25
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Product Width (in) 24.5
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 110.000000
    Refrigerant R-410a
    Series Universal
    Suction Line Size 3/4 inch
    Warranty 5 Year Parts
