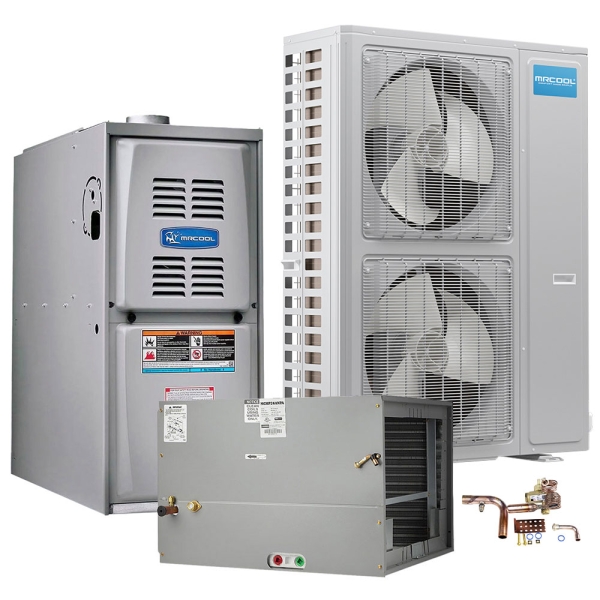

4 to 5 Ton 16 SEER2 110k BTU 80% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Horizontal

Models MDUO18048060, MCHP48CNPA, MGM80SE110C5A, H4TXV03

Customize 4 to 5 Ton 16 SEER2 110k BTU 80% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Horizontal

* Required Fields

In stock

Ships Within 1-2 Business Days

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.

    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    4 to 5 Ton MrCool Thermostatic Expansion Valve Kit
    Item: HA20017 Model: H4TXV03
    Qty: 1

    What's included

    • MrCool MDUO18048060
    • MrCool MCHP48CNPA
    • MrCool MGM80SE110C5A
    • MrCool H4TXV03
    • Owner Manual
    • Lifetime Tech Support

    110k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 21" Cabinet

    110k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal -  21

    Manufacturer Highlights

    When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL 110k BTU single stage, 80% AFUE gas furnace. This system can be installed upflow or horizontal, and is designed to operate for decades, provide powerful heating capability, and best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.

    Standard Features

    • Removable floor base for bottom return air
    • Easily removable slide out blower design
    • Left or right utility connections
    • Zero step horizontal conversion
    • Aluminized steel inshot burners for smooth ignition
    • Variable speed high efficiency blower motor
    • AHRI Certified
    • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
    • Heating efficiency of 80% AFUE
    • Registered 10-year parts warranty
    • Compact 33 inch height
    • Rotatable draft inducer for venting flexibility

    4 to 5 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

    4 to 5 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser

    The 4 to 5 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. The sophisticated tech inside this unit both regulates the temperature of your home and controls the compressor motor speed simultaneously. It eliminates extreme fluctuations in the operating load and extends the unit’s life.

    • 4 Ton Mode: 17 SEER2, 5 Ton Mode: 17 SEER
    • Ultra Wide Operating Temperature Range
    • Gas Furnace Not Required
    • Compatible with any third party air handler and thermostat including WiFi/Nest/Honeywell
    • Rapid cooling and heating
    • Internal Fan Blade Creates Low Noise
    • Factory Charged R410
    • ETL and AHRI certified

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MUH184860H48G810
    UPC 840255583961
    Gas Furnace Efficiency 80%
    Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
    Bundle Cooling Capacity 4 Ton, 5 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    Bundle Cooling Efficiency (SEER2) 17
    EER 12.2
    EER2 10.2
    Heat Pump Efficiency (HSPF) 10.5
    Heat Pump Efficiency (HSPF2) 9
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUO18048060 Specifications:

    More Information
    Model MDUO18048060
    UPC 810512032938
    Product Height (in) 56.3
    Avg Coverage Area 2,000 - 2,500 Sq Ft
    Product Length (in) 12.6
    Compressor Inverter
    Product Width (in) 37
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) 10
    Heat Pump Efficiency (HSPF2) 9
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 45 amps
    Weight (lbs) 328.000000
    Primary Heating Capacity 48,000 - 60,000 BTU
    Refrigerant R-410a
    Cooling Efficiency 18 SEER
    Cooling Efficiency (SEER2) 17
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility Nationwide

    MCHP48CNPA Specifications:

    More Information
    Model MCHP48CNPA
    UPC 810512031207
    Product Height (in) 21
    Air Flow Direction Horizontal
    Product Length (in) 21.5
    Cooling Capacity 4 Ton
    Product Width (in) 26.5
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 59.000000
    Refrigerant R-410a
    Series Signature
    Suction Line Size 7/8 inch
    Warranty 10 Year Parts

    MGM80SE110C5A Specifications:

    More Information
    Model MGM80SE110C5A
    UPC 810512033652
    AHRI Number 204085901
    Product Height (in) 33
    Gas Furnace Efficiency 80%
    Product Length (in) 28.5
    Configuration Floor Mounted
    Product Width (in) 21
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 2,000 - 2,400 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 5 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe Metal
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 161.000000
    Primary Heating Capacity 105,001 - 110,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 4 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    H4TXV03 Specifications:

    More Information
    Model H4TXV03
    UPC 810512034703
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
