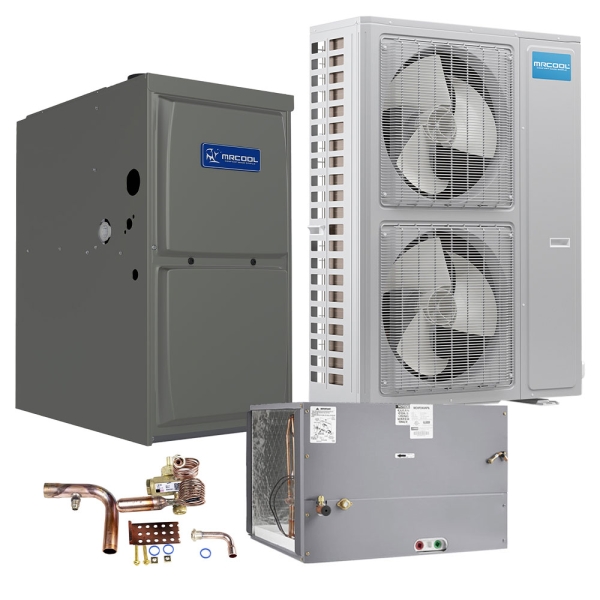

4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal
Item
HA24072
Models MDUCO18048060, MGM96SE110C5XA, MCHP48CNPA, H4TXV03
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA22599 Model: MGM96SE110C5XA
Qty: 1
Item: HA18852 Model: MCHP48CNPA
Qty: 1
Are you in need of a more efficient way to create consistent climate control in your 2000 to 2400 square foot living space? Rather than grappling with the multitude of options available on the market, ditch your antiquated heating and cooling system for an upgrade to the 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split tSystem - Horizontal. This Horizontal Universal MrCool boasts a SEER2 rating of 16 and an incredible AFUE rating of 96%, even getting backed by UL listing, AHRI certification, and ETL listing to authenticate the legitimacy of every operational claim.
Taking advantage of a plethora of powerful features, the 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal surpasses the competition to deliver unmatched performance. Providing connectivity options like flare fitting, sweat braze fitting, or pre-charged no-vac quick connect line sets, with optional line sets available separately at 15 ft, 25 ft, 35 ft, and 50 ft, you have the versatility to guarantee the ideal fit for your space. A user-friendly metal filter that's effortless to clean means you can benefit from safety from problems like fire hazards, corrosion, and degradation without the inconvenience of expensive filter replacements over the years. Decked out with an AC condenser, gas furnace, evaporator coil, and thermostatic expansion valve, this bundle offers a complete solution to address the unique demands of your space.
Pushing these attributes to the next level, the 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal is dedicated to enhancing your overall comfort. With the strength of a highly efficient, energy-saving DC fan motor and a nearly silent internal fan blade, your comfort is optimized from every angle. A specialized fire-proof electrical box design that promises anti-electric shock protection reserved installation space for the circuit breaker, working in tandem with two-step condensation protective measures, lets you make use of every precaution integrated into this MrCool Split System. Certified for use in manufactured housing, you can breathe easy knowing that this Low NOx Horizontal Universal MrCool is ready to leave a noticeable impression on your living space.
Backed by a limited warranty covering 10 years on parts and a lifetime for the heat exchanger, why put off your decision any further? Secure this MrCool Universal Split System today and turn your home into the pristine sanctuary you've been longing for.
4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
- 4 Ton 18 SEER, 5 Ton 17 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
| Model | MUC184860H48G910 |
|---|---|
| UPC | 840255583596 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| Bundle Cooling Efficiency (SEER2) | 16 |
| EER | 12.2 |
| EER2 | 10.2 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MDUCO18048060 Specifications:
| Model | MDUCO18048060 |
|---|---|
| UPC | 810063867492 |
| Product Height (in) | 56.375 |
| Avg Coverage Area | 2,000 - 2,500 Sq Ft |
| Product Length (in) | 37 |
| Compressor | Inverter |
| Product Width (in) | 12.625 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 45 amps |
| Weight (lbs) | 289.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency | 18 SEER |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | North, Southeast |
MGM96SE110C5XA Specifications:
| Model | MGM96SE110C5XA |
|---|---|
| UPC | 840255553339 |
| AHRI Number | 209832543 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 164.000000 |
| Primary Heating Capacity | 105,001 - 110,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCHP48CNPA Specifications:
| Model | MCHP48CNPA |
|---|---|
| UPC | 810512031207 |
| Product Height (in) | 21 |
| Air Flow Direction | Horizontal |
| Product Length (in) | 21.5 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 26.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 59.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
H4TXV03 Specifications:
| Model | H4TXV03 |
|---|---|
| UPC | 810512034703 |
| Product Height (in) | 3.7 |
| Product Length (in) | 9.7 |
| Product Width (in) | 5.8 |
| Weight (lbs) | 2.000000 |
