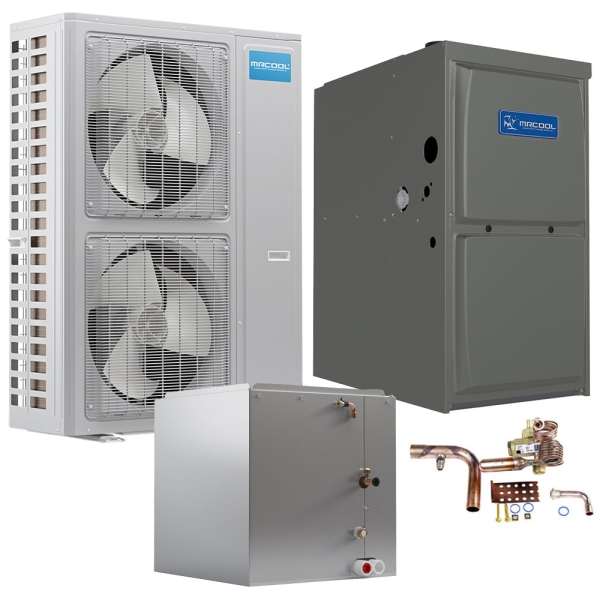

4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow


Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
Refusing to tolerate the inconvenience of unpredictable climate control in your residence should never be the norm you settle for. With such an overwhelming number of options available in the market, the 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow emerges as the ultimate solution for your 2000 to 2400 square foot space. With several elements of this bundle obtaining CSA certification, ETL listing, and AHRI certification, combined with a SEER2 rating of 16 and an outstanding AFUE rating of 96%, this MrCool Universal Split System validates the credibility of every operational assertion.
Packed with a diverse range of potent features, the condenser in this 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow is ready to confront any obstacles. Running at noise levels similar to background discussions in an office or restaurant, this MrCool Universal Condenser promises that your comfort goes beyond just temperature control. The gold fin anti-corrosion technology reinforces the condenser's resilience, thwarting corrosion over the years. With three different options of flare connection, sweat braze connection, and the patented pre-charged no-vac quick connect line sets all within a dense design, this MrCool Split System is tailored to fulfill your unique needs.
Pushing performance up a notch, the gas furnace in the 4 to 5 Ton 16 SEER2 110k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow outshines its competitors. A sleek design encases the single-stage gas valve, helping to provide unparalleled results without taking up much space. The sturdy build and finish on the cabinet of this MrCool Gas Furnace promises both hushed operation and energy efficiency, prioritizing your comfort from every angle. This adaptable MrCool Universal system can even be adjusted to operate on LP gas after integrating a conversion kit, providing a straightforward method to guarantee the system handles your requirements. With a rotatable draft inducer, you can rest assured knowing that any residual gasses in the system will be dispelled outside of your home when the system activates, further ensuring your safety.
Supported by a warranty covering 10 years on parts and a lifetime on the heat exchanger, why delay your choice any further? Obtain this MrCool Universal Split System today and transform your home into the tranquil paradise you've been yearning for.
4 Ton MrCool Signature Evaporator Coil - Vertical - 21" Cabinet

Manufacturer Highlights
This is a brand new 4 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Standard Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- R22 & R410A compatible
- Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Mobile home approved
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
| Model | MUH184860V48G910 |
|---|---|
| UPC | 840255584203 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| Bundle Cooling Efficiency (SEER2) | 17 |
| EER | 12.2 |
| EER2 | 10.2 |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Heat Pump Efficiency (HSPF2) | 9 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MCVP48CNPA Specifications:
| Model | MCVP48CNPA |
|---|---|
| Product Height (in) | 27.5 |
| Air Flow Direction | Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 21 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 60.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
MGM96SE110C5XA Specifications:
| Model | MGM96SE110C5XA |
|---|---|
| UPC | 840255553339 |
| AHRI Number | 209832543 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 164.000000 |
| Primary Heating Capacity | 105,001 - 110,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
