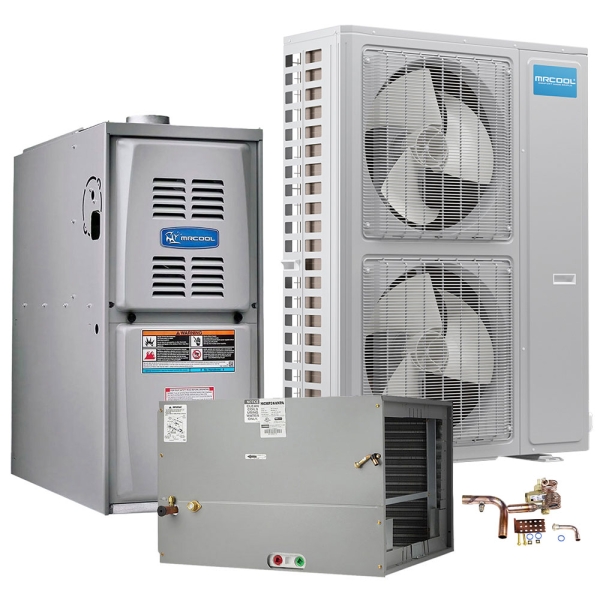

4 to 5 Ton 16 SEER2 135k BTU 80% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal

Models MDUCO18048060, MGM80SE135D5A, MCHP60DNPA, H4TXV03

Customize 4 to 5 Ton 16 SEER2 135k BTU 80% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal

* Required Fields

In stock

Ships Within 1-2 Business Days

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.

    Get everything right and save time

    Contact an expert now.

    What's included

    • MrCool MDUCO18048060
    • MrCool MGM80SE135D5A
    • MrCool MCHP60DNPA
    • MrCool H4TXV03
    • Owner Manual
    • Lifetime Tech Support

    135k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

    135k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal -  24.5

    Manufacturer Highlights

    When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL 135k BTU single stage, 80% AFUE gas furnace. This system can be installed upflow or horizontal, and is designed to operate for decades, provide powerful heating capability, and best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.

    Standard Features

    • Removable floor base for bottom return air
    • Easily removable slide out blower design
    • Left or right utility connections
    • Zero step horizontal conversion
    • Aluminized steel inshot burners for smooth ignition
    • Variable speed high efficiency blower motor
    • AHRI Certified
    • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
    • Heating efficiency of 80% AFUE
    • Registered 10-year parts warranty
    • Compact 33 inch height
    • Rotatable draft inducer for venting flexibility

    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.

    • 4 Ton 18 SEER, 5 Ton 17 SEER
    • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
    • Low Ambient Cooling Down to 39.2 Degrees F
    • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
    • AHRI Certified & ETL listed
    • Slim Design
    • Quiet 55-58dB(a) Operation
    • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
    • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
    • 10 Year Registered Limited Warranty

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MUC184860H60G835
    UPC 840255583244
    Gas Furnace Efficiency 80%
    Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
    Bundle Cooling Capacity 4 Ton, 5 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    Bundle Cooling Efficiency (SEER2) 16
    EER 12.2
    EER2 10.2
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUCO18048060 Specifications:

    More Information
    Model MDUCO18048060
    UPC 810063867492
    Product Height (in) 56.375
    Avg Coverage Area 2,000 - 2,500 Sq Ft
    Product Length (in) 37
    Compressor Inverter
    Product Width (in) 12.625
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 45 amps
    Weight (lbs) 289.000000
    Refrigerant R-410a
    Cooling Efficiency 18 SEER
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility North, Southeast

    MGM80SE135D5A Specifications:

    More Information
    Model MGM80SE135D5A
    UPC 810512033669
    AHRI Number 204085903
    Product Height (in) 33
    Gas Furnace Efficiency 80%
    Product Length (in) 28.5
    Configuration Floor Mounted
    Product Width (in) 24.5
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 2,500 - 3,000 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 5 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe Metal
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 174.000000
    Primary Heating Capacity 130,001 - 135,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 4 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    MCHP60DNPA Specifications:

    More Information
    Model MCHP60DNPA
    UPC 810512031245
    Product Height (in) 24.5
    Air Flow Direction Horizontal
    Product Length (in) 21.5
    Cooling Capacity 5 Ton
    Product Width (in) 31.5
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 78.000000
    Refrigerant R-410a
    Series Signature
    Suction Line Size 7/8 inch
    Warranty 10 Year Parts

    H4TXV03 Specifications:

    More Information
    Model H4TXV03
    UPC 810512034703
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
