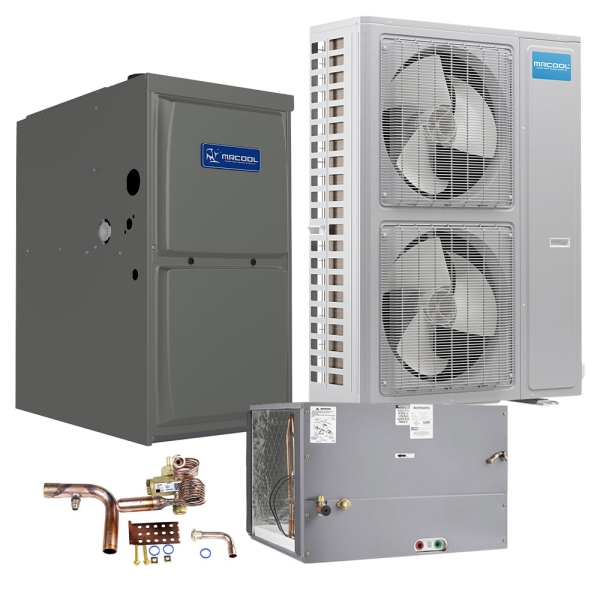

4 to 5 Ton 16 SEER2 135k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Horizontal
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
- 4 Ton 18 SEER, 5 Ton 17 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
| Model | MUC184860H60G935 |
|---|---|
| UPC | 840255583619 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| Bundle Cooling Efficiency (SEER2) | 16 |
| EER | 12.2 |
| EER2 | 10.2 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MDUCO18048060 Specifications:
| Model | MDUCO18048060 |
|---|---|
| UPC | 810063867492 |
| Product Height (in) | 56.375 |
| Avg Coverage Area | 2,000 - 2,500 Sq Ft |
| Product Length (in) | 37 |
| Compressor | Inverter |
| Product Width (in) | 12.625 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 45 amps |
| Weight (lbs) | 289.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency | 18 SEER |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | North, Southeast |
MGM96SE135D5XA Specifications:
| Model | MGM96SE135D5XA |
|---|---|
| UPC | 840255553346 |
| AHRI Number | 209832544 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 24.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 174.000000 |
| Primary Heating Capacity | 130,001 - 135,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
H4TXV03 Specifications:
| Model | H4TXV03 |
|---|---|
| UPC | 810512034703 |
| Product Height (in) | 3.7 |
| Product Length (in) | 9.7 |
| Product Width (in) | 5.8 |
| Weight (lbs) | 2.000000 |
