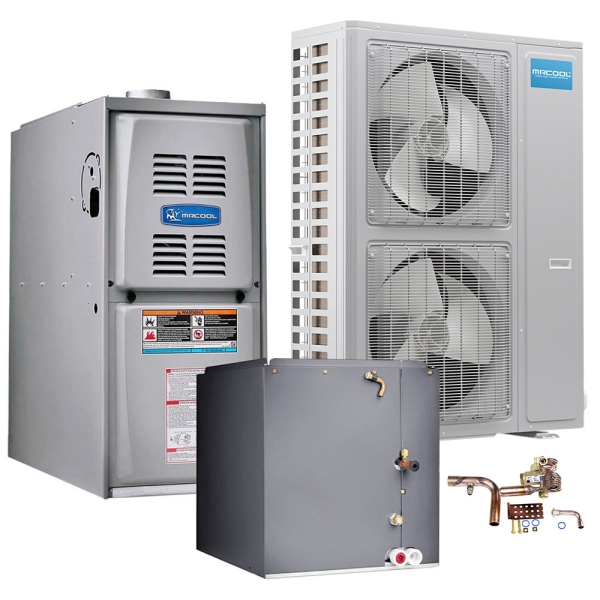

4 to 5 Ton 16 SEER2 90k BTU 80% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow

Item
HA24020
Models MDUCO18048060, MGM80SE090C5A, MCVP60DNPA, H4TXV03
Condition
New


Customize 4 to 5 Ton 16 SEER2 90k BTU 80% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow

* Required Fields

In stock

Ships Within 1-2 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    4 to 5 Ton MrCool Thermostatic Expansion Valve Kit
    Item: HA20017 Model: H4TXV03
    Qty: 1

    What's included

    • MrCool MDUCO18048060
    • MrCool MGM80SE090C5A
    • MrCool MCVP60DNPA
    • MrCool H4TXV03
    • Owner Manual
    • Lifetime Tech Support


    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser

    The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.

    • 4 Ton 18 SEER, 5 Ton 17 SEER
    • Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
    • Low Ambient Cooling Down to 39.2 Degrees F
    • Condensers Can Be Field Converted to smaller size using Dip Switch Setting
    • AHRI Certified & ETL listed
    • Slim Design
    • Quiet 55-58dB(a) Operation
    • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
    • Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
    • 10 Year Registered Limited Warranty

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model MUC184860V60G890
    UPC 840255583077
    Gas Furnace Efficiency 80%
    Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
    Bundle Cooling Capacity 4 Ton, 5 Ton
    Bundle Cooling Efficiency 19 SEER and Above
    Bundle Cooling Efficiency (SEER2) 16
    EER 12.2
    EER2 10.2
    Series Universal
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    MDUCO18048060 Specifications:

    More Information
    Model MDUCO18048060
    UPC 810063867492
    Product Height (in) 56.375
    Avg Coverage Area 2,000 - 2,500 Sq Ft
    Product Length (in) 37
    Compressor Inverter
    Product Width (in) 12.625
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Quick Connect, Flared, or Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 45 amps
    Weight (lbs) 289.000000
    Refrigerant R-410a
    Cooling Efficiency 18 SEER
    Series Universal
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility North, Southeast

    MGM80SE090C5A Specifications:

    More Information
    Model MGM80SE090C5A
    UPC 810512033645
    AHRI Number 204085900
    Product Height (in) 33
    Gas Furnace Efficiency 80%
    Product Length (in) 28.5
    Configuration Floor Mounted
    Product Width (in) 21
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 1,500 - 1,800 Sq Ft
    Blower Motor High Efficiency
    Cooling Compatibility (up to) 5 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe Metal
    Fuel Source Natural Gas
    Gas Valve Single Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 132.000000
    Primary Heating Capacity 85,001 - 90,000 BTU
    Series Signature
    System Application Type Central Split Systems
    Vent Connection 4 inches
    Voltage 120
    Warranty 10 Year Parts, Lifetime Heat Exchanger

    MCVP60DNPA Specifications:

    More Information
    Model MCVP60DNPA
    UPC 810512031238
    Product Height (in) 29.5
    Air Flow Direction Upflow
    Product Length (in) 21
    Cooling Capacity 5 Ton
    Product Width (in) 24.5
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 68.000000
    Refrigerant R-410a
    Series Signature
    Suction Line Size 7/8 inch
    Warranty 10 Year Parts

    H4TXV03 Specifications:

    More Information
    Model H4TXV03
    UPC 810512034703
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
