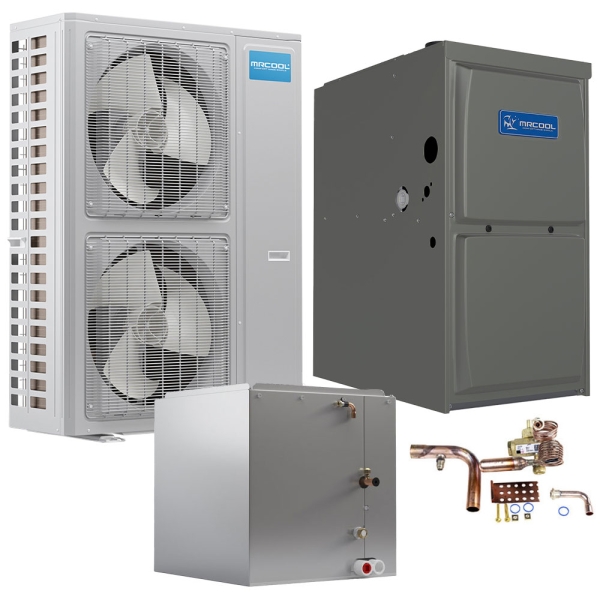

4 to 5 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow
Item
HA24132
Models MDUO18048060, MCVP49CNPA, MGM96SE090C4XA, H4TXV03
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
Item: HA18509 Model: MCVP49CNPA
Qty: 1
Item: HA22598 Model: MGM96SE090C4XA
Qty: 1
Living with the frustration of erratic climate control in your home shouldn't be the standard you accept. Amidst the abundance of options available on the market, the 4 to 5 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow comes out on top as the perfect solution for your 2000 to 2400 square foot space. With various components of this bundle achieving CSA certification, ETL listing, and AHRI certification, coupled with a SEER2 rating of 16 and an exceptional AFUE rating of 96%, this MrCool Universal Split System substantiates the integrity of every operational claim.
Equipped with a wide array of powerful features, the condenser in this 4 to 5 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow is poised to tackle any challenges. Operating at noise levels akin to background conversations in an office or restaurant, this MrCool Universal Condenser promises that your comfort transcends beyond temperature control. The gold fin anti-corrosion technology fortifies the condenser's durability, stopping corrosion over the years. Offering three distinct options such as flare connection, sweat braze connection, and the patented pre-charged no-vac quick connect line sets all within a compact design, this MrCool Split System is built to meet your unique demands.
Elevating performance to the next level, the gas furnace in the 4 to 5 Ton 16 SEER2 90k BTU 96% AFUE MrCool Universal Central Heat Pump & Gas Furnace Split System - Upflow blows its competitors out of the water. A sleek design shelters the single-stage gas valve, allowing it to deliver unrivaled results without occupying significant space. The robust construction and finish on the cabinet of this MrCool Gas Furnace ensure both quiet functionality and energy efficiency, optimizing your comfort from every direction. This versatile MrCool Universal system can even be adapted to work with LP gas after the incorporation of a conversion kit, giving you a simple way to ensure the system meets your demands. Featuring a rotatable draft inducer, you can breathe easy knowing that any remnant gasses in the system will be expelled outside of your home when the system turns on, further promising your safety.
Backed by a warranty encompassing 10 years on parts and a lifetime on the heat exchanger, why postpone your decision any longer? Secure this MrCool Universal Split System today and transform your home into the serene retreat you've been seeking.
4 Ton MrCool Signature Evaporator Coil - Vertical - 21" Cabinet
Manufacturer Highlights
This is a brand new 4 ton, R410A & R22 refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.
Standard Features
- Interlocking door assemblies and snug line sealgrommets to minimize air leakage
- All units UL Listed and AHRI Certified
- R22 & R410A compatible
- Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
- Foil-face insulation for easy cleaning
- All drain pans are compatible with UV lights
- Mobile home approved
- Superior service access to components, withtubing located at door split and foil-face insulation
- 10-Year Parts Limited Warranty
4 to 5 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser
The 4 to 5 Ton 17 SEER2 MrCool Universal Central Heat Pump Condenser is a cutting edge HVAC technology from an innovation leader. The sophisticated tech inside this unit both regulates the temperature of your home and controls the compressor motor speed simultaneously. It eliminates extreme fluctuations in the operating load and extends the unit’s life.
- 4 Ton Mode: 17 SEER2, 5 Ton Mode: 17 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Compatible with any third party air handler and thermostat including WiFi/Nest/Honeywell
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Factory Charged R410
- ETL and AHRI certified
| Model | MUH184860V49G990 |
|---|---|
| UPC | 840255584197 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| Bundle Cooling Efficiency (SEER2) | 17 |
| EER | 12.2 |
| EER2 | 10.2 |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Heat Pump Efficiency (HSPF2) | 9 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MDUO18048060 Specifications:
| Model | MDUO18048060 |
|---|---|
| UPC | 810512032938 |
| Product Height (in) | 56.3 |
| Avg Coverage Area | 2,000 - 2,500 Sq Ft |
| Product Length (in) | 12.6 |
| Compressor | Inverter |
| Product Width (in) | 37 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 10 |
| Heat Pump Efficiency (HSPF2) | 9 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 45 amps |
| Weight (lbs) | 328.000000 |
| Primary Heating Capacity | 48,000 - 60,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 18 SEER |
| Cooling Efficiency (SEER2) | 17 |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
MCVP49CNPA Specifications:
| Model | MCVP49CNPA |
|---|---|
| Product Height (in) | 29.5 |
| Air Flow Direction | Upflow |
| Product Length (in) | 22 |
| Cooling Capacity | 4 Ton |
| Product Width (in) | 21 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 70.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
MGM96SE090C4XA Specifications:
| Model | MGM96SE090C4XA |
|---|---|
| UPC | 840255553322 |
| AHRI Number | 209832542 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 152.000000 |
| Primary Heating Capacity | 85,001 - 90,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
H4TXV03 Specifications:
| Model | H4TXV03 |
|---|---|
| UPC | 810512034703 |
| Product Height (in) | 3.7 |
| Product Length (in) | 9.7 |
| Product Width (in) | 5.8 |
| Weight (lbs) | 2.000000 |
