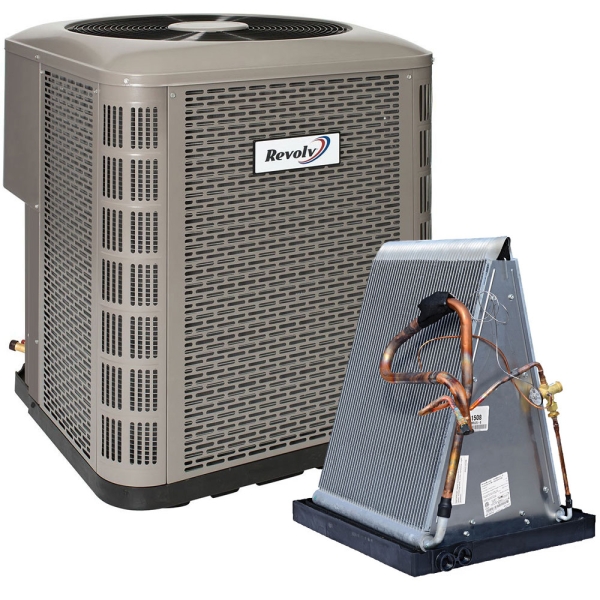

4 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System

Item
HA23776
Models RSA3ME4M1SN48, C84DAMX48U-B
Condition
New


Customize 4 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    4 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner Condenser
    Item: HA22692 Model: RSA3ME4M1SN48
    Qty: 1
    4 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23755 Model: C84DAMX48U-B
    Qty: 1

    Free Shipping

    What's included

    DOCUMENTS


    Are you weary of the unpredictable temperature fluctuations that ruin the ambiance of your mobile home? It's time to say goodbye to the exasperation and step confidently into consistency with the 4 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System. Holding both AHRI certification and ETL listing, a remarkable SEER2 rating of 13.8, and the strength to manage spaces spanning from 2000 to 2400 square feet, this Revolve AC allows you to luxuriate in the serenity created by unwavering climate control that extends into every corner of your motorhome. This reliability affords you the freedom to unwind in any area that beckons to you without the need to seek out the comfortable spots.

    Crafted with longevity in mind, the 4 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System leverages a thoughtfully selected range of features that safeguard the internal components. The sturdy cabinet of this Revolv AC is fashioned from galvanized steel and treated with a powder-paint finish, adding an aesthetic appeal while smoothing out any sharp edges. This coating can survive a 950-hour salt spray test when conducted according to ASTM standard B117, guaranteeing resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is a breeze and airflow is enhanced with the inclusion of a removable top grille assembly, a permanently lubricated motor, and accessible compressor and controls. The composite base pan not only suppresses operational noise but also bestows corrosion resistance to this robust yet lightweight package. This is further bolstered by a powder-coated wire guard and mesh hail guard, instilling confidence with the knowledge that the internals are shielded from sports equipment, inclement weather conditions, and so much more.

    The internal hardware of this 4 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System adheres to similarly admirable standards as those set by the cabinet. Safety features like a high-pressure switch constantly monitor system pressures, deftly handling any emerging issues without requiring your direct involvement while the auto-reset function removes another common cause for service calls. The full-service valves come pre-charged to work with up to 20 feet of tubing, granting straightforward access to the brass valves helping to reduce the time needed for setup while saving you money. The inclusion of all-aluminum coils brings even more corrosion resistance, extending the lifespan of this Revolv Condenser even further. With all these advantages available to you, why endure inconsistency any longer? Upgrade to this 4 Ton Revolv today and transform your mobile home into your personal sanctuary.

    More Information
    Model RSA3ME4M1SN48,C84DAMX48U-B
    UPC 663132442317
    AHRI Number 208404146
    Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
    Bundle Cooling Capacity 4 Ton
    Bundle Cooling Efficiency (SEER2) 13.8
    EER2 11.2
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSA3ME4M1SN48 Specifications:

    More Information
    Model RSA3ME4M1SN48
    UPC 663132442317
    Product Height (in) 34.75
    Avg Coverage Area 2,000 - 2,400 Sq Ft
    Product Length (in) 35.5
    Compressor Single Stage
    Product Width (in) 35.5
    Cooling Capacity 4 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 179.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility North

    C84DAMX48U-B Specifications:

    More Information
    Model C84DAMX48U-B
    UPC 663132448227
    Product Height (in) 25
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 4 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 33.500000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year
