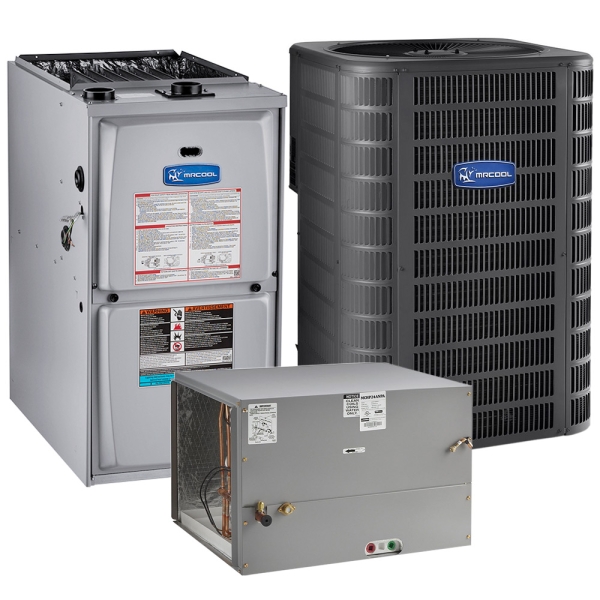

4 Ton 14.25 SEER 90k BTU 95% AFUE Variable Speed MrCool Signature Central Air Conditioner & Gas Split System - Horizontal

Item: HA20164
Models: MAC16048A, MGM95SE090C4XA, MCHP48CNPA
Condition: New


Availability: In stock

As low as: $2,736.00

Price as configured: $2,736.00

Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

* Required Fields

Overview

Product Features



MrCool MAC16048A

MrCool HA18187

Manufacturer Highlights

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 4 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides cooling (this is NOT a heat pump).

Standard Features

  • CoolGuard™ total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/ hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10 year limited warranty on compressor
  • Charged for 15 feet of line set
  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leakproof construction
  • All units ETL and ETLC approved and AHRI Certified
  • Internally protected against high temperaturemotor overload conditions

MrCool MGM95SE090C4XA

MrCool HA18227

Manufacturer Highlights

There's nothing like your first high gas bill of the season to make you dread a long, cold winter. If that's the boat you're in, you need to make a change. You need to invest in a powerful, high quality, and energy efficient heater like the 90k BTU 95% AFUE multi-positional gas furnace by MRCOOL. Unlike a lot of other furnace models, the MRCOOL 90k BTU 95% AFUE furnace wastes a minimal amount of fuel. This ensures most of your dollar is spent wisely rather than wasted, and that in turn means you have to spend less of those dollars to keep your house warm all winter long. Depending on the severity of winter weather where you live, that might mean the difference between a few dozen dollars or a few hundred dollars. So don't dread winter. Instead, choose the efficient, versatile and high quality heat of the MRCOOL. It's also protected by a 20 year Heat Exchanger Warranty, and a 10-Year Registered Parts Warranty.

Standard Features

  • Variable speed high efficiency blower motor
  • Self diagnostics saves last 10 fault codes regardless of power interruption
  • Standardized widths for easy coil fit
  • 10 year registered parts warranty
  • 20 year heat exchanger warranty
  • Aluminized steel inshot burners for smooth ignition
  • Complies with California's South Coast Air Quality
  • Optional propane conversion kit sold separately
  • Easily removable slide out blower design
  • Constant torque motor produces consistent airflow and even temperatures
  • Uses up to 1/3 less energy than a fixed-speed blower
  • Energy Star certified

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model MAC16048A,MGM95SE090C4XA,MCHP48CNPA
UPC 810512036332
AHRI Number 204102658
Gas Furnace Efficiency 95%
Avg Coverage Area 2,000 - 2,400 Sq Ft
Cooling Capacity 4 Ton
Cooling Efficiency 14 SEER
EER 12.5
Series Signature
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

Individual Item Specifications

MAC16048A Specifications:

Model MAC16048A
UPC 810512030989
Avg Coverage Area 2,000 - 2,400 Sq Ft
Compressor Single Stage
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Product Height 37
Product Length 28.25
Product Width 28.25
Refrigerant R-410a
Cooling Efficiency 16 SEER
Series Signature
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, 10 Year Compressor
Weight 255.0000
Region Compatibility Nationwide

MGM95SE090C4XA Specifications:

Model MGM95SE090C4XA
UPC 810512031337
AHRI Number 204085889
Gas Furnace Efficiency 95%
Air Flow Direction Horizontal, Upflow
Avg Coverage Area 1,500 - 1,800 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 4 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 85,001 - 90,000 BTU
Product Height 33
Product Length 28.5
Product Width 21
Series Signature
System Application Type Central Split Systems
Vent Connection 2 inches, 3 inches
Voltage 120
Warranty 10 Year Parts, 20 Year Heat Exchanger
Weight 145.0000

MCHP48CNPA Specifications:

Model MCHP48CNPA
UPC 810512031207
Air Flow Direction Horizontal
Cooling Capacity 4 Ton
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height 21
Product Length 26.5
Product Width 21.5
Refrigerant R-410a
Series Signature
Suction Line Size 7/8 inch
Warranty 10 Year Parts
Weight 59.0000
