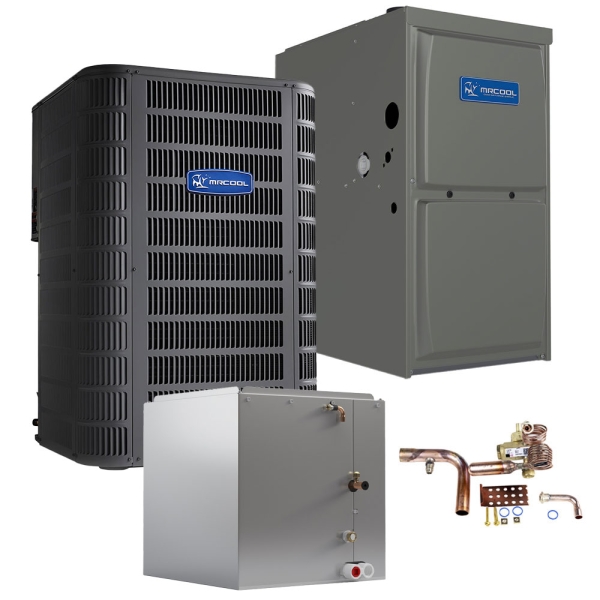

4 Ton 15 SEER 90k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Upflow
Shop All MRCOOL

Accessories
Description / Documents
It's time to bring comfort back into your home, and the 4 Ton 15 SEER 90k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Upflow is here to do the heavy lifting. With assorted parts of this MrCool AC & Furnace package proudly bearing AHRI certification, ETLC approval, and ETL listing, you can rest assured that every performance claim has been substantiated. Strong enough to manage the temperature in spaces spanning from 2000 to 2400 square feet while still achieving a SEER rating of 15, this 4 Ton MrCool system is ready to revamp your home from tip to tail.
Once you turn on the AC included in the 4 Ton 15 SEER 90k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Upflow, the sweltering summer heat will have no choice but to throw in the towel. This MrCool AC unit not only MrCools you down but also significantly reduces your utility costs through exceptional energy efficiency, accomplishing this with a factory-installed high-pressure switch, a corrosion-resistant aluminum condenser coil, and R-410A refrigerant. The sturdy cabinet of this MrCool Air Conditioner can persist in even the harshest weather conditions while still providing unfettered access to inner hardware thanks to conveniently placed access panels. Delivered to you pre-wired and pre-charged to work with up to 15 feet of line set, setup is a breeze.
No need to layer up under multiple coats this year, the furnace in the 4 Ton 15 SEER 90k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Upflow is here to keep you snug. This MrCool Gas Furnace operates with silent efficiency, utilizing aluminized steel inshot burners, a multi-speed high-efficiency blower, and a single-stage gas valve. The compact 33-inch profile of the cabinet features crimped non-welded edges and utility connections on either side, able to adapt to your home's layout. With an outstanding gas furnace efficiency rating of 96%, you'll discover that you need less energy for better results.
But this MrCool premium bundle doesn't stop there, this 4 Ton 15 SEER 90k BTU 96% AFUE MrCool Signature Central Air Conditioner & Gas Furnace Split System - Upflow also gives you an Evaporator Coil and Thermostatic Expansion Valve. The MrCool Expansion Valve provides you with more comprehensive control over refrigerant flow, helping to improve the system's longevity. The MrCool Evaporator Coil boasts one of the industry's lowest water retention drain pans and combines it with tubing located next to the door split to make servicing a breeze.
With all these advantages, plus a 10-year parts warranty, you have every ball in your court. Pass it over to this MrCool Split System and enjoy the victory of comfortable, consistent climate control in your home.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MAC16048A,MGM96SE090C4XA,MCVP60CNPA,H4TXV02 |
|---|---|
| UPC | 810512030989 |
| AHRI Number | 209872300 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency | 15 SEER |
| EER | 12.5 |
| Series | Signature |
| Region Compatibility | Nationwide |
MCVP60CNPA Specifications:
| Model | MCVP60CNPA |
|---|---|
| Product Height (in) | 31.5 |
| Air Flow Direction | Upflow |
| Product Length (in) | 22 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 73.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
