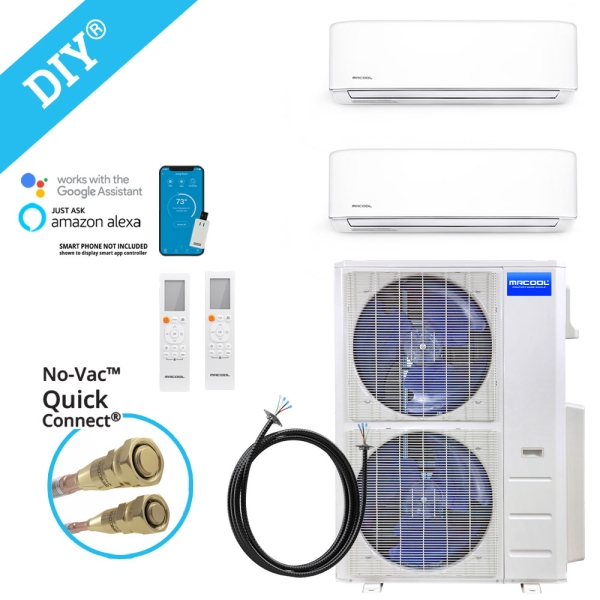

42k BTU 20.5 SEER Multi-Zone MrCool DIY 2 Zone Ductless Heat Pump Split System 4th Generation - 18k+24k
Shop All MRCOOL

Description / Documents
The 4th Generation MrCool DIY Multi-Zone 42k BTU 2 Zone Ductless Mini Split, an easy to install heating or cooling system, can heat or cool two areas in your home. Working as a heat pump, the system uses a reverse air conditioning process, pulling in air from outside in order to heat your spaces.
The 18,000 BTU air handler of the 4th Generation MrCool DIY Multi-Zone 42k BTU 2 Zone Ductless Mini Split can heat or cool a space between 750-900 square feet, while the 24,000 BTU handler can cover an area between 1,000-1,200 square feet.
Installing the 4th Generation MrCool DIY Multi-Zone 42k BTU 2 Zone Ductless Mini Split is easy to accomplish without an HVAC professional, special training, or specific tools. This is made easy with the Quick Connect line sets pre-charged with refrigerant R-410A, eliminating the need for a vacuum, and proving to be more eco-friendly than previously used refrigerants. In addition, the new DIYPRO cable provides excellent mechanical protection from the elements, animals, or yard tools without the need for an electrical conduit.
Keep up with how the MrCool DIY Ductless Mini Split operates with the easy-to-read LED display. It will show you the temperature of the unit along with any other alerts or troubleshooting codes. You can also monitor the unit with the SmartHVAC controller app. In addition, you can control the system with the same app, along with the included remote, or your Amazon Alexa or Google Assistant.
The 4th Generation MrCool DIY Multi-Zone 42k BTU 2 Zone Ductless Mini Split can quickly cool down a space with the manual mode, but if you want to maintain a comfortable temperature in your room, try the auto mode. You simply set the desired temperature and the unit will work to keep that consistent temperature in the space. The innovative DC inverter assists the unit to accomplish this in auto mode. Use the drying mode to dehumidify and prevent mildew accumulation.
Other useful features are the timer function and issue alerts. If you only need heating or cooling for a short period of time, take advantage of the timer which will run the MrCool DIY Ductless Mini Split for the amount of time needed before shutting off, saving energy and money. The clear display on the front panel of each air handler will let you know if an issue arises such as low refrigerant or to clean the air filters.
Maintaining the 4th Generation MrCool DIY Multi-Zone 42k BTU 2 Zone Ductless Mini Split is just as easy as the installation. Clean the outside of both the indoor and outdoor units with a damp or dry cloth, and the system will serve you longer.
No worries about your investment thanks to the 7-year compressor warranty and 5-year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM248HPW00C08 |
|---|---|
| UPC | 818545028201 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 11 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 2 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-18-HP-WMAH-230C25 Specifications:
| Model | DIY-18-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868512 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.610000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-24-HP-WMAH-230C25 Specifications:
| Model | DIY-24-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868536 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.270000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY25-3858 Specifications:
| Model | DIY25-3858 |
|---|---|
| UPC | 810035931053 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 15.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
