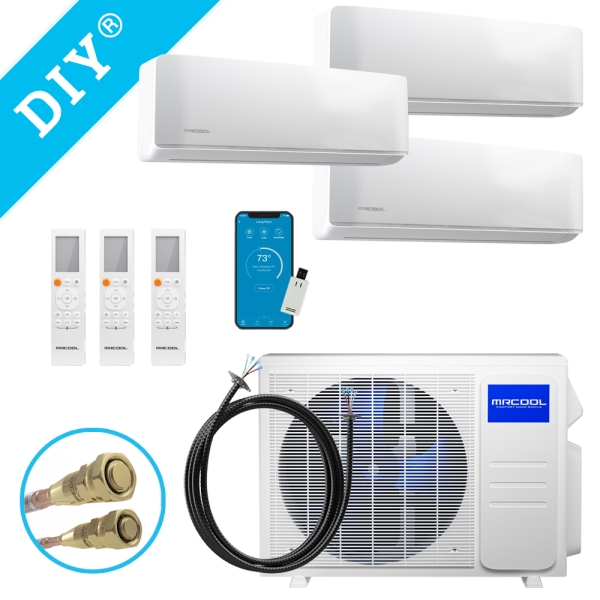

The highly efficient 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split is an excellent way to heat or cool three spaces in your home. It features a 48,000 BTU heating capacity with a 20.5 SEER. The 12,000 BTU air handlers can heat or cool between 500-600 square feet of space while the 18,000 BTU handler can cover between 750-900 square feet.
Accessories
Description / Documents

The highly efficient 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split is an excellent way to heat or cool three spaces in your home. It features a 48,000 BTU heating capacity with a 20.5 SEER. The 12,000 BTU air handlers can heat or cool between 500-600 square feet of space while the 18,000 BTU handler can cover between 750-900 square feet.

The 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split is completely DIY. You need no special tools, training, or HVAC assistance. This is thanks in part to the Quick Connect line set which comes precharged with R-410A refrigerant. Another feature of this easy installation is the new DIYPRO cable. It provides superior mechanical protection without the need for an electrical conduit.

You're in ultimate control of the 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split. Use the included remote, the SmartHVAC app, or use your Amazon Alexa or Google Assistant.

Take advantage of the many operational modes to completely customize your heating and cooling experience. Want to set it and forget it? Then auto mode is for you. Simply select your desired temperature, and the unit will maintain it until you change it again.

Conserving energy and saving money while you sleep is possible with the 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split. During sleep mode, the unit will run a total of 8 hours while you sleep. During the first 2 hours, the unit will adjust the temperature 2 degrees F each hour. It will then maintain the new temperature for the remaining time.

Other useful features include the timer mode. If you only need heating or cooling in your space for a short period of time, simply set the timer and the unit will shut off when the timer expires, saving you energy and money. If there happens to be a power outage, the unit will automatically return to its previous settings once power is restored.

The clear LED display on the front of the wall-mounted air handler of the 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split provides valuable information. Not only can you check the current temperature, but you can also be informed of any alerts or items that may need your attention. It will conveniently display troubleshooting codes for you to reference in the user manual.

Maintaining the MrCool DIY Ductless Mini Split is just as easy as the installation. Cleaning both the indoor and outdoor units simply requires a wipedown with a dry or damp cloth. The air handlers will alert you when the filters need cleaned or replaced.

You can feel secure in your purchase of the 4th Generation MrCool DIY Multi-Zone 42k BTU 3 Zone Ductless Mini Split thanks to the 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW00C28
UPC 840255500289
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
