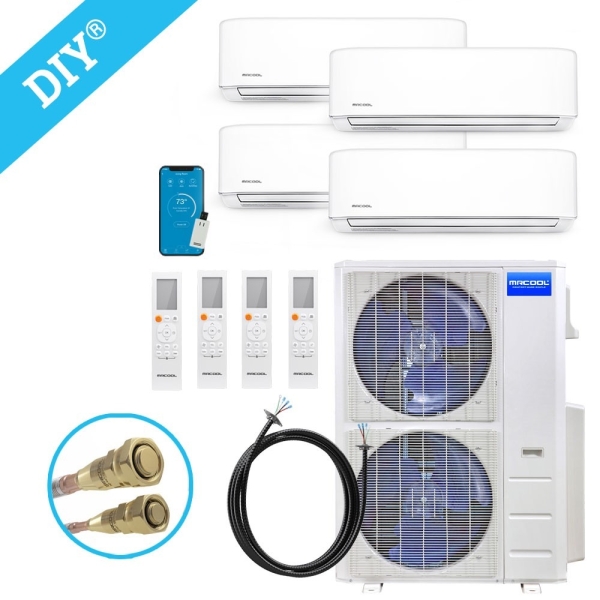

Heat four spaces at once with the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split. The outdoor heat pump for the system has a heating capacity of 36,000 BTU and is highly efficient with a SEER rating of 21.5. This is thanks in part to the variable speed DC inverter. The 9,000 BTU air handler can manage the room temperature of areas of approximately 375-450 square feet. The three 12,000 BTU air handlers can cover rooms between 500-600 square feet each.
Accessories
Description / Documents

Heat four spaces at once with the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split. The outdoor heat pump for the system has a heating capacity of 36,000 BTU and is highly efficient with a SEER rating of 21.5. This is thanks in part to the variable speed DC inverter. The 9,000 BTU air handler can manage the room temperature of areas of approximately 375-450 square feet. The three 12,000 BTU air handlers can cover rooms between 500-600 square feet each.

Installation of the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split is easy and doesn't require any special tools, training, or professional HVAC help. The key to the system's installation is the Quick Connect line set, which is pre-charged with an eco-friendly refrigerant. Another convenient installation feature is the new DIYPRO cable, which provides mechanical protection without the need for an electrical conduit.

You have the ultimate customizable control of the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split. You can control the system with the included remote, your Apple or Android device via the SmartHVAC app, or with your Amazon Alexa or Google Assistant devices.

To prevent mildew accumulation in the handlers from excess condensation, use the anti-mildew function. The air handler will continue to run after shutoff with a low air flow for 10 minutes to dry its interior with this feature. This will ensure the air you and your family breathe is healthy and clean.

There are many operational modes to choose from to make sure you're using the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split the best way for your lifestyle. In auto mode, the system handles your heating and cooling needs. All you have to do is set your desired temperature for each space, and the unit will work to maintain it.

There are many other great features with the MrCool DIY Ductless Mini Split that can enhance your heating or cooling experience. If the power goes out, the unit will automatically return to operation with the same settings once power is restored. Want to save money? To limit energy usage and save money on your next utility bill, take advantage of the timer function that allows you to use the system only for the amount of time you need it.

The 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split is designed to be easy to install, and that ease continues with maintenance of the system. You can clean each indoor and outdoor unit by simply wiping the equipment down with a dry or damp cloth. Plus, the air handler filters are easy to clean with just running water.

You can feel confident in your purchase thanks to the 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM448HPW05C84
UPC 840255532358
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 4
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
