45k BTU 20.5 SEER Multi-Zone MrCool DIY 4 Zone Ductless Heat Pump Split System 4th Generation - 9k+9k+9k+18k
Shop All MRCOOL

Accessories
Description / Documents

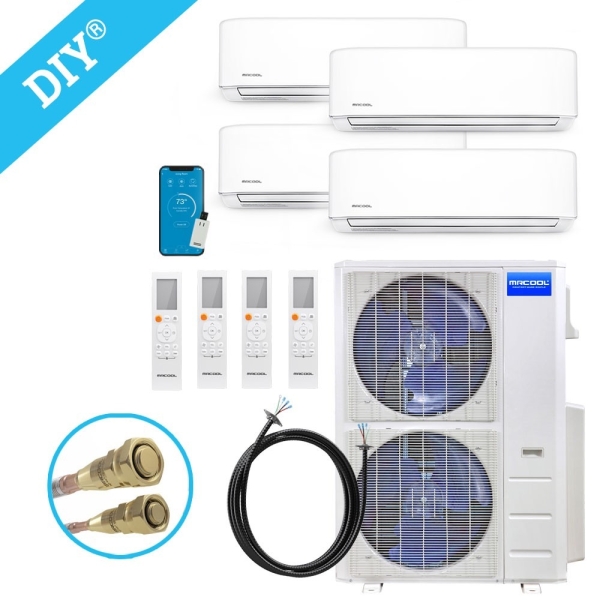

Keep four spaces at your preferred comfort level with the easy to install and highly efficient 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split. The outdoor heat pump in the system has a heating capacity of up to 48,000 BTU and has a high efficiency SEER rating of 20.5. This is thanks in part to the variable speed DC inverter. The three 9,000 BTU air handlers can cover a space around 375-450 square feet, while the 18,000 BTU air handler can heat or cool up to approximately 750-900 square feet.
The 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split can be installed easily without professional HVAC assistance, expensive tools, or special training. The key to the installation is the Quick Connect line set, which comes pre-charged with an eco-friendly refrigerant. Another useful feature that eases installation is the new DIYPRO cable, which provides excellent mechanical protection against animals, yard tools, and weather without an electrical conduit.
You have the ultimate control of the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split with a variety of options. Use the SmartHVAC app, your Google Assistant or Amazon Alexa or the included remote.
You have options with the MrCool DIY Ductless Mini Split that can enhance any environment. Reduce the risk of mildew in the air handlers with the anti-mildew function, which allows the air handler to run for 10 additional minutes at a low air flow after it is shut off to dry up accumulated condensation. If a power outage occurs, the system will automatically start operating with the previous mode and temperature once power returns, so you don't have to worry about resetting the settings. Limit your energy usage and go easy on your wallet with the timer function.
Keep the 4th Generation MrCool DIY Multi-Zone 45k BTU 4 Zone Ductless Mini Split in good working condition by providing the necessary maintenance yourself as needed. Attend to the troubleshooting codes that appear on the front display when alerts or reminders arise. Reference the codes yourself in the user manual. Cleaning both the indoor and outdoor units is as simple as wiping them down with a dry or damp cloth without the need for any special cleaning solutions. When the handlers alert you to clean the air filters, simply rinse them with water, allow to dry, and replace in the handler.
You can feel secure in your purchase thanks to the 7-year compressor warranty and the 5-year parts warranty.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM448HPW01C84 |
|---|---|
| UPC | 840255527590 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 11 |
| Heat Pump Efficiency (HSPF) | 11 |
| Series | DIY |
| Zones | 4 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230C25 Specifications:
| Model | DIY-09-HP-WMAH-230C25 |
|---|---|
| UPC | 810063869533 |
| Product Height (in) | 11.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.44 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.57 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 23.810000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
DIY-18-HP-WMAH-230C25 Specifications:
| Model | DIY-18-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868512 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.610000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
