This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.
Out of stock
Loading...

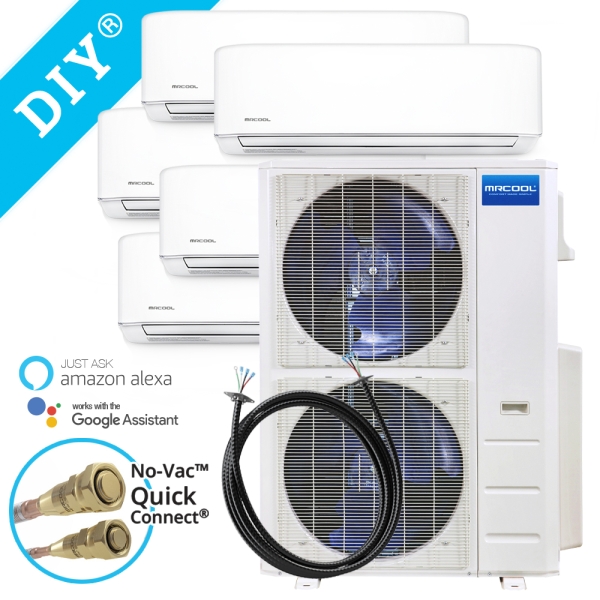

Feeling comfortable in your home should be a priority, and the MrCool DIY Multi-Zone 45k BTU 20.5 SEER 5 Zone Ductless Mini Split is the perfect solution to create that comfortable environment in up to 5 rooms in your home.
Accessories
Description / Documents

Feeling comfortable in your home should be a priority, and the MrCool DIY Multi-Zone 45k BTU 20.5 SEER 5 Zone Ductless Mini Split is the perfect solution to create that comfortable environment in up to 5 rooms in your home.

The MrCool DIY Multi-Zone 45k BTU 20.5 SEER 5 Zone Ductless Mini Split features a 20.5 SEER and includes a powerful 48k BTU heat pump condenser along with five 9k BTU wall-mounted air handlers. The efficiency of this system is attributed to the variable speed DC inverter. Each of the five 9k BTU air handlers can manage the room temperature in areas up to 375 square feet.

Designed to be installed by the average homeowner, the MrCool DIY Multi-Zone 45k BTU 20.5 SEER 5 Zone Ductless Mini Split requires no special tools, training, or professional assistance for installation. The included Quick Connect line set allows for this easy installation because it comes precharged with eco-friendly refrigerant R-410A. Also included is the DIYPRO cable that also aids in installation ease by providing mechanical protection against weather, animals, and yard tools without needing electrical conduit.

Controlling this system is as easy as the installation. It can be controlled with the convenient included remote, the SmartHVAC app on your Apple or Android device, or go completely hands-free with your Amazon Alexa or Google Assistant.

The MrCool DIY Ductless Mini Split has many operational modes to customize your experience and create your most preferred environment. The easy to use Auto mode allows you to set your desired temperature and let the system automatically maintain it without any other effort on your part. The Sleep mode and Timer function help save excess energy. During Sleep mode, the system will run for 8 hours. During the first two hours, the temperature will increase or decrease 2 degrees F depending whether you're heating or cooling. It will then maintain that new temperature for the remaining 6 hours so you save energy while you sleep. You can use the timer function to set the system to run for a certain period of time before shutting off so you aren't using the system and extra energy when it isn't necessary.

If any issue arises, the LED display will show a troubleshooting code for you to reference in the user manual and likely address the problem yourself before calling a professional technician. Maintenance is also easy. Just wipe down both the indoor and outdoor equipment with a dry or damp cloth and rinse the air handler filters with water.

Feel confident in the longevity of the MrCool DIY Ductless Mini Split thanks to the standard 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM548HPW00C210
UPC 840255545846
AHRI Number 208552972
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 5
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
