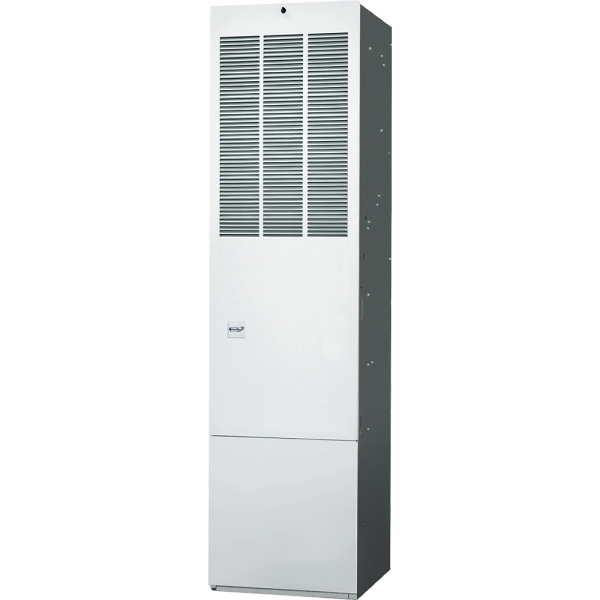

Name: 45k BTU 95% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow
Brand: Revolv
SKU: HA13192
Price: 1418.35 USD
Availability: OutOfStock

✓ Link Copied!

Shop All REVOLV

Item:

HA13192

Model:

RG7D45C4

Condition:

New

45k-btu-95-afue-multi-speed-revolv-mobile-home-gas-furnace-with-coil-cabinet-downflow-ha13192-01.3548

This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

Recommended Alternative:

Brand Revolv

90k BTU 80% AFUE Multi Speed Revolv Gas Furnace - Downflow

$1,716.19

Out of stock

Let me know when it’s back in stock:

The multi-speed Revolv gas furnace is highly efficient at 95% AFUE and can be operated with a variety of speeds. It is easy to maintain thanks to the sealed bearings on the motors and it can be vented vertically or horizontally based on your preference. The gas furnace with the coil cabinet from Revolv is taller than the standard gas furnace.

Description / Documents

Additional Documents

From the Manufacturer

RG7 Brochure

RG7 Installation Manual

RG7 Owner Manual

RG7 Specification Manual

RG7 Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	RG7D45C4
UPC	663132332656
AHRI Number	8862051
Product Height (in)	76
Gas Furnace Efficiency	95%
Product Length (in)	23.75
Product Width (in)	19.75
Air Flow Direction	Downflow
Avg Coverage Area	2,000 - 2,400 Sq Ft
Blower Motor	Multi Speed
Cooling Compatibility (up to)	4 Ton
Electrical Phase	1-Phase
Exhaust Pipe	PVC
Fuel Source	Natural Gas
Gas Valve	Single Stage
Max Overcurrent Protection	20 amps
Weight (lbs)	174.000000
Primary Heating Capacity	40,001 - 45,000 BTU
System Application Type	Mobile Home Systems
Voltage	120
Warranty	2 Year Parts, 10 Year Heat Exchanger
