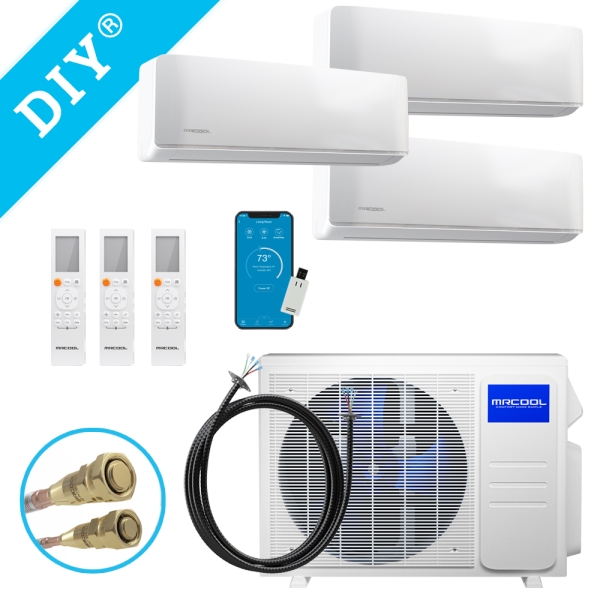

Cool, heat, or ultra-dehumidify three separate spaces at once after installing the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split. The outdoor heat pump unit is capable of heating up to 48,000 BTU and has a high efficiency SEER rating of 20.5. This is thanks in part to the variable speed DC inverter. Each of the three 18k BTU air handlers have the capability to heat or cool spaces between 750-900 square feet each.
Accessories
Description / Documents

Cool, heat, or ultra-dehumidify three separate spaces at once after installing the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split. The outdoor heat pump unit is capable of heating up to 48,000 BTU and has a high efficiency SEER rating of 20.5. This is thanks in part to the variable speed DC inverter. Each of the three 18k BTU air handlers have the capability to heat or cool spaces between 750-900 square feet each.

The 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split was created for the average homeowner to install themselves. You won't need any special tools, training, or professional assistance. This is thanks to the Quick Connect line set that comes precharged with refrigerant. The new DIYPRO cable also aids in the installation ease by providing excellent mechanical protection without the need for an electrical conduit.

You can use one of many convenient options to control the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split. Use the included remote, the SmartHVAC app on your Apple or Android device, or control it completely hands-free with your Google Assistant or Amazon Alexa.

The auto mode is the most convenient option for you if you want to just set it and forget it. With the auto mode, simply set your desired temperature and the system will automatically adjust to maintain that comfort level without any adjustments on your part.

Trust that the air you breathe is fresh and clean with the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split. After shutoff in cool or dry modes, the air handlers will run an additional 10 minutes with a low fan. This will eliminate any condensation left in the unit that could lead to mold or mildew production.

The MrCool DIY Ductless Mini Split has many other features. With the timer feature, you can set a specific duration you'd like your space to be heated or cooled before it shuts off. This prevents you from using energy when unnecessary. If a power outage occurs, when power is restored, the unit will automatically return to the settings you prefer.

You can feel confident in your purchase of the 4th Generation MrCool DIY Multi-Zone 48k BTU 3 Zone Ductless Mini Split thanks to the 7-year compressor warranty and the 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW03C28
UPC 840255542296
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 11
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
