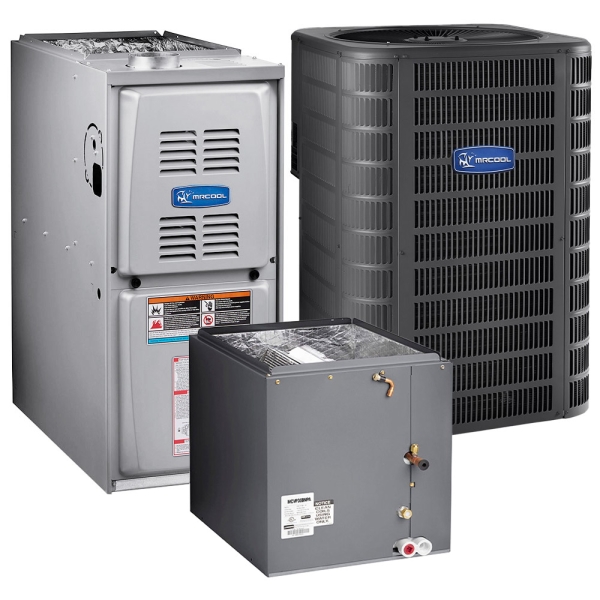

5 Ton 14 SEER 90k BTU 80% AFUE Variable Speed MrCool Signature Central Air Conditioner & Gas Split System - Upflow
Shop All MRCOOL
Item:
HA20170
Model:
MAC16060A,MGM80SE090C5A,MCVP60CNPA
Condition:
New
Out of stock
Loading...
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MAC16060A,MGM80SE090C5A,MCVP60CNPA |
|---|---|
| UPC | 810512036394 |
| AHRI Number | 204102676 |
| Gas Furnace Efficiency | 80% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency | 14 SEER |
| EER | 12.5 |
| Series | Signature |
| Region Compatibility | North |
MGM80SE090C5A Specifications:
| Model | MGM80SE090C5A |
|---|---|
| UPC | 810512033645 |
| AHRI Number | 204085900 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 132.000000 |
| Primary Heating Capacity | 85,001 - 90,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
MCVP60CNPA Specifications:
| Model | MCVP60CNPA |
|---|---|
| Product Height (in) | 31.5 |
| Air Flow Direction | Upflow |
| Product Length (in) | 22 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21 |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 73.000000 |
| Refrigerant | R-410a |
| Series | Signature |
| Suction Line Size | 7/8 inch |
