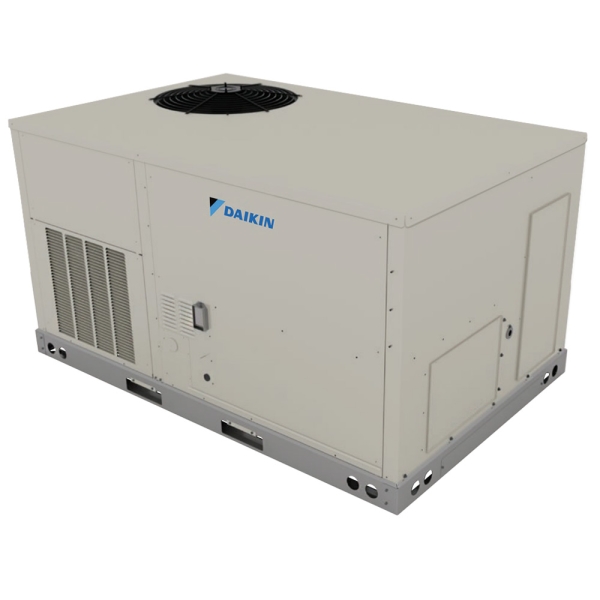

5 Ton 15 SEER 140k BTU Daikin Commercial Gas & Electric Package Unit - Multiposition - 3 Phase
DAIKIN

Accessories
Description / Documents
Are you ready to stop compromising when it comes to the performance of your company's HVAC system? Retire your current model and upgrade to the 5 Ton 15 SEER 140k BTU Daikin Commercial Air Conditioner & Gas Package Unit - Multiposition - 3 Phase. Proudly boasting ETL listing, AHRI certification, and containing a seal that meets the ASHRAE standard 90.1 requirements, this Daikin Package Unit shows a commitment to substantiating any and all functional claims. Employing R-410A chlorine-free refrigerant, your business gains the advantages of improved heat transfer, elevated system performance, and enhanced cooling capacity. With a SEER2 rating of 15, you can rest assured that this 5 Ton Daikin unit can effortlessly and effectively regulate the temperature in your 2500 to 3000 square foot space.
The cabinet built for the 5 Ton 15 SEER 140k BTU Daikin Commercial Air Conditioner & Gas Package Unit - Multiposition - 3 Phase is engineered to shield the inner workings from harsh weather conditions and other potential hazards. This rooftop unit is the ideal solution for both new construction and retrofit projects, providing easy accessibility to the filters with tool-less access for easy servicing or troubleshooting. Removing the need for a curb adapter on most installations, you save time and money during setup. The interior surface of the indoor air section is fully insulated using foil face fiberglass insulation to prevent problems like condensation buildup and other thermal losses, omitting exposed filter fibers from a means to get into the airstream. With one inch raised flanged edges around the supply and return, you take advantage of a streamlined installation for the duct connections.
Crafted for performance, the 5 Ton 15 SEER 140k BTU Daikin Commercial Air Conditioner & Gas Package Unit - Multiposition - 3 Phase sports an array of impressive hardware. High performance, low noise scroll compressors are included to match the required total load of this Daikin Package Unit. A two-stage scroll compressor picks up any slack, designed to kick in for partial load applications. Factory-mounted on rubber grommets for vibration isolation, your company gains these powerful performance upgrades without the loud, intrusive HVAC sounds that ruin the ambiance of many businesses. The supply fan wheel is continuously welded to the hub plate and end rim, guaranteeing long-lasting, reliable operation. With these benefits at your disposal, why hesitate? The time has come to make the change you've been delaying and level up the comfort level of your business.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DRG0603DH00001S |
|---|---|
| UPC | 658515776035 |
| Product Height (in) | 42.812 |
| Gas Furnace Efficiency | 81% |
| Product Length (in) | 73.94 |
| Air Flow Direction | Downflow, Horizontal |
| Product Width (in) | 48.19 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | High Efficiency |
| Compressor | Single Stage |
| Cooling Capacity | 5 Ton |
| EER | 12.1 |
| Electrical Phase | 3-Phase |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 45 amps |
| Weight (lbs) | 713.000000 |
| Primary Heating Capacity | 135,001 - 140,000 BTU |
| Cooling Efficiency | 15 SEER |
| Voltage | 240 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
| Region Compatibility | Nationwide |
