This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Overview

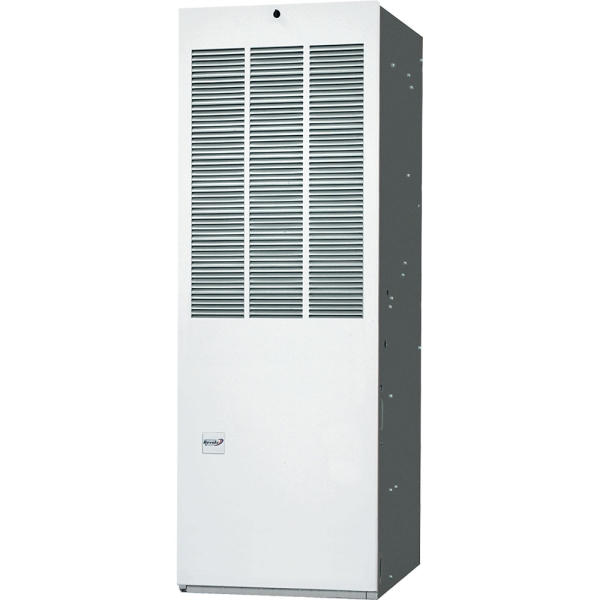

Revolv RG1D56N3 vents directly to the outdoors and draws in fresh air for combustion through a separately purchased roof jack. All Revolv furnaces are designed specifically for manufactured and modular homes. Features such as hot surface ignition, sealed bearings on the motors, reliable controllers, and a clean enamel finish means these units are made to last. RG1 models can be paired with either air conditioners or heat pumps, up to 4 tons or 3.5 tons.
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
| Model | RG1D56N3 |
|---|---|
| UPC | 663132332519 |
| AHRI Number | 8862024 |
| Gas Furnace Efficiency | 80% |
| Air Flow Direction | Downflow |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| Product Height (in) | 56 |
| Product Length (in) | 23.75 |
| Product Width (in) | 19.88 |
| System Application Type | Mobile Home Systems |
| Voltage | 120 |
| Warranty | 2 Year Parts, 10 Year Heat Exchanger |
| Weight (lbs) | 152.0000 |
| California Residents | see Prop 65 WARNING |
