Overview

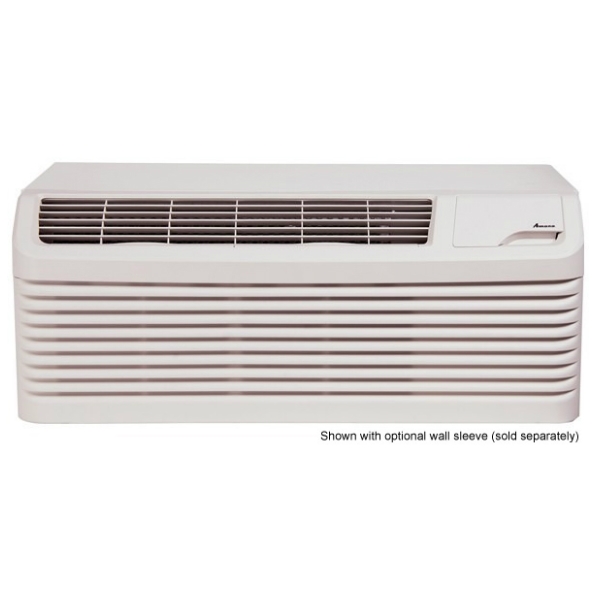

The Amana Packaged Terminal Heat Pump (PTHP) is an all-in-one HVAC solution for ductless, single-zone installations. This is a dual operation, heating and cooling system optimized for 11.7 EER and 3.4 COP performance. It can operate as low as 24 degrees Fahrenheit, uses only chlorine-free R-410A refrigerant, and is 100% run-tested before it leaves the factory floor. It is AHRI certified, and warrantied for up to 5 years after purchase and installation.
Manufacturer Highlights
The Amana® PTH Series Heat Pump offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing, easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Energy Efficiencies: With EERs up to 11.7 and COPs up to 3.4, the unit's high efficiencies may qualify you for many of the rebates offered by electrical power companies.
- Quiet Operation: The PTAC has been redesigned to be the quietest PTAC ever built. The unit's state-of-the-art design and construction provide a quiet environment
- Two fan motors (indoor/outdoor)
- Indoor tangential fan for quiet operation
- STC of 28
- Assembled in the USA for 30 years
- Increased Dehumidification Capacity: Maintain lower humidity levels in rooms while cooling them without the need for expensive add-ons
- Seven-Button Touch Pad: Provides complete control to guests for in-room comfort while maintaining energy efficiency.
- 7-5/8" Unit Front Depth: Enhance valuable room space with the slim unit front
- Removable Condenser Shroud: Allows easy access to enable regular cleaning of coils, which is essential to maintain unit efficiency and protect the compressor for long unit life.
- Easy Pull-Out Filters: Our filters are washable and easy to maintain.
- Filter Dryer for Sealed System Refrigerant
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
| Model | PTH093G35AXXX |
|---|---|
| UPC | 663051499065 |
| AHRI Number | 8028278 |
| Auxiliary Heating Capacity | 10,001 - 15,000 BTU |
| Avg Coverage Area | Less than 500 Sq Ft |
| Cooling Capacity | Less than 1 Ton |
| EER | 12 |
| Electrical Phase | 1-Phase |
| Max Overcurrent Protection | 20 amps |
| Primary Heating Capacity | 5,000 - 10,000 BTU |
| Product Height (in) | 16.0625 |
| Product Length (in) | 14.125 |
| Product Width (in) | 42 |
| Voltage | 240 |
| Warranty | 5 Year Parts, 1 Year Unit Replacement |
| Weight (lbs) | 122.0000 |
| Region Compatibility | Nationwide |
| Popular Applications | Apartment, Bedroom, Duplex, Garage, Guest Room, Hotel Room |
| California Residents | see Prop 65 WARNING |
