This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

9k BTU 18 SEER MrCool Advantage Ductless Heat Pump Split System 3rd Generation - 230v

Item: HA18427
Models: A-09-HP-C-230B, A-09-HP-WMAH-230B
Condition: New
Third time is definitely a charm with this latest generation of MrCool Advantage ductless split system! With extreme cooling capability and all of the industry’s finest features, the 9k BTU 18 SEER 3rd Generation MrCool Advantage Ductless Heat Pump Split System is a great choice for many households.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

Contractors

Up to 30% Off - Call for Info

Call 270-575-9595 Now

What's Included

What customers are saying...



Overview

Third time is definitely a charm with this latest generation of MrCool Advantage ductless split system! With extreme cooling capability and all of the industry’s finest features, the 9k BTU 18 SEER 3rd Generation MrCool Advantage Ductless Heat Pump Split System is a great choice for many households.

At an 18 SEER rating, this is a medium efficiency level system that has the capability of lowering your monthly bills if you are upgrading from an older model or less efficient system. It also helps reduce your carbon footprint thanks to its energy rating and use of R410A environmentally friendly refrigerant.

Features of the 3rd Generation MrCool Advantage ductless mini split include high performance capability and the ability to cool or warm your room within moments after the unit is turned on. It is simple to setup and install and is compact in design. As an added bonus, this system can collaborate with your Google Assist or Amazon Alexa voice services without the need for a remote for most settings.

This 3rd Generation MrCool Advantage ductless mini split also comes with a digital remote and the capability of connecting with the MrCool app on your smartphone. Choose between a variety of settings from sleep mode to energy saving mode. You can also use the fan only option as needed.

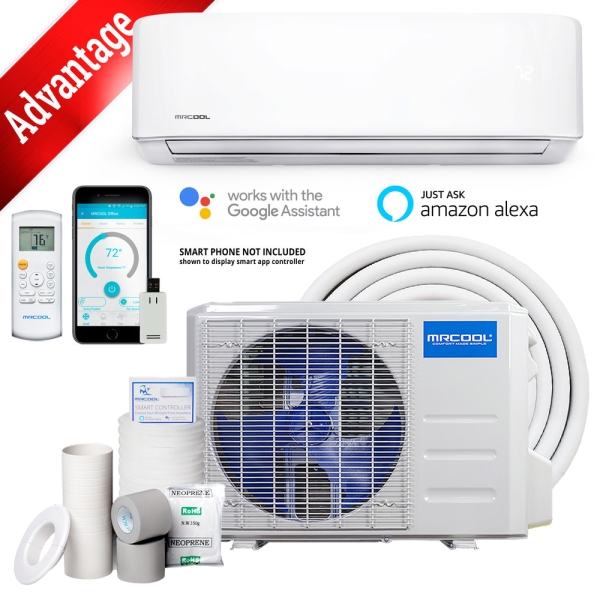

This system comes with a wall mount indoor air handler, outdoor condenser, 16 ft. of refrigerant lines, control wire, 6 ft. of condensate drain hose and a wireless remote control for an easy ductless mini split installation. Additionally, it is packed with a limited parts warranty making this a sound investment for your next ductless mini split system at an affordable price.

  • 16 ft. install kit includes: copper tubing, control wire, 6 ft. drain hose, wall sleeve.
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions.
  • Low ambient cooling: cooling down to 5 degrees F - this feature makes the Mrcool Advantage the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.
  • Works with Google Assist & Amazon Alexa

This system is meant to be installed by an HVAC technician.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model A-09-HP-230B
UPC 810512031542
AHRI Number 202918798
Bundle Avg Coverage Area Less than 500 Sq Ft
Bundle Cooling Capacity Less than 1 Ton
Bundle Cooling Efficiency 18 SEER
Heat Pump Efficiency (HSPF) 9
Series Advantage
Zones 1
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

A-09-HP-C-230B Specifications:

Model A-09-HP-C-230B
UPC 810512031580
Avg Coverage Area Less than 500 Sq Ft
Compressor Inverter
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 9
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Primary Heating Capacity 5,000 - 10,000 BTU
Product Height (in) 22
Product Length (in) 12
Product Width (in) 30
Cooling Efficiency 18 SEER
Series Advantage
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 2 Year Parts, 1 Year Compressor
Weight (lbs) 64.0000
Region Compatibility Nationwide

A-09-HP-WMAH-230B Specifications:

Model A-09-HP-WMAH-230B
UPC 810512031597
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11.42
Product Length (in) 7.36
Product Width (in) 28.43
Series Advantage
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 2 Year Parts
Weight (lbs) 17.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Is this a DIY setup?
I bought this package (9K BTU) and can't remember how many square feet @ 8'-0" ceilings it will condition, is it 500 SF?
After doing some research I realize that I will need a vacuum pump and gauges to install this unit and that is okay. I have lots of time to put a vacuum on it and let it sit for awhile to see if it holds. Power is not a problem either.
Four questions:
1) Is the unit charged with refrigerant?
2) If charged and I use 16' lineset will I need more refrigerant?
3) Is the warranty valid if I DIY installation?
4) I would like the WiFi option to control, is that available on this unit?
What is the back order estimated for this unit?
Can the be mounted on a cement pad or is this only a wall mount? The title says "wall mount." Appreciate the clarification.
How cold will the heat pump work? Also does it have or can I install auxiliary heat
I have a number of duplex rental units and am considering your Item #HA18427. I have a number of questions before I order the first unit.
1. Is this unit available as a Scratch & Dent?
2. The photo on your description page shows the following items:
Compressor, Wall Unit, White Line set, Electric Whip, Remote, and miscellaneous instillation items.

Can you please confirm what items are included in this package? I am ready to order as soon as I receive your reply.

Best regards, Joe

Joe Ciccone
ciccone rental properties, llc
Oriental, NC 28571
Is this unit charged? Or do I need to have a hvac tech to charge the whole system before use?
is the advantage system charged?
How do I know what size do I purchase and do you have install people how much is the cost of that? This is for my garage and I need it cold it’s a home gym in the garage
The room I want to cool and heat is 11 x 12 with an 8' ceiling, so it appears your 9K will suite my current needs. I want to make sure I understand; does model HA18427 serve both as an air conditioner and a heater? Also; I've read that sometime in the mid 2020's they will be phasing out 410-A refrigerant and bringing in R-32. Will you be carrying products with this new refrigerant or is that too far off yet?
Thank you.
I have a 288 sq.ft. room with a cathedral ceiling with a height of 11' at the peak and 8' on the walls. Will this unit be sufficient for my space??
Should you use a surge protector on any of your systems?
What is the setting range for the remote control? This will be in an area that is not used very often and I would like to keep minimal heat and ac running during times not used, example winter set point at 40-45 and summer 80-85.
is this the DIY one ? do I have to have someone charge the system?
Run by electric or propane?
Hello, I would like to know what size wire and breaker is needed for the 9 btu unit? Thanks Steve
Can I get the unit with longer copper lines?
How can I tell the difference between the DIY Mr. Cools and the ones that need a professional install?
Can it be installed through a brick wall?
Is this a DIY complete unit and can I purchase a longer pressurized hose?
I am really more interested in the Heat area, what is the lowest outside temperature that this unit is able to produce at?
Have a 300 square ft. Room. Interested in your DIY kit with preloaded lines
Hello,
I need that unit with 25 ft install kit.
Thanks,
Marcos Ruiz
Is this a dehumidifier as well?
Rebates available?
can you sell it with a 25 foot line set? 16 ft to short
What amp size breaker does this unit require?
Thanks
What type of refrigerant Dose it take
What is the difference between DYI and Advantage units?
Will this heat and cool a 16' x12' cabin?
how many square feet will this unit cover?
does the 9K system come in a DIY kit? I didn't see the DIY in the name.
Can I run a 50” line ?
How do you size the unit for the space? Like a garage that’s 24x24. Heat and cool.
Can the MrCool air handler be installed in the corner on the floor vs on a wall?
hello , ok i can install this unit , my question is do i need to place a vacuum on system before releasing refrigeration , and will need a vacuum pump correct?
Where are the do it yourself install systems and do youi ship to Utah?
So this is not a DIY unit?
I'm confused. I want a mini split HVAC, wall-mounted with outside condenser, remote, kit and bracket to cool/heat a 200 sq. ft. room. Is that what this is? I want to keep this simple. I'm replacing a wall-mounted AC unit that just plugs in, and I want both air and heat, with condenser outside. Thanks for your help.
Is this a heating and cooling unit, would it be ok for a garage roughly 400 sq. ft?
Where do I get the electric from to run the unit?
Dose Mr Cool make a 9000 btu DIY installation system
How much would shipping be to

23 11th Ave
Inman, KS 67546

THX,
Kerry
measurment of diy split inside wall unit
Hello, my name is Steve. I'm looking at purchasing the MrCool 9k 18 seer split system I need a 35 foot hoses assembly. Can I get a quote please. Thanks


Does this come with everything you need to set up?
are any of your split systems 120 volt
