There’s no reason your home shouldn’t be your solace from the conditions outside no matter the time of the year. If you’re tired of outside making its way in and ruining your ambiance, turn to the MrCool DIY Multi Zone Mini Split 39k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B to give you the results you’ve been looking for. Supported by ETL and UL listings, as well as AHRI and Energy Star certifications, this MrCool Mini Split passed intensive third-party evaluations to prove the legitimacy of every operational, efficiency, and safety claim. Giving you reliably conditioned air in your 1500 to 1800 square foot space, this 39k BTU MrCool AC & Heat Pump is exactly what you need to level up your living standard.

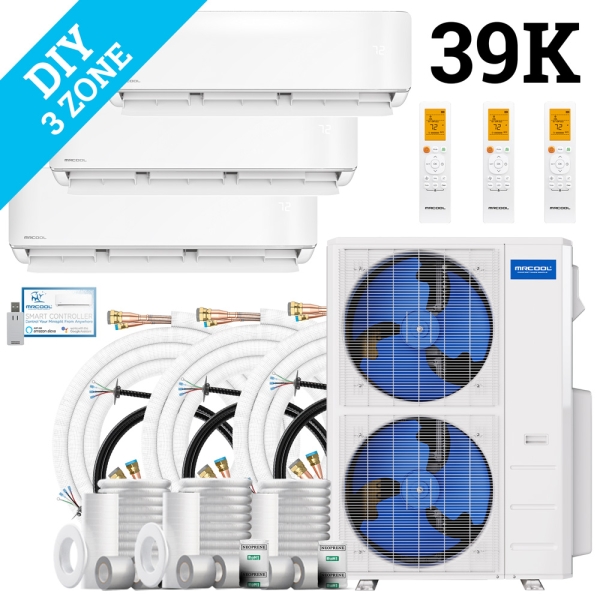

This Bundle Includes:

Accessories
Description / Documents

There’s no reason your home shouldn’t be your solace from the conditions outside no matter the time of the year. If you’re tired of outside making its way in and ruining your ambiance, turn to the MrCool DIY Multi Zone Mini Split 39k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B to give you the results you’ve been looking for. Supported by ETL and UL listings, as well as AHRI and Energy Star certifications, this MrCool Mini Split passed intensive third-party evaluations to prove the legitimacy of every operational, efficiency, and safety claim. Giving you reliably conditioned air in your 1500 to 1800 square foot space, this 39k BTU MrCool AC & Heat Pump is exactly what you need to level up your living standard.

Dedicated to conserving finances at every stage of the process, the MrCool DIY Multi Zone Mini Split 39k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B starts out strong by eliminating the cost of a licensed technician from the setup process. Coming with all the DIY line sets you need already precharged with R454B refrigerant as well as compatibility with the DIYPro armored cable that hooks up the electronics between the indoor and outdoor units, this MrCool AC & Heat Pump keeps the task of installation as straightforward as possible. Equipped with gold fin condensers that safeguard the inner workings from corrosion, this MrCool Heat Pump is even a great fit for coastal climates and homes near industrial facilities that tend to rapidly corrode or wear down outdoor technology.

Maximizing the amount of comfort you enjoy in each individual zone, the MrCool DIY Multi Zone Mini Split 39k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B puts the tools to tailor your climate in the palm of your hand. All three air handlers in this bundle include the Follow Me function, a setting that will use built-in sensors in the remote control to monitor the conditions in the room and adjust the airflow speed, strength, and direction as necessary to maximize your comfort. From automatic adaptation to using the smartphone app to change up your preferences from another room or across the globe, this MrCool Mini Split gives you every opportunity to guarantee top-tier comfort no matter the situation.

Adding a default warranty that covers 5 years on parts and 7 years on the compressor to the mix, with the option to enroll in the MrCool Care Kit Program, why would you choose to put off your upgrade another moment? Snag this 5th Generation 39k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with an indoor air handler and line set per zone today.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW03D
AHRI Number 216032595
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 21.8
Heat Pump Efficiency (HSPF2) 10
Series DIY
Zones 3
Region Compatibility Nationwide

DIY-MULTI6-48HP230D-O Specifications:

Model DIY-MULTI6-48HP230D-O
UPC 840255587471
AHRI Number 216032595
Product Height (in) 52.5
Avg Coverage Area 2,000 - 2,400 Sq Ft
Product Length (in) 16.3
Compressor Inverter
Product Width (in) 37.5
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 10
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 223.800000
Primary Heating Capacity 45,001 - 50,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 21.8
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-18-HP-WMAH-230D25-O Specifications:

Model DIY-18-HP-WMAH-230D25-O
UPC 840255587044
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 54.010000
Refrigerant R-454b
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIYCASSETTE18HP-230D25-O Specifications:

Model DIYCASSETTE18HP-230D25-O
UPC 840255587525
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-24-HP-WMAH-230D25-O Specifications:

Model DIY-24-HP-WMAH-230D25-O
UPC 840255587051
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 54.670000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIY-24-HP-MUAH-230D25-O Specifications:

Model DIY-24-HP-MUAH-230D25-O
UPC 840255588409
Product Height (in) 45
Configuration Floor Mounted
Product Length (in) 21
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 17.5
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 104.700000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1412-O Specifications:

Model DIY16-1412-O
UPC 840255587075
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 13.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-3858-O Specifications:

Model DIY16-3858-O
UPC 840255587082
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 19.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1412-O Specifications:

Model DIY25-1412-O
UPC 840255587099
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-3858-O Specifications:

Model DIY25-3858-O
UPC 840255587112
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 19.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1412C-O Specifications:

Model DIY35-1412C-O
UPC 840255587136
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 23.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-3858C-O Specifications:

Model DIY35-3858C-O
UPC 840255587143
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 23.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1412C-O Specifications:

Model DIY50-1412C-O
UPC 840255587150
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 33.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-3858C-O Specifications:

Model DIY50-3858C-O
UPC 840255587167
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 37.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

Ways to Save as You Shop

IWAE Insiders ProgramIWAE Insiders Program
IWAEPros ProgramIWAEPros Program
Financing with IWAEFinancing with IWAE
IWAE Rebate FinderIWAE Rebate Finder
Labor Warranty at IWAELabor Warranty at IWAE

Related Content View All >

Loading...
Loading...
