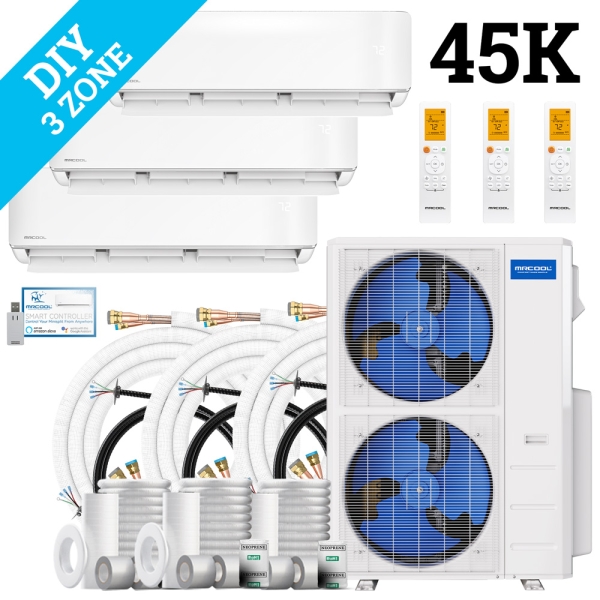

MrCool DIY Multi Zone Mini Split 45k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B
Shop All MRCOOL

Accessories
Description / Documents
Ensuring that your home stays comfortable in every season shouldn’t be a challenge for you or your HVAC system. If you’re tired of inadequate climate control, turn to the MrCool DIY Multi Zone Mini Split 45k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B for a solution that can give you the results you’ve been looking for. Earning ETL and UL listings on top of AHRI and Energy Star certifications, this MrCool Mini Split passed intensive third-party testing to verify the legitimacy of every functional, efficiency, and safety claim. Keeping every nook and cranny of your 1500 to 1800 square foot space comfortable, this 45k BTU MrCool AC & Heat Pump is exactly what you need to level up your home.
Giving you the ability to do the setup process yourself, the MrCool DIY Multi Zone Mini Split 45k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B goes above and beyond for your long-term results. Coming with a R454B-precharged DIY line set for each of the three air handlers as well as the DIYPro armored cable that makes the electric connections effortless, this MrCool AC & Heat Pump even gives you step-by-step setup instructions in the installation manual. Equipped with gold fin condensers that fend off corrosion over time, this MrCool Heat Pump is the ideal option for coastal homes and other residential areas close enough to industrial zones to require the extra protection on their outdoor equipment.
Each room of your home may have unique needs and accommodations to worry about, but that doesn’t have to worry homeowners who use the MrCool DIY Multi Zone Mini Split 45k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B. All three air handlers can use the Follow Me function to automate your comfort, using built-in sensors stored in the remote control to check the temperature nearby and relay that info back to the system to make any necessary adjustments. With such a simple and effortless comfort solution working in tandem with the smartphone app, this MrCool Mini Split gives you every option you could need and then some to ensure you can always relax in the exact temperatures you desire.
With so many powerful features supported by a default warranty of 5 years on parts and 7 years on the compressor, with the option to enroll in the MrCool Care Kit Program, what more could you be hoping for from your upgrade? Choose this 5th Generation 45k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with three zones worth of indoor air handlers and line sets today.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYM348HPW12D |
|---|---|
| AHRI Number | 216032595 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 21.8 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Series | DIY |
| Zones | 3 |
| Region Compatibility | Nationwide |
DIY-MULTI6-48HP230D-O Specifications:
| Model | DIY-MULTI6-48HP230D-O |
|---|---|
| UPC | 840255587471 |
| AHRI Number | 216032595 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 223.800000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 21.8 |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-18-HP-WMAH-230D25-O Specifications:
| Model | DIY-18-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587044 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.010000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIYCASSETTE18HP-230D25-O Specifications:
| Model | DIYCASSETTE18HP-230D25-O |
|---|---|
| UPC | 840255587525 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-18-HP-WMAH-230D25-O Specifications:
| Model | DIY-18-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587044 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.010000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIYCASSETTE18HP-230D25-O Specifications:
| Model | DIYCASSETTE18HP-230D25-O |
|---|---|
| UPC | 840255587525 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-24-HP-WMAH-230D25-O Specifications:
| Model | DIY-24-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587051 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 54.670000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIY-24-HP-MUAH-230D25-O Specifications:
| Model | DIY-24-HP-MUAH-230D25-O |
|---|---|
| UPC | 840255588409 |
| Product Height (in) | 45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 17.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 104.700000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1412-O Specifications:
| Model | DIY16-1412-O |
|---|---|
| UPC | 840255587075 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 13.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1412-O Specifications:
| Model | DIY25-1412-O |
|---|---|
| UPC | 840255587099 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1412C-O Specifications:
| Model | DIY35-1412C-O |
|---|---|
| UPC | 840255587136 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1412C-O Specifications:
| Model | DIY50-1412C-O |
|---|---|
| UPC | 840255587150 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 33.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1412-O Specifications:
| Model | DIY16-1412-O |
|---|---|
| UPC | 840255587075 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 13.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-3858-O Specifications:
| Model | DIY16-3858-O |
|---|---|
| UPC | 840255587082 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1412-O Specifications:
| Model | DIY25-1412-O |
|---|---|
| UPC | 840255587099 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-3858-O Specifications:
| Model | DIY25-3858-O |
|---|---|
| UPC | 840255587112 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1412C-O Specifications:
| Model | DIY35-1412C-O |
|---|---|
| UPC | 840255587136 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-3858C-O Specifications:
| Model | DIY35-3858C-O |
|---|---|
| UPC | 840255587143 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1412C-O Specifications:
| Model | DIY50-1412C-O |
|---|---|
| UPC | 840255587150 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 33.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-3858C-O Specifications:
| Model | DIY50-3858C-O |
|---|---|
| UPC | 840255587167 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 37.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
- Regular Price:
- Your Price:
