The purpose of modern HVAC systems is to effectively regulate the temperature in commercial, industrial, and residential properties in any conditions. When you decide on the MrCool DIY Multi Zone Mini Split 45k BTU 6 Zone Ductless AC & Heat Pump - 5th Generation - R454B, you can relax knowing your wildest expectations will be met. Supported by ETL and UL listings alongside AHRI and Energy Star certifications, this MrCool Mini Split underwent rigorous third-party evaluations to showcase the legitimacy of every operational, efficiency, and safety claim. Keep control of your 1500 to 1800 square foot space by bringing in the big guns with the 45k BTU MrCool AC & Heat Pump.

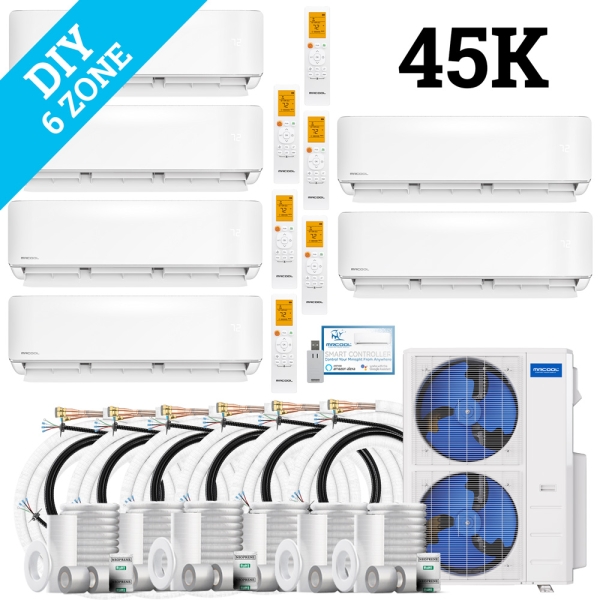

This Bundle Includes:

Accessories
Description / Documents

The purpose of modern HVAC systems is to effectively regulate the temperature in commercial, industrial, and residential properties in any conditions. When you decide on the MrCool DIY Multi Zone Mini Split 45k BTU 6 Zone Ductless AC & Heat Pump - 5th Generation - R454B, you can relax knowing your wildest expectations will be met. Supported by ETL and UL listings alongside AHRI and Energy Star certifications, this MrCool Mini Split underwent rigorous third-party evaluations to showcase the legitimacy of every operational, efficiency, and safety claim. Keep control of your 1500 to 1800 square foot space by bringing in the big guns with the 45k BTU MrCool AC & Heat Pump.

From mounting the indoor units to hooking them up to the corresponding outdoor condenser, the MrCool DIY Multi Zone Mini Split 45k BTU 6 Zone Ductless AC & Heat Pump - 5th Generation - R454B eliminates the need to coordinate your schedule with and pay for a licensed technician. Able to make use of hardware like the precharged DIY line sets and the DIYPro armored cable, this MrCool AC & Heat Pump streamlines the setup process from every angle so anyone can follow along with the provided instructions. Equipped with durable gold fin condensers that fight off corrosion over the years, this MrCool Heat Pump provides long-term performance in even the most corrosive and difficult environments with ease.

By giving you various ways to adapt your environment with ease, the MrCool DIY Multi Zone Mini Split 45k BTU 6 Zone Ductless AC & Heat Pump - 5th Generation - R454B makes enjoying your ideal temperatures an effortless task. Equipped with a smartphone app that lets you adjust options like mode, temperature, and more, you can ensure your home will feel exactly how you want coming home from work, a trip, or any other extended leave. Even coming with a remote control that gives you both standard remote operation on top of the Follow Me feature, this MrCool Mini Split has the power to autonomously adapt the airflow settings to optimize your comfort without making you lift a finger.

Beyond all these game changing advantages offered to you by this system, you also receive a standard warranty that covers 5 years on parts and 7 years on the compressor with the option to enroll in the MrCool Care Kit Program, your every need is not just met, but exceeded. Choose this 5th Generation 45k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with an indoor air handler and line set for each of the six zones today.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM648HPW05D
AHRI Number 216032595
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency (SEER2) 21.8
Heat Pump Efficiency (HSPF2) 10
Series DIY
Zones 6
Region Compatibility Nationwide

DIY-MULTI6-48HP230D-O Specifications:

Model DIY-MULTI6-48HP230D-O
UPC 840255587471
AHRI Number 216032595
Product Height (in) 52.5
Avg Coverage Area 2,000 - 2,400 Sq Ft
Product Length (in) 16.3
Compressor Inverter
Product Width (in) 37.5
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 10
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 223.800000
Primary Heating Capacity 45,001 - 50,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 21.8
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

Ways to Save as You Shop

IWAE Insiders ProgramIWAE Insiders Program
IWAEPros ProgramIWAEPros Program
Financing with IWAEFinancing with IWAE
IWAE Rebate FinderIWAE Rebate Finder
Labor Warranty at IWAELabor Warranty at IWAE

Related Content View All >

Loading...
Loading...
