Providing comfortable temperatures in your home that grant respite from inclement weather through the year is the purpose of your HVAC system. When your heating and cooling doesn’t make the cut, let the MrCool DIY Multi Zone Mini Split 48k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B bring your results back up to speed. Backed by ETL and UL listings as well as AHRI and Energy Star certifications, this MrCool Mini Split has undergone rigorous third-party evaluations to showcase the integrity of every performance, efficiency, and safety claim. When you’re ready to enjoy every inch of your 2000 to 2400 square foot space, the 48k BTU MrCool AC & Heat Pump is the puzzle piece to round out your picture-perfect home.

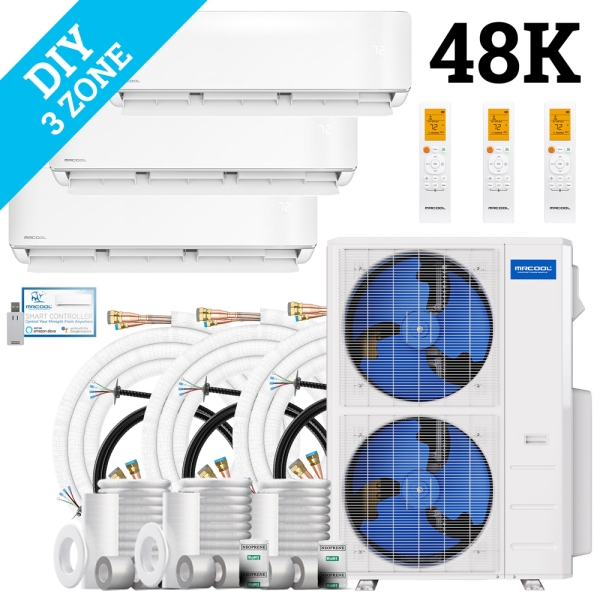

This Bundle Includes:

Accessories
Description / Documents

Providing comfortable temperatures in your home that grant respite from inclement weather through the year is the purpose of your HVAC system. When your heating and cooling doesn’t make the cut, let the MrCool DIY Multi Zone Mini Split 48k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B bring your results back up to speed. Backed by ETL and UL listings as well as AHRI and Energy Star certifications, this MrCool Mini Split has undergone rigorous third-party evaluations to showcase the integrity of every performance, efficiency, and safety claim. When you’re ready to enjoy every inch of your 2000 to 2400 square foot space, the 48k BTU MrCool AC & Heat Pump is the puzzle piece to round out your picture-perfect home.

Merging do-it-yourself and professional quality, the MrCool DIY Multi Zone Mini Split 48k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B doesn’t cut corners on results to put the installation power in your hands. With R454B-precharged DIY line sets per zone and the DIYPro armored cable that provides a similarly simple process for the electronic connections, this MrCool AC & Heat Pump makes each step streamlined to keep setup achievable by anyone willing to give it a go. Making use of gold fin condensers that provide exceptional corrosion resistance, this MrCool Heat Pump even works well in climates with unusually high corrosion like coastal cities and towns with industrial facilities.

When it comes to tailoring your results to your needs per zone, the MrCool DIY Multi Zone Mini Split 48k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B is equipped to tackle the challenge head-on. Each air handler has the option to use the Follow Me function to keep your comfort front and center, utilizing the built-in sensors within the remote control to monitor the conditions nearby and send that data back to the system for any necessary changes to be made that would optimize the climate directly where you are. Giving you automatic adjustment options on top of the smartphone app that puts your settings at your fingertips no matter where you are, this MrCool Mini Split is ready and willing to go the distance for your comfort all year long.

But the benefits don’t even stop there! All of this powerful hardware comes backed by a warranty that provides 5 years of coverage on parts and 7 years on the compressor with the option to enroll in the MrCool Care Kit Program. Make a change for the better by purchasing this 5th Generation 48k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with three indoor air handlers and their line sets today.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM348HPW01D
AHRI Number 216032595
Bundle Avg Coverage Area 2,000 - 2,400 Sq Ft
Bundle Cooling Capacity 4 Ton
Bundle Cooling Efficiency (SEER2) 21.8
Heat Pump Efficiency (HSPF2) 10
Series DIY
Zones 3
Region Compatibility Nationwide

DIY-MULTI6-48HP230D-O Specifications:

Model DIY-MULTI6-48HP230D-O
UPC 840255587471
AHRI Number 216032595
Product Height (in) 52.5
Avg Coverage Area 2,000 - 2,400 Sq Ft
Product Length (in) 16.3
Compressor Inverter
Product Width (in) 37.5
Cooling Capacity 4 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 10
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 40 amps
Weight (lbs) 223.800000
Primary Heating Capacity 45,001 - 50,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 21.8
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-18-HP-WMAH-230D25-O Specifications:

Model DIY-18-HP-WMAH-230D25-O
UPC 840255587044
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 54.010000
Refrigerant R-454b
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIYCASSETTE18HP-230D25-O Specifications:

Model DIYCASSETTE18HP-230D25-O
UPC 840255587525
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-18-HP-WMAH-230D25-O Specifications:

Model DIY-18-HP-WMAH-230D25-O
UPC 840255587044
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 54.010000
Refrigerant R-454b
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIYCASSETTE18HP-230D25-O Specifications:

Model DIYCASSETTE18HP-230D25-O
UPC 840255587525
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-24-HP-WMAH-230D25-O Specifications:

Model DIY-24-HP-WMAH-230D25-O
UPC 840255587051
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Weight (lbs) 54.670000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIY-24-HP-MUAH-230D25-O Specifications:

Model DIY-24-HP-MUAH-230D25-O
UPC 840255588409
Product Height (in) 45
Configuration Floor Mounted
Product Length (in) 21
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 17.5
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 104.700000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts

DIY-36-HP-WMAH-230D25-O Specifications:

Model DIY-36-HP-WMAH-230D25-O
UPC 840255587068
Product Height (in) 14.25
Configuration Wall Mounted
Product Length (in) 11.1
Air Flow Direction Horizontal
Product Width (in) 49.57
Blower Motor Variable Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Weight (lbs) 70.990000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIY-36-HP-MUAH-230D25-O Specifications:

Model DIY-36-HP-MUAH-230D25-O
UPC 840255588416
Product Height (in) 49
Configuration Floor Mounted
Product Length (in) 21
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 21
Blower Motor Multi Speed
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 128.300000
Refrigerant R-454b
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1412-O Specifications:

Model DIY16-1412-O
UPC 840255587075
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 13.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1412-O Specifications:

Model DIY25-1412-O
UPC 840255587099
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1412C-O Specifications:

Model DIY35-1412C-O
UPC 840255587136
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 23.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1412C-O Specifications:

Model DIY50-1412C-O
UPC 840255587150
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 33.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1412-O Specifications:

Model DIY16-1412-O
UPC 840255587075
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 13.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-3858-O Specifications:

Model DIY16-3858-O
UPC 840255587082
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 19.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1412-O Specifications:

Model DIY25-1412-O
UPC 840255587099
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-3858-O Specifications:

Model DIY25-3858-O
UPC 840255587112
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 19.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1412C-O Specifications:

Model DIY35-1412C-O
UPC 840255587136
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 23.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-3858C-O Specifications:

Model DIY35-3858C-O
UPC 840255587143
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 23.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1412C-O Specifications:

Model DIY50-1412C-O
UPC 840255587150
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 33.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-3858C-O Specifications:

Model DIY50-3858C-O
UPC 840255587167
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Weight (lbs) 37.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None

Ways to Save as You Shop

IWAE Insiders ProgramIWAE Insiders Program
IWAEPros ProgramIWAEPros Program
Financing with IWAEFinancing with IWAE
IWAE Rebate FinderIWAE Rebate Finder
Labor Warranty at IWAELabor Warranty at IWAE

Related Content View All >

Loading...
Loading...
