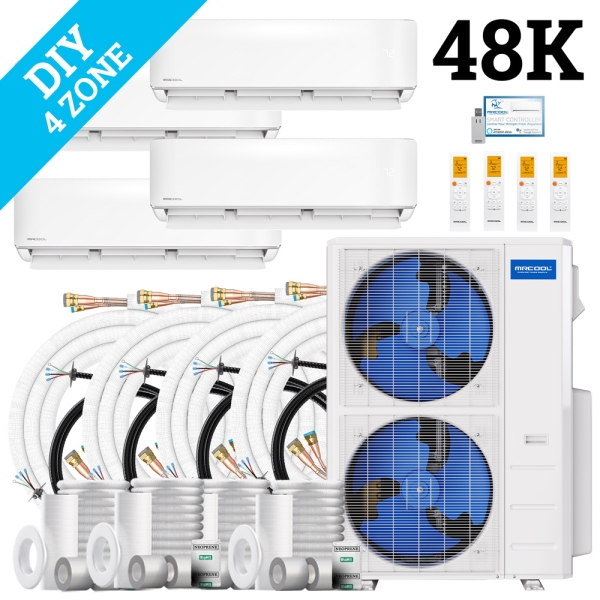

MrCool DIY Multi Zone Mini Split 48k BTU 4 Zone Ductless AC & Heat Pump - 5th Generation - R454B
Item
HA26978
Models DIY-MULTI6-48HP230D-O, DIY-06-HP-WMAH-230D25-O, DIY-06-HP-WMAH-230D25-O, DIY-09-HP-WMAH-230D25-O, DIY-12-HP-WMAH-230D25-O, DIY16-1438-O, DIY16-1438-O, DIY16-1438-O, DIY16-1438-O
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
The next generation of comfort is here.
With a new MrCool DIY 5th Gen Multi-Zone Mini-Split. Our patented MRCOOL® Series heat pump is the only ductless mini-split system on the market specifically designed for amateur installation.
Customize Your Comfort
Choose Your System Size
Select the outdoor condenser that matches your home’s square footage and zone needs. The all-new MrCool DIY Multi-zone goes up to 6 zones to meet your home’s needs.
Easy DIY® installation
Leakage Detection
DIY Pro® Cable
Match Each Zone to Your Ideal Air Handler
Choose a wall-mounted, ceiling-mounted, or the all-new DIY Hybrid Central Ducted air handler to create a multi-zone system built around your home and your needs.
Smartphone App
Low Ambient Cooling*
Easy Quick Connect
Explore the lineup.
SmartPhone App
Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
® DIY® Anywhere and manage
App Available in Apple & Android
Follow Me Function
Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
Tracks temperature around you for personalized comfort.
Auto Restart
Multi-Zone Solutions
Individual Rooms?
Individual Results.
Each zone can choose settings that won’t influence the others
Every air handler can use the Follow Me feature for maximum comfort
The MrCool DIY has 2, 3, 4, 5 and 6 zone options, the best warranties in the business, even better efficiency ratings, and a new Armored Pro Cable.
DIY made easy.
No refrigerant? No problem. With our patented, pre-charged quick connect line sets you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools.
The ends use proprietary Quick Connect® Threaded fittings that seal tight without needing brazing or soldering.
Made to be secure, lead-free, and DIY-safe - even for first-timers
U.S. patented technology that sets MRCOOL apart in the ductless market.
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Armored metal casing protects your electrical connection from damage, pests, and the elements.
Especially useful in garages, basements, sheds, or exterior walls where exposure is a concern.
Tested and certified by Intertek, ensuring safer installs
Protect your Purchase.
Warranty Programs
Each unit comes backed with a standard 5-year warranty on replacement parts and a 7-year warranty on the compressor. For even greater protection, upgrade to the MrCool Care Kit Program and enjoy an extended limited lifetime replacement warranty—because long-term comfort shouldn’t come with surprises.
Crafting your ideal environment within your home is the job of your HVAC system, so what do you do when it falls short of shirking off the outdoor conditions? Fire your antiquated system and hire the MrCool DIY Multi Zone Mini Split 48k BTU 4 Zone Ductless AC & Heat Pump - 5th Generation - R454B to take your indoor comfort to new heights. Supported by both ETL and UL listings alongside AHRI and Energy Star certifications, this MrCool Mini Split passes thorough third-party inspections to highlight the validity of every functional, efficiency, and safety claim. For uncompromising comfort in every nook and cranny of your 2000 and 2400 square foot space, let the 48k BTU MrCool AC & Heat Pump take care of the dirty work.
From indoor air handler mounting to outdoor condenser location selection, the MrCool DIY Multi Zone Mini Split 48k BTU 4 Zone Ductless AC & Heat Pump - 5th Generation - R454B saves you from the hassle of schedule coordination and licensed professional pricing. With hardware like the precharged DIY line sets and the DIYPro armored cable that streamline common setup complications, this MrCool AC & Heat Pump puts the power of setup in the palm of your hand. Thanks to the inclusion of gold fin condensers that effectively fight off corrosion, this MrCool Heat Pump is even the ideal option for coastal or otherwise highly corrosive environments without any dips in your performance over the years.
Providing custom results per zone without impacting the functionality of the other indoor units, the MrCool DIY Multi Zone Mini Split 48k BTU 4 Zone Ductless AC & Heat Pump - 5th Generation - R454B keeps every person in your home cool, calm, and collected. The Follow Me function allows the MrCool DIY system to read in the conditions nearby using built-in sensors in the remote control, then send that information back to the system so you don’t have to lift a finger for the airflow to automatically adapt and best optimize your comfort exactly where you are. Even providing additional support in the smartphone app that gives you access to your settings at a glance, this MrCool Mini Split goes above and beyond to not just meet, but exceed your wildest expectations.
With all these features protected by a standard warranty that encompasses 5 years on parts and 7 years on the compressor, as well as offering the option to extend the compressor coverage to a limited lifetime by enrolling in the MrCool Care Program, what do you gain by holding out any longer? Secure this 5th Generation 48k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with an indoor air handler and line set for each of the four zones today.
| Model | DIYM448HPW07D |
|---|---|
| AHRI Number | 216032595 |
| Bundle Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Bundle Cooling Capacity | 4 Ton |
| Bundle Cooling Efficiency (SEER2) | 21.8 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Series | DIY |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
DIY-MULTI6-48HP230D-O Specifications:
| Model | DIY-MULTI6-48HP230D-O |
|---|---|
| UPC | 840255587471 |
| AHRI Number | 216032595 |
| Product Height (in) | 52.5 |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Product Length (in) | 16.3 |
| Compressor | Inverter |
| Product Width (in) | 37.5 |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 223.800000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 21.8 |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-06-HP-WMAH-230D25-O Specifications:
| Model | DIY-06-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587013 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE06HP-230D25-O Specifications:
| Model | DIYCASSETTE06HP-230D25-O |
|---|---|
| UPC | 840255587495 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-06-HP-WMAH-230D25-O Specifications:
| Model | DIY-06-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587013 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE06HP-230D25-O Specifications:
| Model | DIYCASSETTE06HP-230D25-O |
|---|---|
| UPC | 840255587495 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-18-HP-WMAH-230D25-O Specifications:
| Model | DIY-18-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587044 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.010000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIYCASSETTE18HP-230D25-O Specifications:
| Model | DIYCASSETTE18HP-230D25-O |
|---|---|
| UPC | 840255587525 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-12-HP-WMAH-230D25-O Specifications:
| Model | DIY-12-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587037 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE12HP-230D25-O Specifications:
| Model | DIYCASSETTE12HP-230D25-O |
|---|---|
| UPC | 840255587518 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-18-HP-WMAH-230D25-O Specifications:
| Model | DIY-18-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587044 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.010000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIYCASSETTE18HP-230D25-O Specifications:
| Model | DIYCASSETTE18HP-230D25-O |
|---|---|
| UPC | 840255587525 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-24-HP-WMAH-230D25-O Specifications:
| Model | DIY-24-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587051 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 54.670000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1412-O Specifications:
| Model | DIY16-1412-O |
|---|---|
| UPC | 840255587075 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 13.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1412-O Specifications:
| Model | DIY25-1412-O |
|---|---|
| UPC | 840255587099 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1412C-O Specifications:
| Model | DIY35-1412C-O |
|---|---|
| UPC | 840255587136 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1412C-O Specifications:
| Model | DIY50-1412C-O |
|---|---|
| UPC | 840255587150 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 33.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1412-O Specifications:
| Model | DIY16-1412-O |
|---|---|
| UPC | 840255587075 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 13.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-3858-O Specifications:
| Model | DIY16-3858-O |
|---|---|
| UPC | 840255587082 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1412-O Specifications:
| Model | DIY25-1412-O |
|---|---|
| UPC | 840255587099 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-3858-O Specifications:
| Model | DIY25-3858-O |
|---|---|
| UPC | 840255587112 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1412C-O Specifications:
| Model | DIY35-1412C-O |
|---|---|
| UPC | 840255587136 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-3858C-O Specifications:
| Model | DIY35-3858C-O |
|---|---|
| UPC | 840255587143 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1412C-O Specifications:
| Model | DIY50-1412C-O |
|---|---|
| UPC | 840255587150 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 33.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-3858C-O Specifications:
| Model | DIY50-3858C-O |
|---|---|
| UPC | 840255587167 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 37.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DOCUMENTS
Shipping & Delivery
Effective and efficient shipping practices are critical for an online business. That’s why we try our best to ship products within 24-36 hours of receiving your order. It’s why we have no hidden fees, send you tracking information as soon as we receive it, and work with our freight carriers to have units delivered as quickly as possible once they leave our warehouse. If you ever have any questions about shipping, call us at 1-270-575-9595. Notice that shipping outside of the continental US require an additional shipping fee.
Shipping Damage & Missing Items
Unpack and inspect ALL packages for damaged or missing items before accepting your shipment. If any damage is found, note this on the delivery receipt. Although Ingrams Water & Air Equipment is NOT responsible for shipping damage, we can assist with filing a claim against the shipping carrier to cover the cost of damages. Any damages or missing items have to be noted on the delivery receipt prior to signing for and accepting your shipment in order to file a claim. Do not let the delivery driver rush you. It is your right to inspect each and every item. If the delivery driver refuses to wait or doesn't allow you to inspect your items prior to signing, please call us immediately at 1-270-575-9595 and our claims department can offer assistance.
Shipping damage claims must be filed within 72 hours of delivery of your order, or the shipping carrier may deny the claim.
