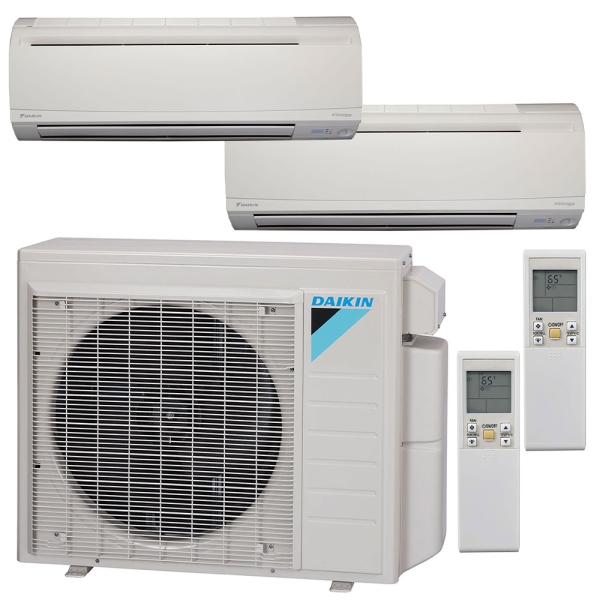

16k BTU 17.9 SEER Daikin Ductless Heat Pump Split System - 2 Zone Wall Mounted - 7k+9k

Item: HA13396
Models: 3MXL24QMVJU, CTXS07LVJU, FTXS09LVJU
Condition: New

16k BTU 17.9 SEER Daikin Ductless Heat Pump Split System - 2 Zone Wall Mounted - 7k+9k Zoom

Photo Gallery

Related Videos



Availability: In stock

As low as: $4,932.74

Price as configured: $4,932.74

Ingram Financing

24k BTU 17 SEER Daikin Ductless Heat Pump Condenser 24k BTU 17 SEER Daikin Ductless Heat Pump Condenser Item: HA13332 Model: 3MXL24QMVJU Qty: 1
7k BTU Daikin LV Wall Mounted Ductless Air Handler 7k BTU Daikin LV Wall Mounted Ductless Air Handler Item: HA12367 Model: CTXS07LVJU Qty: 1

* Required Fields

Ships Within 1-2 Business Days

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

24k BTU 17 SEER Daikin Ductless Heat Pump Condenser 24k BTU 17 SEER Daikin Ductless Heat Pump Condenser Item: HA13332 Model: 3MXL24QMVJU Qty: 1
7k BTU Daikin LV Wall Mounted Ductless Air Handler 7k BTU Daikin LV Wall Mounted Ductless Air Handler Item: HA12367 Model: CTXS07LVJU Qty: 1
9k BTU Daikin LV Wall Moutned Ductless Air Handler 9k BTU Daikin LV Wall Moutned Ductless Air Handler Item: HA12615 Model: FTXS09LVJU Qty: 1

Overview



Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model 3MXL24QMVJU,CTXS07LVJU,FTXS09LVJU
AHRI Number 8849539
Bundle Avg Coverage Area 500 - 600 Sq Ft
Bundle Cooling Capacity 1 Ton
Bundle Cooling Efficiency 17 SEER
EER 12.7
Heat Pump Efficiency (HSPF) 12.5
Series MXL
Zones 2
Region Compatibility Nationwide
Popular Applications Apartment, Duplex, Hotel Room, Office, Single Family Home
California Residents see Prop 65 WARNING

3MXL24QMVJU Specifications:

Model 3MXL24QMVJU
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 12.5
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Primary Heating Capacity 20,001 - 25,000 BTU
Product Height (in) 28.94
Product Length (in) 12.63
Product Width (in) 34.25
Refrigerant R-410a
Cooling Efficiency 17 SEER
Series MXL
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 12 Year Parts
Weight (lbs) 140.0000
Region Compatibility Nationwide

CTXS07LVJU Specifications:

Model CTXS07LVJU
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11.63
Product Length (in) 8.44
Product Width (in) 31.5
Series LV
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 12 Year Parts
Weight (lbs) 20.0000

FTXS09LVJU Specifications:

Model FTXS09LVJU
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 10.5
Product Length (in) 34
Product Width (in) 14.5
Series LV
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 12 Year Parts
Weight (lbs) 26.0000
