18k BTU 22 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted

Item: HA22095
Models: DIY-18-HP-C-230C25, DIY-18-HP-WMAH-230C25
Condition: New
Install an HVAC system yourself? It sounds impossible, but the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System is made for just that. The system is easily installed without any experience or special tools or equipment. The included air handler is capable of heating or cooling between 750-900 square feet.

Availability: In stock

As low as: $2,156.00

Price as configured: $2,156.00

Ingram Financing


* Required Fields

Ships Within 1-2 Business Days

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

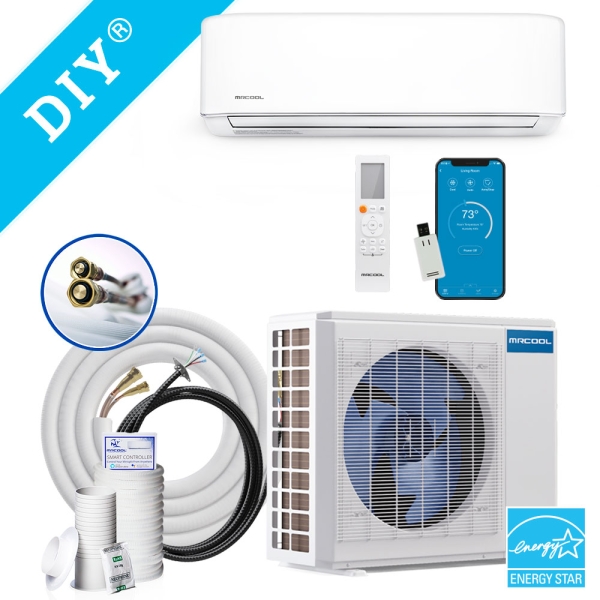

This Bundle Includes

18k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v 18k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v Item: HA22043 Model: DIY-18-HP-WMAH-230C25 Qty: 1
MrCool

Contractors

Up to 30% Off - Call for Info

Call 270-575-9595 Now

What's Included

What customers are saying...



Overview

Install an HVAC system yourself? It sounds impossible, but the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System is made for just that. The system is easily installed without any experience or special tools or equipment. The included air handler is capable of heating or cooling between 750-900 square feet.

The included pre-charged 25-foot Quick Connect line set not only makes installation easy, but also safe and cost-saving. The line set is precharged with R-410A refrigerant, a more environmentally friendly and chlorine-free option. Since it is precharged, there is no need for vacuuming. Also included is the DIYPRO cable. With this cable, an electrical conduit is no longer necessary during installation. The DIYPRO cable ensures durability and mechanical protection from animals, yardwork tools, and weather, so you can enjoy the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System for a long time.

You have ultimate control of the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System.You can utilize the included remote, the SmartHVAC app on your Apple or Android device, or you can go completely hands free by using your Amazon Alexa or Google Assistant.

Live on the coast with corrosive salt water? No worries here. The heat pump has a Gold Fin Condenser that is strong enough to resist corrosion. The innovative technology will give the system a long lifespan no matter what region you reside.

You are able to utilize the many modes and functions the 4th Generation MrCool DIY 18k BTU 22 SEER Ductless Heat Pump Mini Split System has to offer in order to create your most desirable environment. With the Timer function, you can limit energy use and save money by allowing the heat or air conditioning to run for a specified amount of time. The Auto mode will allow you to set your preferred temperature and the system will work to maintain it without any further adjustment on your part. After a power outage, the system will automatically return to its previous settings once power is restored. The anti-mildew function prevents the accumulation of mold and mildew by eliminating excess condensation in the air handler.

Backed by the best warranty in the industry, the MrCool DIY Ductless Mini Split now boasts a limited lifetime warranty. This is in addition to the standard 7-year compressor warranty and 5-year parts warranty. These warranties provide peace of mind when purchasing.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-18-HP-WM-230C25
UPC 810035935167
AHRI Number 207339188
Bundle Avg Coverage Area 750 - 900 Sq Ft
Bundle Cooling Capacity 1.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 11.5
Series DIY
Zones 1
Region Compatibility Nationwide
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
California Residents see Prop 65 WARNING

DIY-18-HP-C-230C25 Specifications:

Model DIY-18-HP-C-230C25
AHRI Number 207339188
UPC 810063868505
Avg Coverage Area 750 - 900 Sq Ft
Compressor Inverter
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 11.5
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 15,001 - 20,000 BTU
Product Height (in) 26.5
Product Length (in) 13.46
Product Width (in) 35.04
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 94.3600
Region Compatibility Nationwide

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 13.19
Product Length (in) 8.9
Product Width (in) 42.52
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 56.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Do have the above unit with 16' lineset
What is the difference between Item number HA21761 and Item number HA22095 besides a $1000 dollars. Can you send me the specs as well for both models
what temp do these units heat to? Outside temp?
I am building a new construction ADU in the back yard of my home in Seattle. The building department is requiring me to use a mini split heat and cooling system. I will need a longer line set can I order a 35 foot pre charged line set wit the purchase of my mini split?
Why does my heater smell when I turn on heat? Like a pee smell or spit I just don't know?
How di I size a mini split for my pole barn
I was wondering if the line sets and drain line can be routed out the left side of the air handler instead of the right side?
what is the difference between the 3rd and 4th generation mr cool products?
Can the lineset be shortened to 10 feet by factory prior to shipping?
Is the indoor unit fan motor brushless?
Can I get a longer quick connect for the HA22095? Thank You
Can the temp display on the front of the unit be turned off. It’s so bright in a dark bedroom at nigh that it lights up the room. It’s an 18000 btu model.
Does this unit come with an electrical whip?
What is the minimum 240v circuit and breaker size required for this unit installation?
Does the 4th generation 18000 mrcool mini split automatically defrost
What is the air flo rate? CFM? For this unit
What is the decibel range I should expect?
Heating x-y
Cooling x-y

Thanks
KJ
I was wondering if the line set can be ran out of the side of the unit and down the interior wall? I am installing in a garage and can't have the lines visible above my fence line.
Can I have the 25' lineset replaced with a 16' on ordering?
I am considering the Mr Cool 18k BTU unit for my garage and wanted to ask if the line set is very flexible. I plan on running the line up the wall and down through the soffit and I would have to make a relatively sharp bend to at the top of wall in the attic.Thank you
Hello. We are looking at a 4th gen 18K, Mr. Cool. Is an extended warranty advised with this unit since it comes with a pretty comprehensive warranty? And what are the details regarding purchasing the yearly maintenance kit to keep the warranty in force?

Thanks
The condenser wall mounting unit states that it is for 24k & 36K units, will it work for a 18K unit?
Thanks Gary O.
What size breaker should I use?
What is the longest line set I can use? I need approximately 100 ft. Can you connect line set together to get the needed 100 ft
