2.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

Item
HA23783
Models RSH3ME4M1RP30, C84DAMX30U-B
Condition
New


Customize 2.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

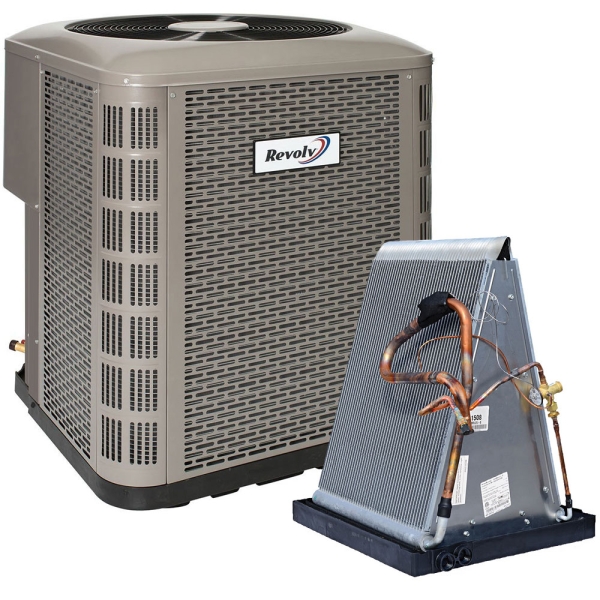

    This Bundle Includes

    2.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump Condenser
    Item: HA22699 Model: RSH3ME4M1RP30
    Qty: 1
    2.5 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23752 Model: C84DAMX30U-B
    Qty: 1

    Affordable HVAC Installation


    What's included

    DOCUMENTS


    Are you fatigued by the erratic temperature fluctuations wreaking havoc on the atmosphere of your mobile home? It's time to leave these frustrations behind you and look to the future with the 2.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System. Earning both AHRI certification and ETL listing, a SEER2 rating of 14, and arriving fully equipped to manage spaces spanning from 1250 to 1500 square feet, this Revolv Heat Pump gives you the luxury of unparalleled climate control that seeps into every nook of your motorhome. This dependability grants you the freedom to unwind in any room within your home, getting rid of the need to scour around for comfortable zones.

    Crafted for longevity, the 2.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System capitalizes on a thoughtfully selected range of features that protect the internal components. The robust cabinet of this Revolv Heat Pump is constructed from galvanized steel and finished with a powder-paint treatment, bringing aesthetic appeal to the party while rounding out any sharp edges. This coating is capable of handling a strenuous 950-hour salt spray test when conducted in accordance with ASTM standard B117, promising resilience against scratches, chipping, fading, and corrosion over time. Maintenance is simplified and airflow is enhanced thanks to the addition of a removable top grille assembly and accessible compressor and controls. The composite base pan not only silences operational noise but also amplifies corrosion resistance in a sturdy yet lightweight structure. This is further reinforced by a powder-coated wire guard and mesh hail guard, granting the knowledge that the internals remain shielded from sports equipment, severe weather conditions, and more.

    The internal components of this 2.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System mirror the impressive performance of the external hardware. Safety features like a high-pressure switch vigilantly monitor system pressures, swiftly handling any budding problems without requiring your direct intervention while the auto-reset function removes another typical cause for service calls. The brass valves are easily accessible and come pre-charged to work with up to 20 feet of tubing, saving you both time and cost during installation and maintenance. The addition of all-aluminum coils enriches this Revolv Heat Pump with even more corrosion resistance, further enhancing the durability. With all these advantages at your fingertips, why continue to endure subpar results any longer? Upgrade to this 2.5 Ton Revolv today and transform your mobile home into your personal haven.

    More Information
    Model RSH3ME4M1RP30,C84DAMX30U-B
    UPC 663132453047
    AHRI Number 209851997
    Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
    Bundle Cooling Capacity 2.5 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11
    Heat Pump Efficiency (HSPF2) 8.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSH3ME4M1RP30 Specifications:

    More Information
    Model RSH3ME4M1RP30
    UPC 663132453047
    Product Height (in) 39
    Avg Coverage Area 1,250 - 1,500 Sq Ft
    Product Length (in) 30.75
    Compressor Single Stage
    Product Width (in) 30.75
    Cooling Capacity 2.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 165.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 3/4 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C84DAMX30U-B Specifications:

    More Information
    Model C84DAMX30U-B
    UPC 663132446889
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 2.5 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 24.000000
    Refrigerant R-410a
    Suction Line Size 3/4 inch
    Warranty 5 Year
