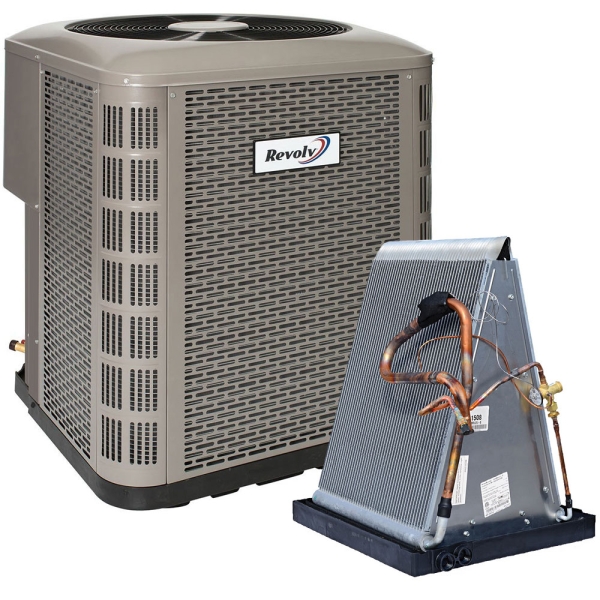

2 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

Item
HA23782
Models RSH3ME4M1RP24, C84DAMX24U-B
Condition
New


Customize 2 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    2 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump Condenser
    Item: HA22698 Model: RSH3ME4M1RP24
    Qty: 1
    2 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23751 Model: C84DAMX24U-B
    Qty: 1

    Affordable HVAC Installation


    What's included

    DOCUMENTS


    Are you worn out from the unpredictable temperature swings that disrupt the ambiance of your mobile home? It's time to leave the frustrations in the past and eagerly embrace the future with the 2 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System. Holding both AHRI certification and ETL listing, a SEER2 rating of 14, and coming equipped to manage spaces spanning from 1000 to 1200 square feet, this Revolv Heat Pump offers you the freedom of uncompromising climate control that extends into every corner of your motorhome. This reliability affords you the freedom to enjoy any spot within your home to relax, putting an end to the hunt for comfortable zones.

    Designed for durability, the 2 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System capitalizes on a carefully chosen array of features that safeguard the internal hardware. The sturdy cabinet of this Revolv Heat Pump is fashioned from galvanized steel and treated with a powder-paint finish, adding aesthetic appeal while smoothing out sharp edges. This coating can withstand a grueling 950-hour salt spray test when conducted in accordance with ASTM standard B117, providing resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is streamlined and airflow is improved thanks to the integration of a removable top grille assembly and accessible compressor and controls. The composite base pan both suppresses operational noise and increases corrosion resistance within a robust yet lightweight structure. This is fortified by a powder-coated wire guard and mesh hail guard, giving you the knowledge that the internals remain protected from sports equipment, harsh weather conditions, and more.

    The internal hardware of this 2 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System mirrors the remarkable performance produced by the external hardware. Safety features like a high-pressure switch diligently watch the system pressures, promptly nipping any growing issues in the bud without needing your direct involvement while the auto-reset function eliminates another common cause for service calls. The brass valves are easily acceptable and come pre-charged to work with up to 20 feet of tubing, saving you both time and cost during setup and servicing. The inclusion of all-aluminum coils provides even more corrosion resistance, further improving the durability of this Revolv Heat Pump. With all these benefits at your disposal, why continue to deal with mediocre results any longer? Upgrade to this 2 Ton Revolv today and transform your mobile home into your personal sanctuary.

    More Information
    Model RSH3ME4M1RP24,C84DAMX24U-B
    UPC 663132453061
    AHRI Number 209851996
    Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
    Bundle Cooling Capacity 2 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11.8
    Heat Pump Efficiency (HSPF2) 8.2
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSH3ME4M1RP24 Specifications:

    More Information
    Model RSH3ME4M1RP24
    UPC 663132453061
    Product Height (in) 35
    Avg Coverage Area 1,000 - 1,200 Sq Ft
    Product Length (in) 30.75
    Compressor Single Stage
    Product Width (in) 30.75
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 20 amps
    Weight (lbs) 125.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 3/4 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C84DAMX24U-B Specifications:

    More Information
    Model C84DAMX24U-B
    UPC 663132446896
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 2 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 25.000000
    Refrigerant R-410a
    Suction Line Size 3/4 inch
    Warranty 5 Year
