24k & 36k BTU MrCool DIY Ductless Split System Line Set

Item: HA20976
Model: DIYXX-3858
Condition: New

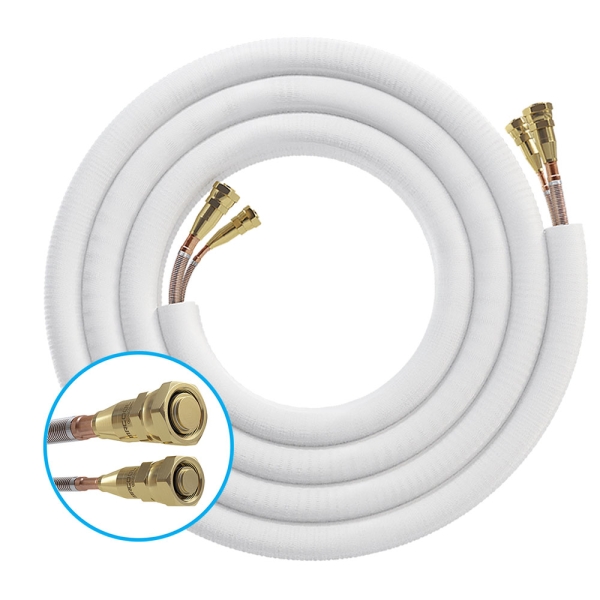

24k & 36k BTU MrCool DIY Ductless Split System Line Set Zoom

Photo Gallery

The 24k & 36k BTU MrCool DIY Ductless Split System Line Set is intended only for use with the MrCool DIY ductless mini split heat pump systems that have a 24k or 36k air handler. Please do not attempt to use this line set with non-MrCool brand ductless mini-split products. Do not attempt to use this product with other MrCool mini splits either. Only use this line set for the MrCool DIY mini splits with 24k or 36k air handlers.

Availability: In stock

$248.00
Ingram Financing


* Required Fields

Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

The 24k & 36k BTU MrCool DIY Ductless Split System Line Set is intended only for use with the MrCool DIY ductless mini split heat pump systems that have a 24k or 36k air handler. Please do not attempt to use this line set with non-MrCool brand ductless mini-split products. Do not attempt to use this product with other MrCool mini splits either. Only use this line set for the MrCool DIY mini splits with 24k or 36k air handlers.

As it is built specifically for use with a do-it-yourself mini split, the 24k & 36k BTU MrCool DIY Ductless Split System Line Set is not a typical ductless refrigerant line set. Built with Quick Connect fittings, this line can plug easily into the condenser and the air handler. Simply follow the instructions in your MrCool Instruction Manual, and you can’t go wrong. Since the line set is pre-charged with the appropriate amount of R-410A refrigerant, you also won’t have to worry about vacuuming or charging. That will make your ductless install both faster and easier.

The 24k & 36k BTU MrCool DIY Ductless Split System Line Set is a lightweight line of approximately 15 lbs. It features a suction line size 5/8 inch, and a liquid line size 3/8 inch. Currently, this line is available in either 16 or 25 foot increments. This is sufficient for most installations that the average homeowner will undertake. Should you need just a little bit more, you may find that a condenser wall bracket provides the flexibility you need to get your job done.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIYXX-3858
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None
Weight (lbs) 15.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Can I connect two line sets together so that I can put the condensing unit further from my bedroom?
a little confused on the line set. Can the 16' line set be order or included instead of the 25'

Thanks,
HI! I'm planning on purchasing the DIY HA21028 (12k +18k). For the 18k indoor unit, I need extra line as it is too far from the outdoor unit. Will this line work?
Can you get shorter line sets. I am putting the unit on a wall bracket so only need 5 or 6 feet of line?
What is the length of tubing included on the DIY Mr. Cool 24K BTU mini Split in the kit?
What are the pre-charged line set options for a 36K condenser? I know you have 16' and 25'. Are there any more pre-charged lengths available?
Thank you
Are the lines precharged?
Can this work with the Olympus?
How much refrigerant are the lines precharged with?
