24k BTU 20 SEER MrCool DIY Ductless Heat Pump Split System 3rd Generation - Wall Mounted

Item: HA20870
Models: DIY-24-HP-C-230B, DIY-24-HP-WMAH-230B
Condition: New
Looking for an easy way to upgrade your home comfort situation? The 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System is an easy choice for a homeowner looking to make updates on their own. This model has a 24,000 BTU capacity and can cool, heat, or dehumidify up to 1,000 square feet.

Availability: On backorder

As low as: $1,749.00

Price as configured: $1,749.00

Ingram Financing


* Required Fields

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

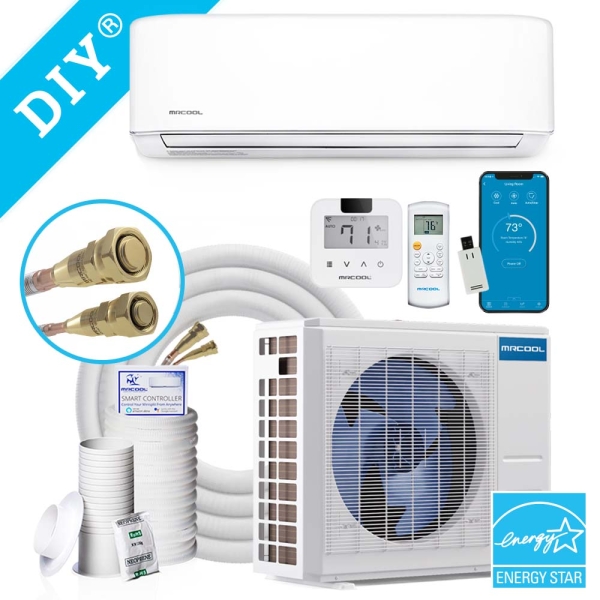

24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation Item: HA20866 Model: DIY-24-HP-WMAH-230B Qty: 1
MrCool

What's Included

What customers are saying...



Overview

Looking for an easy way to upgrade your home comfort situation? The 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System is an easy choice for a homeowner looking to make updates on their own. This model has a 24,000 BTU capacity and can cool, heat, or dehumidify up to 1,000 square feet.

You can install the 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System without any special training, tools, or equipment thanks to the pre-charged Quick Connect line set - MrCool's cutting-edge technology. The line set is a vacuumless option and uses R-410A refrigerant. It is more eco-friendly and is chlorine free.

Plus, the 3rd Generation MrCool DIY mini split runs quietly with no unnecessary noise. You have the option to mute alerts on the indoor unit, so you can see alerts without an audible interruption. For example, this intelligent system will display an alert to let you know when your filter needs to be cleaned or replaced.

The 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System has a wide heating and cooling range and can cool when temperatures are above 100°F and heat in single digit winter weather. With MrCool, you can trust that you'll be comfortable year-round.

The outdoor condenser in this mini split system can be anchored to the ground or a concrete pad or be attached to a wall with a bracket. The compact unit is 37.21 inches wide, 31.9 inches tall, and 16.53 inches deep; meanwhile, the mounting dimensions are 26.5 inches wide by 15.87 inches deep. The indoor air handler is attached to your wall with a bracket, and it's filter can be easily removed for cleaning.

The 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System also has an alarm to let you know when it is leaking or low on refrigerant and includes an anti-mildew function that will keep your unit dry, ensuring clean and fresh air in your home. This ductless mini split will automatically restart after a power outage, so you can rest assured that your HVAC unit will begin running smoothly as soon as power is restored.

The 3rd Generation MrCool DIY mini split can even save you money while you sleep. With the sleep mode function, the temperature will increase 2°F when cooling or decrease 2°F per hour for two hours. It will then operate at the new, more moderate temperature for six hours before returning to its normal operation. With this feature, you can sleep easy while reducing your power bill.

Other features included on the 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System are an auto mode that automatically determines when to heat or cool depending on a set temperature and a timer function so you can limit your energy use.

For homeowners with smart devices, you can manage your home's temperature wherever you are with Google Assistant, Amazon Alexa, or an app on your Apple or Android device. The 3rd Generation MrCool DIY 24k BTU 20 SEER Ductless Heat Pump Mini Split System also includes a remote so you can manage your home's temperature at your convenience.

24k BTU 20 SEER MrCool DIY Ductless Heat Pump Condenser - 3rd Generation - DIY-24-HP-C-230B

MrCool HA20862

The only ductless air conditioning and heating unit that is easy to install for thousands less than a conventional HVAC system. Mr Cool DIY 24k Ductless Mini Split heat pump even adjusts the temperature to the perfect degree wherever you are in your room.

A MRCOOL DIY Series heat pump is the only ductless mini split system on the market explicitly designed for amateur installation. You don't need special tools or training to install this high efficiency heat pump. A line set precharged with R410A refrigerant, the quick hook-up electrical connections, and the quality engineering mean just about anyone can install a MRCOOL DIY in their home with no problem at all in only a few short hours. If you want great air comfort without paying an arm and a leg for installation, you want an easy-to-use MRCOOL DIY Series ductless heat pump.

Unlike any other ductless heat pump on the market, the MRCOOL DIY series is specifically designed for easy installation. The MRCOOL DIY series uses a precharged refrigerant line, alleviating one major obstacle to amateur installation in a single stroke.

MRCOOL ductless mini split air conditioners and heat pumps are the cutting edge of what modern, flexible fabrication can produce. These air conditioners rely on state-of-the-art manufacturing processes and advanced design to deliver high efficiency air comfort anywhere you need it.

  • EASY DIY INSTALLATION A pre-charged R410 quick connect DIY lineset allows you to install this innovative ductless system without special tools, equipment, or training.
  • FOLLOW ME Personalized Performance for wherever you are in the room. Keep the remote close by, and MRCOOL DIY will track the air temperature around you to ensure you receive maximum comfort.
  • LOW AMBIENT COOLING Cool all the way down to 5°F. Maintain cooling even when the outside temperature reaches 5 degrees. This feature makes the MRCOOL DIY the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.
  • AUTO RESTART Never lift a finger after a power outage. The MRCOOL DIY auto restart will have the unit running again in no time at all.
  • GOLD FIN CONDENSER Live on the coast? Don’t worry, our condenser is built to resist long term corrosion.
  • REMOTE APP WIFI CONTROL Control your DIY anywhere with your Apple or Android smart device and an internet connection.
  • TEMPERATURE COMPENSATION Our temperature compensation technology help keeps you comfortable in any weather conditions
  • LEAKAGE DETECTION When the MRCOOL DIY detects low coolant an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
  • SLEEP MODE We made Sleep Mode easy to program to save money, and let you sleep a little easier.
  • LOUVER POSITION MEMORY The louver will automatically move to the same position as you set last time the unit was turned on.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-24-HP-230B
UPC 810512033522
AHRI Number 204711124
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10
Series DIY
Zones 1
Region Compatibility Nationwide
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
California Residents see Prop 65 WARNING

DIY-24-HP-C-230B Specifications:

Model DIY-24-HP-C-230B
UPC 810512033447
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Primary Heating Capacity 20,001 - 25,000 BTU
Product Height (in) 31.89
Product Length (in) 16.14
Product Width (in) 37.24
Cooling Efficiency 19 SEER and Above
Series DIY
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 159.6100
Region Compatibility Nationwide

DIY-24-HP-WMAH-230B Specifications:

Model DIY-24-HP-WMAH-230B
UPC 810512033485
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Product Height (in) 13.19
Product Length (in) 8.9
Product Width (in) 42.52
Series DIY
Special Features WiFi Capable
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 54.6700
