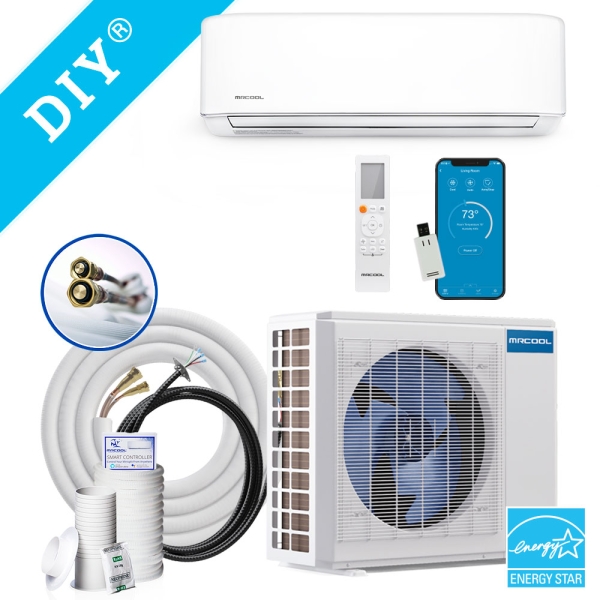

24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted

Item: HA22096
Models: DIY-24-HP-C-230C25, DIY-24-HP-WMAH-230C25
Condition: New
Creating your own comfort in your home is easier than you'd imagine. The 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System can be easily installed by homeowners to heat or cool a space between 1,000-1,200 square feet.

Availability: In stock

As low as: $2,502.00

Price as configured: $2,502.00

Ingram Financing


* Required Fields

Ships Within 1-2 Business Days

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v 24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v Item: HA22044 Model: DIY-24-HP-WMAH-230C25 Qty: 1
MrCool

Contractors

Up to 30% Off - Call for Info

Call 270-575-9595 Now

What's Included

What customers are saying...



Overview

Creating your own comfort in your home is easier than you'd imagine. The 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System can be easily installed by homeowners to heat or cool a space between 1,000-1,200 square feet.

The 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System's pre-charged Quick Connect line set allows you to effortlessly install the system in your home without any extra tools, training, or equipment. No need for a vacuum as the lines are already pre-charged with R-410A refrigerant which is more environmentally friendly than older refrigerants.

The DIYPRO cable makes installation of the 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System even easier. The unique cable allows you to install the system without any electrical conduit. The cable, with easy crimp connectors, protects against weather, animals, and yardwork tools. Using the cable will ensure protection of the mechanical features and create durability.

The many modes and functions of the MrCool DIY Ductless Mini Split will give you a variety of options to keep your home comfortable. These include an auto mode that allows you to set the unit temperature and allow it to maintain your most comfortable environment without additional adjustment on your part. The timer function will allow you to limit your energy consumption by shutting off when heating and cooling isn't needed. Also, if a power outage occurs, the unit will automatically restart and will proceed to heating or cooling your space to your previous settings immediately.

Those living on the coast don't need to worry about corrosion as with most condensers. The 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System uses the Gold Fin condenser made to last longer by actively avoiding corrosion. The innovative technology ensures a longer lifespan for the system.

You are in total control of your comfort with many options to manage the temperature of your space. You are able to use the included wireless remote, the SmartHVAC app on your Apple or Android device, or have your Amazon Alexa or Google Assistant control the unit while you go hands-free.

If issues arise, feel confident that the 4th Generation MrCool DIY 24k BTU 20.5 SEER Ductless Heat Pump Mini Split System boasts the best warranty within the industry. The limited lifetime compressor warranty along with a 7-year compressor warranty and 5-year parts warranty all give you peace of mind when purchasing the system.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-24-HP-WM-230C25
UPC 810035935174
AHRI Number 207339189
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12.5
Heat Pump Efficiency (HSPF) 10.5
Series DIY
Zones 1
Region Compatibility Nationwide
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
California Residents see Prop 65 WARNING

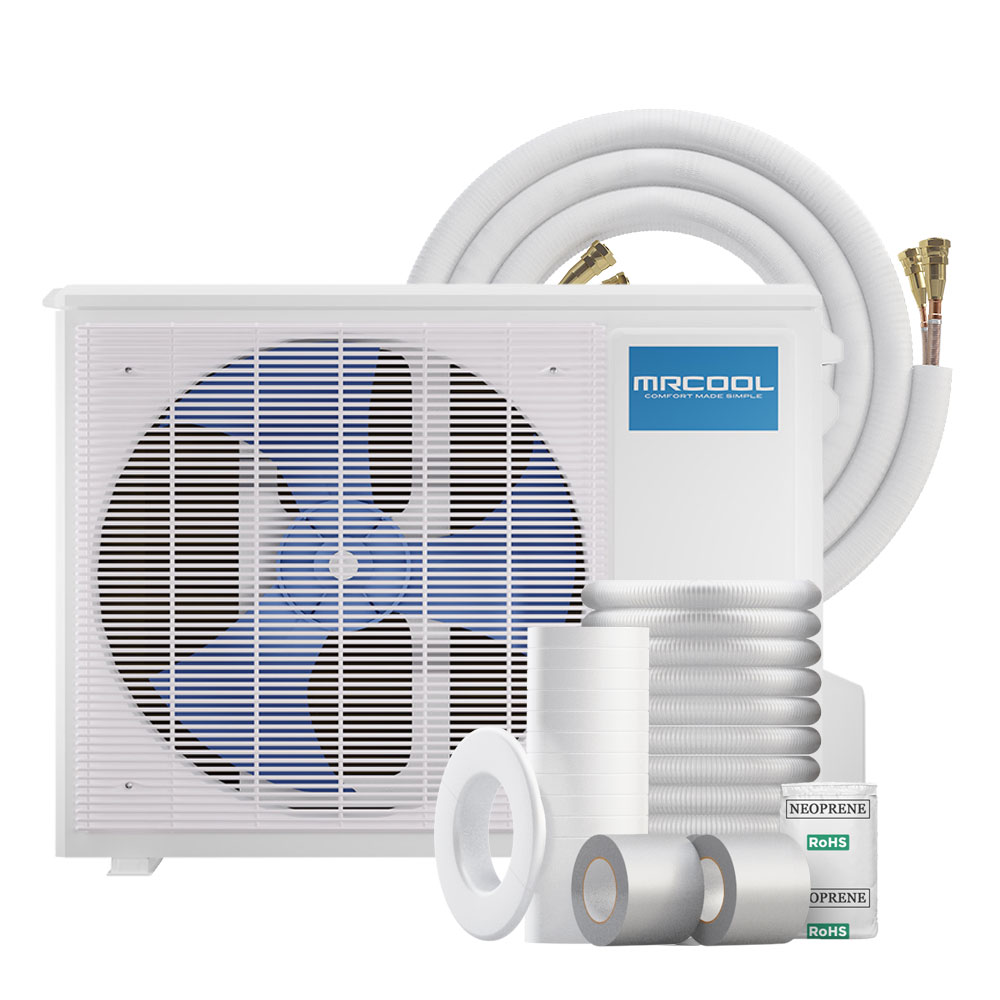

DIY-24-HP-C-230C25 Specifications:

Model DIY-24-HP-C-230C25
AHRI Number 207339189
UPC 810063868529
Avg Coverage Area 1,000 - 1,500 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.5
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 20,001 - 25,000 BTU
Product Height (in) 31.89
Product Length (in) 16.14
Product Width (in) 37.24
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 125.2200
Region Compatibility Nationwide

DIY-24-HP-WMAH-230C25 Specifications:

Model DIY-24-HP-WMAH-230C25
UPC 810063868536
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 13.19
Product Length (in) 8.9
Product Width (in) 42.52
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 60.1900

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
What size breaker and what gauge wire necessary for Electric hook up ?
Hi,
I bought the 18K Gen 3 Mr Cool DIY for my basement last year and frankly I think I went too small (summer the AC does fine but it struggles to get the basement to temp in the winter). Is the 4th generation more efficient in cold weather if not are there way to modify these to emulate the "hyper heat" colder temp performance of the mitsu - is it just a heating coil in the outside unit? If I were to swap in a 24K unit instead could I use the same lines and just replace the head/outdoor unit? Maybe stick that in the garage or master bedroom...
How much energy is saved on 18 seer VS 20.5 seer. Big price difference on units. $ 800 difference
Hi, Do you have data on heating cost versus degree days? I'm trying to size a heat pump to replace the present heating system. It's a propane direct vented heater (35,000 BTU at 65% efficiency) in one room, which heats the downstairs fine. The upstairs is not important; it just gets heat leaking through the floor and up the stairs.
Thanks,
Bruce Green
Oxford, Maine
I will install this in the second floor. Is everything I need included in the 4th generation, 24,000 bundle? If I need a line longer that 25ft in the 4th generation, do you see that separately?
The 24,000 btu DIY 4TH generation, you can use 10/2 wire ?
I want to install in a sunroom. My windows go all the way to the ceiling. I haveI want 23" of wall at the bottom the windows. Is this enough room
How many watts does the 24,000 use?
my mr cool displays DF what does that mean. I did not get a manual for the unit. only the remote control It was installed two weeks ago.
Hi,
I AM INTERESTED IN BUYING THE MR. COOL 4TH GENERATION 24K DIY SYSTEM. TWO QUESTIONS:

1) DO YOU ALSO SELL THE WALL MOUNTING BRACKET FOR THE EXTERIOR COMPRESSOR? IF SO, WHAT IS THE COST?

2)) CAN YOU TELL ME THE APPROXIMATE SHIPPING COST TO CENTRAL NJ (ZIP: 07023)?

THANKS1
How cold of temperatures do the operate at 100% for heating? And what is the f
Drop off percentages after that?

can this unit use 2 air handlers or do you need a different compressor
what size dyi ductless heat/ ac unit would I need for a 600' (3 car garage)
How many amps does the 24K unit #22096 pull in normal operation?
24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Split System 4th Generation - Wall Mounted

Do you by chance sell this unit with a 16' lineset? 25 feet is about 10' too much lineset. Thanks for any consideration you may be able to give me.
Russell J Bastoe
Can a 35-toot lineset be substituted for the 25-foot linset? If so, what is the additional cost? If not, what is the cost for a 35-foot lineset? Thanks.





What size breaker is needed for the 24k BTU unit?
Is there an elbow available because I plan to run the lines around a corner?
Hi I would like to know does this run on electric or gas.
What is the rated ambient temperature for the outside condenser? For the heat pump side of the system.
