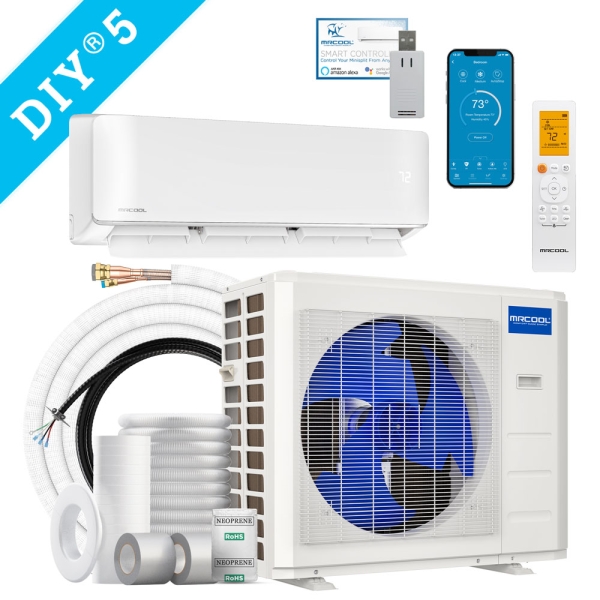

24k BTU 22.7 SEER2 MrCool DIY Ductless Heat Pump Split System 5th Generation - with 25 ft Line Set & 1 Year Labor Warranty
Item
HA26234
Models DIY-24-HP-C-230D25-O, DIY-24-HP-WMAH-230D25-O, DMS1Y4+000125
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.

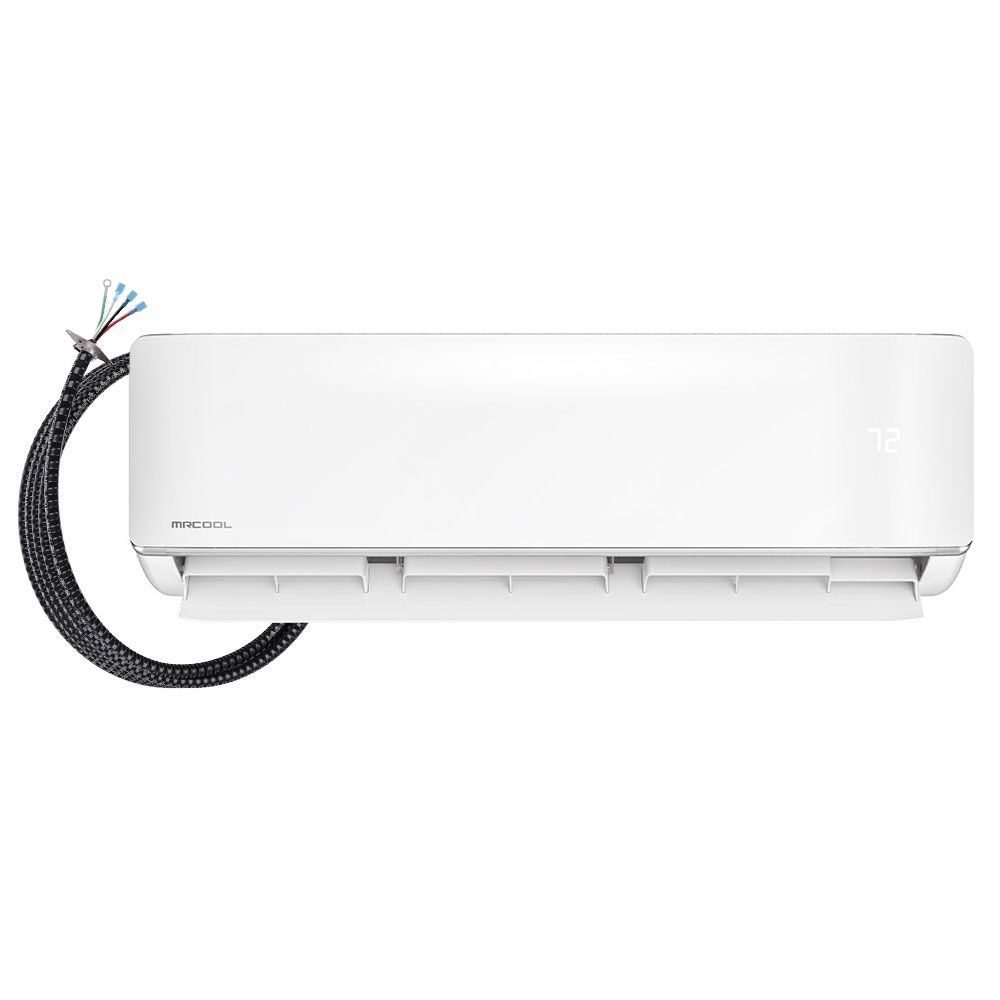

24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 5th Generation 240vItem: HA26229 Model: DIY-24-HP-WMAH-230D25-O
Qty: 1
1 Year Extended Labor Warranty for Ductless Mini Split SystemItem: EF10015 Model: DMS1Y4+000125
Qty: 1
Also Consider
The next generation of comfort is here.
With a new MrCool DIY 5th Gen Energy Star Mini-Split and complimentary 1 year Extended Labor Warranty from Ingrams.
Explore the lineup.
Certified Efficiency
Live on the coast? Don't worry, our condenser features Gold Fin condensers built to resist long term corrosion.
Louver Position Memory
The air handler's horizontal louver will automatically reset to the same position that was set the last time the unit was powered on.
SmartPhone App
Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
Follow Me Function
Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
Operation in Extremes.
Temperature Range
Easily control the temperature of your space from your phone or with the included remote control. The temperature adapts based on where you are in the room.
24-hour Comfort
The MrCool DIY has 2, 3, 4, and 5 zone options, the best warranties in the business, even better efficiency ratings, and a new Armored Pro Cable.
DIY made easy.
No refrigerant? No problem. With our patented, pre-charged quick connect line sets you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools.
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Protect your Purchase
Warranty Programs
Each unit comes backed with a standard 5-year warranty on replacement parts and a 7-year warranty on the compressor. For even greater protection, upgrade to the MrCool Care Kit Program and enjoy extended limited lifetime system replacement —because long-term comfort shouldn’t come with surprises. And when you purchase through IWAE, you get an additional 1-year extended labor warranty included at no extra cost, giving you even more value and coverage from day one.
Limited Warranty
New! Courtesy of Ingrams Water & Air, this 5th Generation MrCool DIY Mini Split comes with a complimentary 1 Year Extended Labor Warranty, with up to 6 additional years available as an upgrade for a total of 7 years warranty on labor.
Creating your own comfort in your home is easier than you'd imagine. The 5th Generation MrCool DIY Mini Split 24k BTU 22.7 SEER2 Ductless Heat Pump & AC System can be easily installed by homeowners to heat or cool a space between 1,000-1,200 square feet.
The 5th Generation MrCool DIY Mini Split 24k BTU 22.7 SEER2 Ductless Heat Pump & AC System's pre-charged DIY Quick Connect line set allows you to effortlessly install the system in your home without any extra tools, training, or equipment. No need for a vacuum as the lines are already pre-charged with R-454B refrigerant which is more environmentally friendly than older refrigerants.
The DIYPRO cable makes installation of the 5th Generation MrCool DIY Mini Split 24k BTU 22.7 SEER2 Ductless Heat Pump & AC System even easier. The unique cable allows you to install the system without any electrical conduit. The cable, with easy crimp connectors, protects against weather, animals, and yardwork tools. Using the cable will ensure protection of the mechanical features and create durability.
The many modes and functions of the MrCool DIY Ductless Mini Split will give you a variety of options to keep your home comfortable. These include an auto mode that allows you to set the unit temperature and allow it to maintain your most comfortable environment without additional adjustment on your part. The timer function will allow you to limit your energy consumption by shutting off when heating and cooling isn't needed. Also, if a power outage occurs, the unit will automatically restart and will proceed to heating or cooling your space to your previous settings immediately.
Those living on the coast don't need to worry about corrosion as with most condensers. The 5th Generation MrCool DIY Mini Split 24k BTU 22.7 SEER2 Ductless Heat Pump & AC System uses the Gold Fin condenser made to last longer by actively avoiding corrosion. The innovative technology ensures a longer lifespan for the system.
You are in total control of your comfort with many options to manage the temperature of your space. You are able to use the included wireless remote, the SmartHVAC app on your Apple or Android device, or have your Amazon Alexa or Google Assistant control the unit while you go hands-free.
If issues arise, feel confident that the 5th Generation MrCool DIY Mini Split 24k BTU 22.7 SEER2 Ductless Heat Pump & AC System boasts the best warranty within the industry. The limited lifetime warranty along with a 7-year compressor warranty and 5-year parts warranty all give you peace of mind when purchasing the system.
| Model | DIY-24-HP-WM-230D25-O |
|---|---|
| UPC | 840255588560 |
| AHRI Number | 216032547 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 22.7 |
| Heat Pump Efficiency (HSPF2) | 11.5 |
| Series | DIY |
| Zones | 1 |
| Popular Applications | Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |

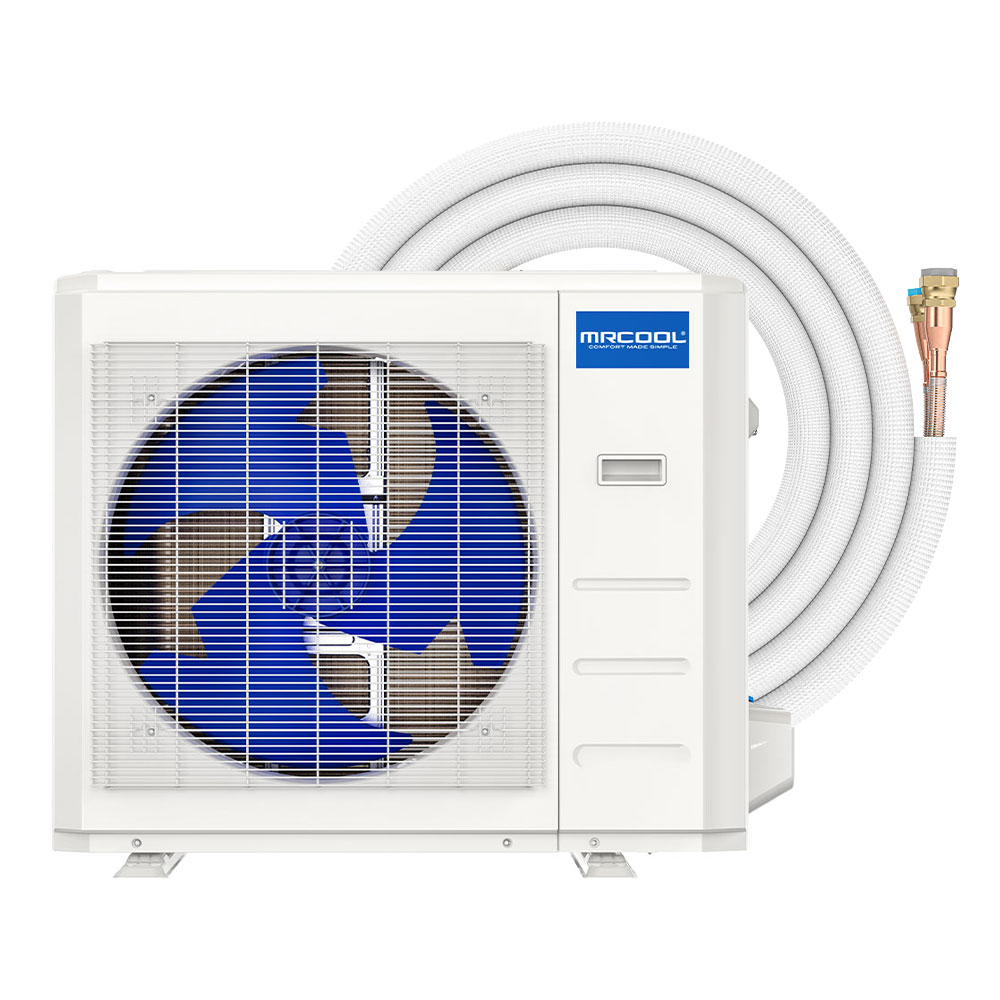

DIY-24-HP-C-230D25-O Specifications:
| Model | DIY-24-HP-C-230D25-O |
|---|---|
| UPC | 840255586979 |
| AHRI Number | 216032547 |
| Product Height (in) | 31.89 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.14 |
| Compressor | Inverter |
| Product Width (in) | 37.24 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 155.640000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 22.7 |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-24-HP-WMAH-230D25-O Specifications:
| Model | DIY-24-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587051 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 54.670000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DMS1Y4+000125 Specifications:
| Weight (lbs) | 0.000000 |
|---|---|
| Model | DMS1Y4+000125 |
