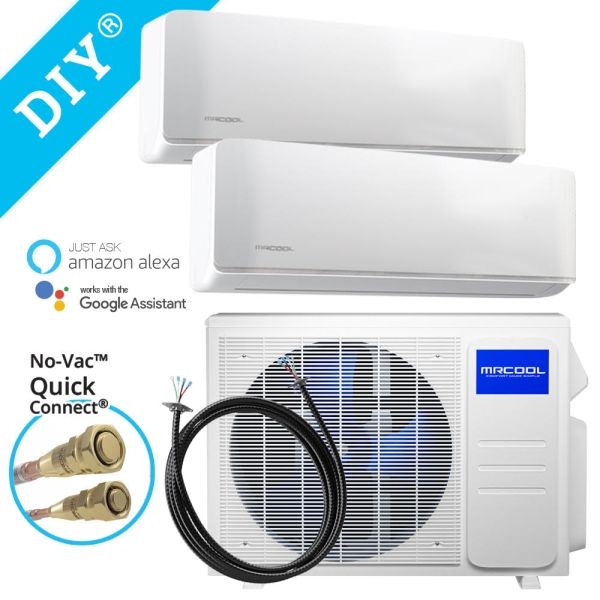

The 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split allows you to experience superb heating or cooling in two spaces of your home or office. The heat pump unit provides excellent heating and cooling efficiently without the use of fossil fuels. The 18,000 BTU air handler can provide excellent temperature control in a space between 750-900 square feet while the 12,000 BTU handler can heat or cool a room between 500-600 square feet.
Accessories
Description / Documents

The 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split allows you to experience superb heating or cooling in two spaces of your home or office. The heat pump unit provides excellent heating and cooling efficiently without the use of fossil fuels. The 18,000 BTU air handler can provide excellent temperature control in a space between 750-900 square feet while the 12,000 BTU handler can heat or cool a room between 500-600 square feet.

No specialized training or tools are needed for homeowners to install the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split. Use of basic tools is all that is needed. This easy installation is possible because of the included pre-charged Quick Connect line set and the DIYPRO cable that provides excellent mechanical protection. This leads to a very approachable DIY project for anyone.

The 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split can be controlled wirelessly with the included remote, by using the SmartHVAC app on your Apple or Android device, or your Amazon Alexa or Google Assistant. The digital display on each air handler gives needed information such as when the air filter needs to be cleaned or replaced, what temperature the unit is set to, or any alerts or warnings that need to be addressed.

The MrCool DIY Ductless Mini Split is customizable to any need. Each air handler uses directional louvers to help you stay comfortable at all times. The sleep mode adjusts the temperature higher or lower by 2 degrees F while you sleep in order to save energy while keeping you comfortable all night. The auto mode will automatically adjust to keep the room the specific temperature you desire. This is thanks in part to the variable speed DC inverter.

Another mode that allows you to be in control of the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split is the timer function. In order to save energy, the timer can be set to run the unit for a specific amount of time. Another convenient feature is how the unit immediately begins to return to the designated temperature once power returns after an outage.

Maintaining the MrCool DIY Ductless Mini Split is easy and convenient as well. In order to clean the air filters, all you have to do is clean with cool water and give it time to dry. The outdoor unit just needs to be clear of debris. Clean all 3 units by wiping them down with a dry or damp cloth.

No worries about any issues that may arise, either. You can rest assured that purchasing the 4th Generation MrCool DIY Multi-Zone 27k BTU 2 Zone Ductless Mini Split will be worthwhile with the 7-year compressor warranty and 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM227HPW03C07
UPC 818545026375
AHRI Number 207339195
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 12
Heat Pump Efficiency (HSPF) 10.3
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-18-HP-WMAH-230C25 Specifications:

Model DIY-18-HP-WMAH-230C25
UPC 810063868512
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 34.610000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
