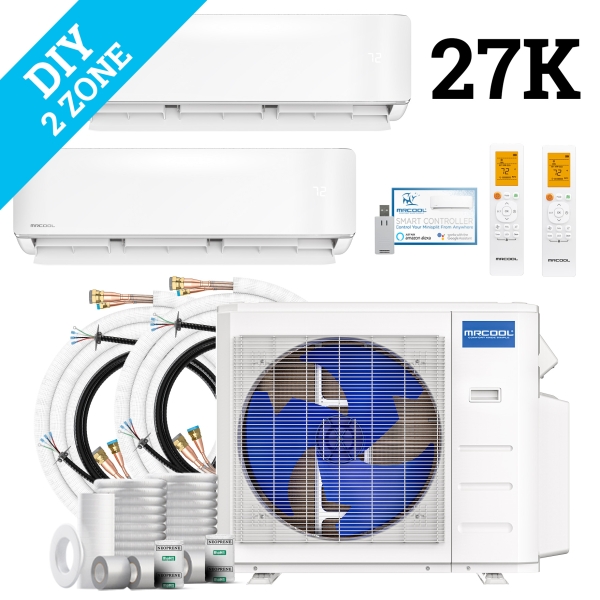

MrCool DIY Multi Zone Mini Split 27k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B
Item
HA26949
Models DIY-MULTI4-27HP230D-O, DIY-09-HP-WMAH-230D25-O, DIY-18-HP-WMAH-230D25-O, DIY16-1438-O, DIY16-1412-O
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
The next generation of comfort is here.
With a new MrCool DIY 5th Gen Multi-Zone Mini-Split. Our patented MRCOOL® Series heat pump is the only ductless mini-split system on the market specifically designed for amateur installation.
Explore the lineup.
Certified Efficiency
Live on the coast? Don't worry, our condenser features Gold Fin condensers built to resist long term corrosion.
Easy DIY® installation
Leakage Detection
Easy DIY® installation
Customize Your Comfort
Choose a wall-mounted or ceiling-mounted air handler to create a multi-zone system built around your home and your needs.
Smartphone App
Low Ambient Cooling*
Easy Quick Connect
SmartPhone App
Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
® DIY® Anywhere and manage
App Available in Apple & Android
Follow Me Function
Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
Tracks temperature around you for personalized comfort.
Auto Restart
Multi-Zone Solutions
Individual Rooms?
Individual Results.
Each zone can choose settings that won’t influence the others
Every air handler can use the Follow Me feature for maximum comfort
The MrCool DIY has 2, 3, 4, 5 and 6 zone options, the best warranties in the business, even better efficiency ratings, and a new Armored Pro Cable.
DIY made easy.
No refrigerant? No problem. With our patented, pre-charged quick connect line sets you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools.
The ends use proprietary Quick Connect® Threaded fittings that seal tight without needing brazing or soldering.
Made to be secure, lead-free, and DIY-safe - even for first-timers
U.S. patented technology that sets MRCOOL apart in the ductless market.
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Armored metal casing protects your electrical connection from damage, pests, and the elements.
Especially useful in garages, basements, sheds, or exterior walls where exposure is a concern.
Tested and certified by Intertek, ensuring safer installs
Protect your Purchase.
Warranty Programs
Each unit comes backed with a standard 5-year warranty on replacement parts and a 7-year warranty on the compressor. For even greater protection, upgrade to the MrCool Care Kit Program and enjoy an extended limited lifetime replacement warranty—because long-term comfort shouldn’t come with surprises.
From wanting to enjoy comfortable temperatures all year long to the desire to save money on your heating and cooling expenses, HVAC is an industry that gives you a lot to consider when making a change. Once you look into the MrCool DIY Multi Zone Mini Split 27k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B, you’ll find the kind of solution that makes choosing an upgrade simple. With AHRI and Energy Star certification, plus ETL and UL listing, this MrCool Mini Split has passed intensive third-party testing to showcase the validity of every functionality, efficiency, and safety claim. Effortlessly controlling spaces ranging from 1000 to 1200 square feet, this 27k BTU MrCool AC & Heat Pump is the right pick for your space.
Offering you a fully do-it-yourself setup process that won’t leave you needing to call in the big guns, the MrCool DIY Multi Zone Mini Split 27k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B saves you time and money on installation by removing the requirement of a licensed professional. Gold fin condensers effortlessly combat corrosion to let this MrCool Heat Pump go the distance for corrosive environments like coastal climates and industrial areas. Working with the DIYPro armored cable and quick connect DIY line sets that both streamline hooking up the indoor and outdoor units to each other, this MrCool AC & Heat Pump can be up and running in your home in no time.
With hardware this impressive and innovative, the MrCool DIY Multi Zone Mini Split 27k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B guarantees that you can enjoy your ideal climate with little to no effort. Both of the individual air handlers can use the Follow Me function fully unrelated to the settings of the other zone, checking the conditions read in by sensors in the remote control to make any necessary adjustments to the airflow direction, speed, and strength to maximize the comfort at its position in the room. Between the automatic adaptation options and the hands-on smartphone app abilities that provide you the options to pick your preferences from anywhere in the world, this MrCool Mini Split is exactly what you need to stay cool in the summer heat and cozy during winter weather.
When you can have all this powerful performance backed by a warranty that covers 5 years on parts and 7 years on the compressor by default, plus the option to elongate coverage for the compressor to a limited lifetime once you’ve enrolled in the MrCool Care Program, why not pull the trigger on top-tier comfort? Obtain this 5th Generation 27k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump system with its two indoor air handlers and their respective line sets full of energy-efficient R454B refrigerant today.
| Model | DIYM227HPW03D |
|---|---|
| AHRI Number | 216032589 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 23 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | DIY |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
DIY-MULTI4-27HP230D-O Specifications:
| Model | DIY-MULTI4-27HP230D-O |
|---|---|
| UPC | 840255587457 |
| AHRI Number | 216032589 |
| Product Height (in) | 31.2 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 140.200000 |
| Primary Heating Capacity | 25,001 - 30,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 23 |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-18-HP-WMAH-230D25-O Specifications:
| Model | DIY-18-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587044 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 54.010000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIYCASSETTE18HP-230D25-O Specifications:
| Model | DIYCASSETTE18HP-230D25-O |
|---|---|
| UPC | 840255587525 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-1412-O Specifications:
| Model | DIY16-1412-O |
|---|---|
| UPC | 840255587075 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 13.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1412-O Specifications:
| Model | DIY25-1412-O |
|---|---|
| UPC | 840255587099 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1412C-O Specifications:
| Model | DIY35-1412C-O |
|---|---|
| UPC | 840255587136 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1412C-O Specifications:
| Model | DIY50-1412C-O |
|---|---|
| UPC | 840255587150 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 33.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
