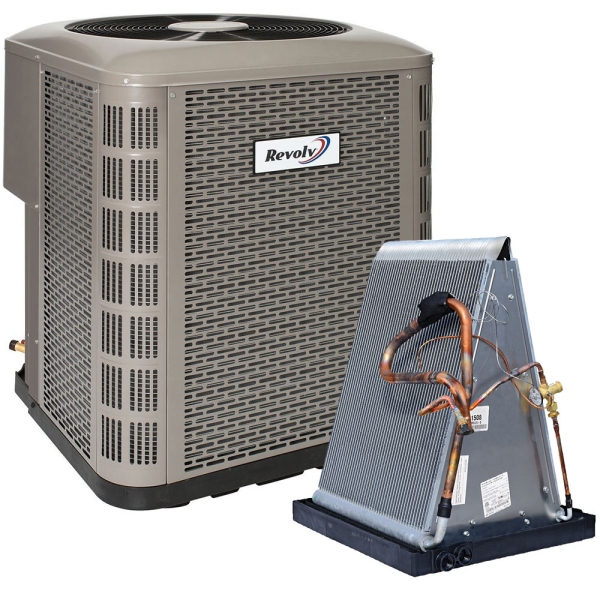

3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System

Item
HA23770
Models RSA3MD4M1SN42, C84DAMX42U-B
Condition
New


Customize 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    3.5 Ton 13 SEER2 Revolv Mobile Home Air Conditioner Condenser
    Item: HA22686 Model: RSA3MD4M1SN42
    Qty: 1
    3.5 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23753 Model: C84DAMX42U-B
    Qty: 1

    What's included

    DOCUMENTS


    Are you exhausted from the unpredictable temperature swings that demolish the ambiance of your mobile home? It's time to leave the aggravation in the past and look to the future of real, sustainable consistency with the 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System. Achieving both AHRI certification and ETL listing, a SEER2 rating of 13.4, and arriving ready to efficiently manage spaces ranging from 1750 to 2100 square feet, you get to relish in unparalleled climate control that extends into every corner of your motorhome. This reliability provides you with the freedom to relax in any spot that suits your whims without the need to search for comfortable areas.

    Designed for durability, the 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System takes advantage of a thoughtfully chosen range of features that safeguard the internal hardware. The robust cabinet of this Revolv AC is meticulously crafted from galvanized steel and finished with a powder-paint treatment, adding an aesthetic touch while smoothing out any sharp edges. This coating, capable of surviving a 950-hour salt spray test conducted in accordance with ASTM standard B117, guarantees resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is further streamlined with the incorporation of a removable top grille assembly, permanently lubricated motor, and accessible compressor and controls. The full-service valves come pre-charged to accommodate up to 20 feet of tubing, granting easy access to the brass valves to reduce the amount of time needed for setup and save you money. The composite base pan not only dampens operational noise but also provides corrosion resistance in a sturdy yet lightweight frame. This is additionally bolstered by a powder-coated wire guard and mesh hail guard, giving you peace of mind with the knowledge that the internals remain shielded from sports equipment, severe weather conditions, and more.

    The internal components of this 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System continue with a comparable set of standards as those upheld by the cabinet. Safety features like a high-pressure switch constantly keep track of the system pressures, immediately addressing any potential problems without requiring your direct involvement. The auto-reset function eliminates another common trigger for servicing. The integration of all-aluminum coils provides even more corrosion resistance, extending the lifespan of this Revolv Condenser even further. With all these advantages at your fingertips, why keep dealing with the inconsistency any longer? Upgrade to this 3.5 Ton Revolv today and transform your mobile home into a sanctuary of unparalleled comfort.

    More Information
    Model RSA3MD4M1SN42,C84DAMX42U-B
    UPC 663132448821
    AHRI Number 209439708
    Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
    Bundle Cooling Capacity 3.5 Ton
    Bundle Cooling Efficiency (SEER2) 13.4
    EER2 11
    Region Compatibility North
    California Residents see Prop 65 WARNING

    RSA3MD4M1SN42 Specifications:

    More Information
    Model RSA3MD4M1SN42
    UPC 663132448821
    Product Height (in) 30.75
    Avg Coverage Area 1,750 - 2,100 Sq Ft
    Product Length (in) 35.5
    Compressor Single Stage
    Product Width (in) 35.5
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 174.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 13.4
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility North

    C84DAMX42U-B Specifications:

    More Information
    Model C84DAMX42U-B
    UPC 663132446865
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 3.5 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 23.300000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year

    DOCUMENTS


    DOCUMENTS
