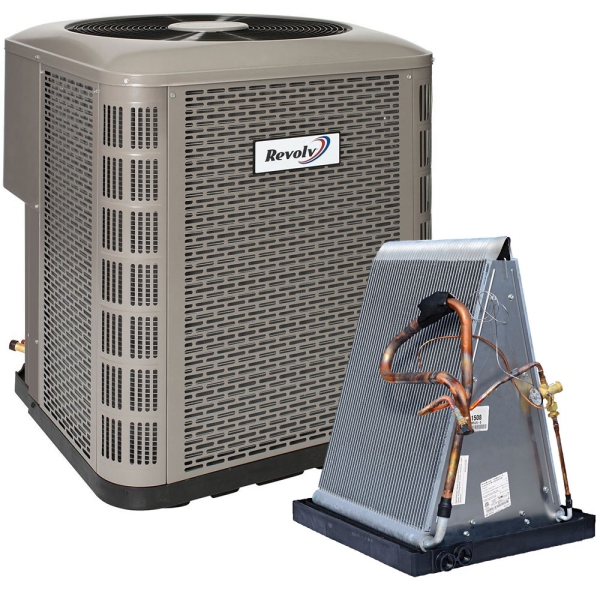

3.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

Item
HA23785
Models RSH3ME4M1SP42, C84DAMX43U-B
Condition
New


Customize 3.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    3.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump Condenser
    Item: HA22701 Model: RSH3ME4M1SP42
    Qty: 1
    3.5 Ton Revolv Mobile Home Evaporator Coil - TXV
    Item: HA23754 Model: C84DAMX43U-B
    Qty: 1

    Affordable HVAC Installation


    What's included

    DOCUMENTS


    Are you fatigued by the erratic temperature shifts that ruin the atmosphere of your mobile home? It's time to bid farewell to these agitations and set your sights on the future with the 3.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System. Having earned both AHRI certification and ETL listing, an impressive SEER2 rating of 14, and coming equipped to manage areas spanning from 1750 to 2100 square feet, this Revolv Heat Pump delivers unwavering climate control that diffuses into every inch of your motorhome. This dependability grants you the freedom to unwind in any room within your home, eliminating the need to hunt for comfortable spots.

    Constructed for durability, the 3.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System leverages a carefully selected array of features that protect the internal components. The robust cabinet of this Revolv Heat Pump is forged from galvanized steel and treated with a powder-paint finish, bringing aesthetic appeal while rounding out any sharp edges. This coating endures a 950-hour salt spray test when conducted in accordance with ASTM standard B117, promising resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is simplified while airflow is enhanced through the incorporation of a removable top grille assembly and easily accessible compressor and controls. The composite base pan not only dampens operational noise but also improves corrosion resistance with a strong and lightweight frame. Further amplified by a powder-coated wire guard and mesh hail guard, you can have confidence in the knowledge that the internals remain safeguarded from sports equipment, inclement weather conditions, and more.

    The internal aspects of this 3.5 Ton 14 SEER Revolv Mobile Home Heat Pump & Coil System follows suit to ensure a remarkable performance just like that provided by the external hardware. Safety features like a high-pressure switch vigilantly monitor system pressures, quickly thwarting any growing complications without requiring your direct intervention while the auto-reset function removes yet another typical cause for service requests. The brass valves are easily accessible and come pre-charged to work with up to 20 feet of tubing, saving you both time and money during installation and maintenance. The integration of all-aluminum coils provides this Revolv Heat Pump with even more corrosion resistance, further improving the longevity. With all these benefits within your grasp, why continue to put up with inconsistency any longer? Upgrade to this 3.5 Ton Revolv today and transform your mobile home into your personal haven.

    More Information
    Model RSH3ME4M1SP42,C84DAMX43U-B
    UPC 663132452507
    AHRI Number 209851999
    Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
    Bundle Cooling Capacity 3.5 Ton
    Bundle Cooling Efficiency (SEER2) 14.3
    EER2 11.8
    Heat Pump Efficiency (HSPF2) 8.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    RSH3ME4M1SP42 Specifications:

    More Information
    Model RSH3ME4M1SP42
    UPC 663132452507
    Product Height (in) 39
    Avg Coverage Area 1,750 - 2,100 Sq Ft
    Product Length (in) 30.75
    Compressor Single Stage
    Product Width (in) 30.75
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 201.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14.3
    Suction Line Size 7/8 inch
    System Application Type Mobile Home Systems
    Voltage 240
    Warranty 5 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    C84DAMX43U-B Specifications:

    More Information
    Model C84DAMX43U-B
    UPC 663132446858
    Product Height (in) 18
    Air Flow Direction Vertical
    Product Length (in) 19.5
    Cooling Capacity 3.5 Ton
    Product Width (in) 18.13
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 23.300000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year
