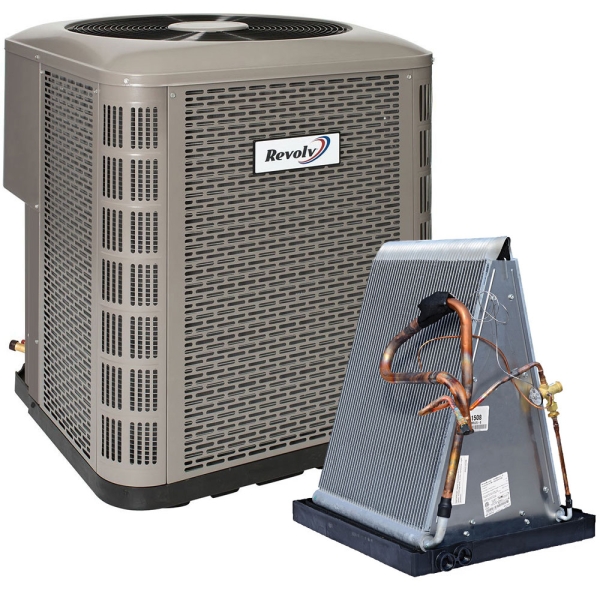

3 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System

Item
HA23774
Condition
New

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Free Shipping

What's included

DOCUMENTS


Are you feeling fatigued by the unpredictable temperature fluctuations that disrupt the ambiance of your mobile home? It's time to say goodbye to frustration and begin living in an era of reliability with the 3 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System. Earning both AHRI certification and ETL listing, an impressive SEER2 rating of 13.8, and arriving with the capacity to manage spaces spanning from 1500 to 1800 square feet, you can enjoy the splendor of unparalleled climate control that diffuses into every nook of your motorhome. This dependability offers you the freedom to de-stress in any room that beckons without the need to search for comfortable spots.

Crafted with durability in mind, the 3 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System employs a carefully chosen array of features that protect the internal components. The strong cabinet of this Revolv AC is fashioned from galvanized steel and treated with a powder-paint coating, bringing an aesthetic appeal while smoothing out any sharp edges. This finish can survive a 950-hour salt spray test when conducted according to ASTM standard B117, ensuring resilience against scratches, chipping, fading, and corrosion over the years. Maintenance is straightforward and airflow is optimized thanks to the inclusion of a removable top grille assembly, a permanently lubricated motor, and accessible compressor and controls. The composite base pan not only reduces operational noise but also supplies corrosion resistance, all within a robust yet lightweight frame. This is reinforced with a powder-coated wire guard and mesh hail guard, providing peace of mind with the knowledge that the internals are protected from sports equipment, harsh weather conditions, and more.

The internal components of this 3 Ton 13.8 SEER2 Revolv Mobile Home Air Conditioner & Coil System adhere to similar standards as those instilled by the cabinet. Safety features like a high-pressure switch diligently keep an eye on the system pressures, taking care of any potential complications without requiring your direct involvement while the auto-reset function removes another common trigger for service calls. The full-service valves come pre-charged to work with 20 feet of tubing, granting easy access to the brass valves that reduces setup time and saves you money. The inclusion of all-aluminum coils gives even more corrosion resistance, further elongating the lifespan of this Revolv Condenser. With all these benefits at your disposal, why continue to deal with the discomfort any longer? Upgrade to this 3 Ton Revolv today and transform your mobile home into your personal sanctuary.

More Information
Model RSA3ME4M1SN36,C84DAMX36U-B
UPC 663132442294
AHRI Number 208404147
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 13.8
EER2 11.7
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

RSA3ME4M1SN36 Specifications:

More Information
Model RSA3ME4M1SN36
UPC 663132442294
Product Height (in) 38.75
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 27.5
Compressor Single Stage
Product Width (in) 27.5
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 133.000000
Refrigerant R-410a
Cooling Efficiency (SEER2) 14.3
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility North
