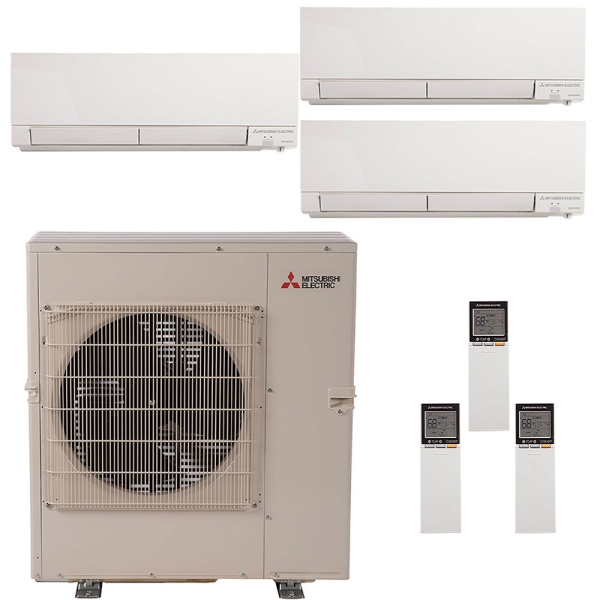

33k BTU 19.2 SEER Mitsubishi M Series Ductless Heat Pump Split System - Wall Mounted - 6k+9k+18k
Contact an expert now.
18k BTU Mitsubishi FH Series Wall Mounted Ductless Air Handler
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
This split system comes with temperature accurate efficiency making this system a great choice for any residence. It is made of a ductless heat pump and three indoor units without the need for ductwork. The compressor speed and refrigerant flow can easily be adjusted for your comfort needs. Mitsubishi installed this system complete with a smart set function that can activated with a button on the remote.
| Model | MXZ-4C36NA2-U1,MSZ-FH06NA,MSZ-FH09NA,MSZ-FH18NA2 |
|---|---|
| AHRI Number | 201755943 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency | 19 SEER and Above |
| EER | 9.4 |
| Heat Pump Efficiency (HSPF) | 11 |
| Zones | 3 |
| Popular Applications | Apartment, Duplex, Hotel Room, Office, Single Family Home |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
MXZ-4C36NA2-U1 Specifications:
| Model | MXZ-4C36NA2-U1 |
|---|---|
| UPC | 00622632120453 |
| Product Height (in) | 31.34 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 13 |
| Compressor | Inverter |
| Product Width (in) | 37.41 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | Up to 11 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 139.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 17 SEER |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
MSZ-FH06NA Specifications:
| Model | MSZ-FH06NA |
|---|---|
| UPC | 00622632150092 |
| Product Height (in) | 12.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.19 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 36.44 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
MSZ-FH09NA Specifications:
| Model | MSZ-FH09NA |
|---|---|
| UPC | 00622632130100 |
| Product Height (in) | 12.69 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.19 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 36.44 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 34.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
MSZ-FH18NA2 Specifications:
| Model | MSZ-FH18NA2 |
|---|---|
| UPC | 00622632150108 |
| Product Height (in) | 12.81 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.38 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 36.75 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 37.000000 |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
