Don’t settle for subpar when you can find an HVAC solution that meets your every need and then some. With the MrCool DIY Multi Zone Mini Split 33k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B in your home, you and your loved ones will enjoy top-tier comfort no matter the time of year. Earning ETL and UL listings, as well as AHRI and Energy Star certifications, this MrCool Mini Split passes a slew of third-party evaluations to prove the legitimacy of every operational, efficiency, and safety claim. Giving you total control over your 1250 to 1500 square foot space, this 33k BTU MrCool AC & Heat Pump will show you the kind of results you’ve only dreamed of having for your climate control.

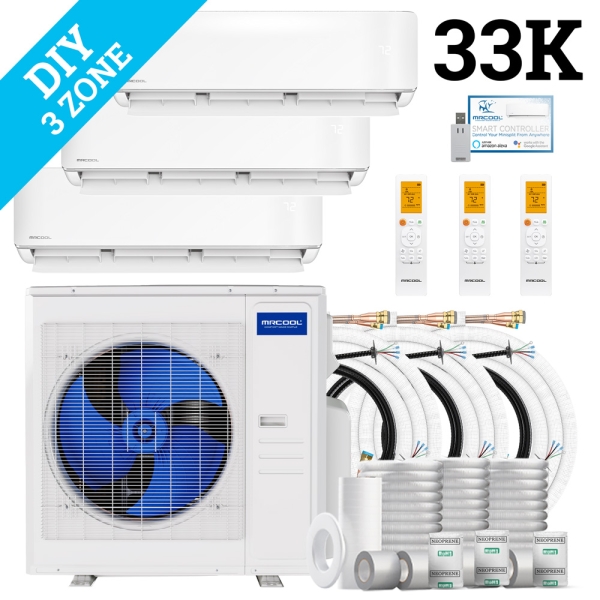

This Bundle Includes:

Accessories
Description / Documents

Don’t settle for subpar when you can find an HVAC solution that meets your every need and then some. With the MrCool DIY Multi Zone Mini Split 33k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B in your home, you and your loved ones will enjoy top-tier comfort no matter the time of year. Earning ETL and UL listings, as well as AHRI and Energy Star certifications, this MrCool Mini Split passes a slew of third-party evaluations to prove the legitimacy of every operational, efficiency, and safety claim. Giving you total control over your 1250 to 1500 square foot space, this 33k BTU MrCool AC & Heat Pump will show you the kind of results you’ve only dreamed of having for your climate control.

Starting the savings up front then continuing to decrease your costs over the years, the MrCool DIY Multi Zone Mini Split 33k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B puts all the tools in your hands to handle the setup process from start to finish. Coming with the necessary quick connect DIY line sets already prefilled with R454B refrigerant, while also working with the DIYPro armored cable that similarly streamlines the electrical hookups, this MrCool AC & Heat Pump makes connecting the indoor and outdoor units a breeze. Equipped with gold fin condensers that effectively combat any corrosive particulate in the air, this MrCool Heat Pump is the perfect fit for any home, even those in coastal areas or other highly corrosive environments.

Keeping your comfort as the top priority from every angle, the MrCool DIY Multi Zone Mini Split 33k BTU 3 Zone Ductless AC & Heat Pump - 5th Generation - R454B boasts a range of climate control options that demand as much or as little effort as you’re willing to invest. All three of the air handlers in this bundle include the Follow Me function, giving you the means to automatically adjust the settings in your space to optimize your comfort thanks to built-in sensors that live in the included remote controller. With both autonomous technology and compatibility with a smartphone app that gives you the means to change your preferences from anywhere in the world, this MrCool Mini Split guarantees your comfort in every season.

With all this hardware backed by a default warranty that covers 5 years on parts and 7 years on the compressor with the option to enroll in the MrCool Care Kit Program, what more could you be holding out for? Snag this 5th Generation 33k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump bundle with an indoor air handler and R454B-precharged line set per zone today.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW05D
AHRI Number 216032592
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency (SEER2) 23
Heat Pump Efficiency (HSPF2) 9.9
Series DIY
Zones 3
Region Compatibility Nationwide

DIY-MULTI5-36HP230D-O Specifications:

Model DIY-MULTI5-36HP230D-O
UPC 840255587464
AHRI Number 216032592
Product Height (in) 31.2
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 16.1
Compressor Inverter
Product Width (in) 37.2
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 9.9
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 169.200000
Primary Heating Capacity 35,001 - 40,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 23
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Region Compatibility Nationwide

DIY-06-HP-WMAH-230D25-O Specifications:

Model DIY-06-HP-WMAH-230D25-O
UPC 840255587013
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE06HP-230D25-O Specifications:

Model DIYCASSETTE06HP-230D25-O
UPC 840255587495
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-09-HP-WMAH-230D25-O Specifications:

Model DIY-09-HP-WMAH-230D25-O
UPC 840255587020
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE09HP-230D25-O Specifications:

Model DIYCASSETTE09HP-230D25-O
UPC 840255587501
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-12-HP-WMAH-230D25-O Specifications:

Model DIY-12-HP-WMAH-230D25-O
UPC 840255587037
Product Height (in) 11.7
Configuration Wall Mounted
Product Length (in) 7.4
Air Flow Direction Horizontal
Product Width (in) 31.6
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.500000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIYCASSETTE12HP-230D25-O Specifications:

Model DIYCASSETTE12HP-230D25-O
UPC 840255587518
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY-18-HP-WMAH-230D25-O Specifications:

Model DIY-18-HP-WMAH-230D25-O
UPC 840255587044
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 54.010000
Refrigerant R-454b
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor

DIYCASSETTE18HP-230D25-O Specifications:

Model DIYCASSETTE18HP-230D25-O
UPC 840255587525
Product Height (in) 8.9
Configuration Ceiling Mounted
Product Length (in) 13.2
Air Flow Direction Downflow
Product Width (in) 50.3
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 45.000000
Refrigerant R-454b
Series DIY
Special Features Alexa, Google Assistant, WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty Lifetime, 5 Year Parts, 7 Year Compressor

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1438-O Specifications:

Model DIY16-1438-O
UPC 840255589154
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 7.900000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY16-1412-O Specifications:

Model DIY16-1412-O
UPC 840255587075
Product Length (in) 192
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 13.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1438-O Specifications:

Model DIY25-1438-O
UPC 840255589161
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 10.400000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY25-1412-O Specifications:

Model DIY25-1412-O
UPC 840255587099
Product Length (in) 300
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1438C-O Specifications:

Model DIY35-1438C-O
UPC 840255589185
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 17.600000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY35-1412C-O Specifications:

Model DIY35-1412C-O
UPC 840255587136
Product Length (in) 420
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 23.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1438C-O Specifications:

Model DIY50-1438C-O
UPC 840255589192
Product Height (in) 36.5
Product Width (in) 35.5
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 24.000000
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Warranty None

DIY50-1412C-O Specifications:

Model DIY50-1412C-O
UPC 840255587150
Product Length (in) 600
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Weight (lbs) 33.000000
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Warranty None

Ways to Save as You Shop

IWAE Insiders ProgramIWAE Insiders Program
IWAEPros ProgramIWAEPros Program
Financing with IWAEFinancing with IWAE
IWAE Rebate FinderIWAE Rebate Finder
Labor Warranty at IWAELabor Warranty at IWAE

Related Content View All >

Loading...
Loading...
