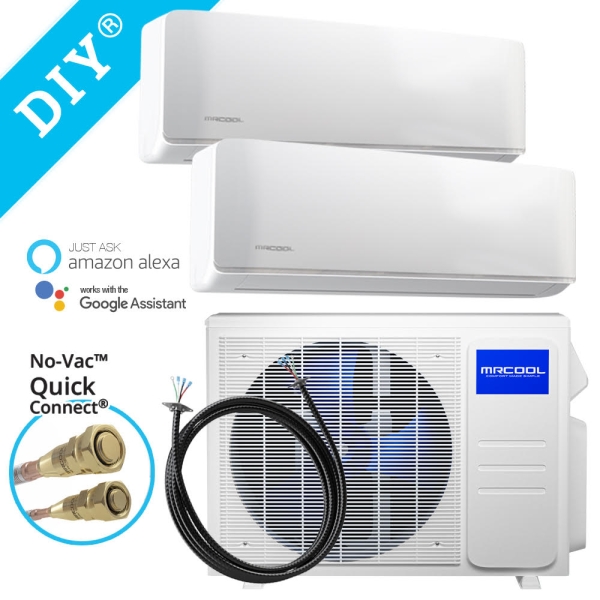

Keep two areas comfortable easily with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, the greatest DIY mini split system in the industry. This convenient heat pump provides both cooling and heating with a 36,000 BTU heating capacity and a SEER rating of 21.5. This is thanks in part to the variable speed DC inverter. The 24,000 BTU indoor air handler can heat or cool a space between 1,000-1200 square feet, while the 9,000 BTU handler will cover a room between 375-450 square feet.
Accessories
Description / Documents

Keep two areas comfortable easily with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, the greatest DIY mini split system in the industry. This convenient heat pump provides both cooling and heating with a 36,000 BTU heating capacity and a SEER rating of 21.5. This is thanks in part to the variable speed DC inverter. The 24,000 BTU indoor air handler can heat or cool a space between 1,000-1200 square feet, while the 9,000 BTU handler will cover a room between 375-450 square feet.

Installing the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split is easy and requires no special training, no costly HVAC installer, or special tools. This ease is thanks to the Quick Connect line set that comes pre charged with refrigerant so there's no need for a vacuum. The unit also comes with the new DIYPRO cable that provides mechanical protection without an electrical conduit.

When you need to control the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, you can do so in a variety of ways. Utilize the SmartHVAC app on your Apple or Android device. This is easy to do with the included USB devices to install in each indoor air handler. Also control it with your Amazon Alexa, Google Assistant, or the included remote.

There are many different operational modes you can use to customize your heating and cooling experience. The main mode is auto, which allows you to set a designated temperature and the unit will automatically adjust as necessary to maintain that desired temperature.

The 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split will allow you to save money while you sleep with the sleep mode. This mode uses an 8 hour window of time to adjust the temperature by two degrees cooler or warmer slowly each of the first two hours, then maintains that temperature the remaining 6 hours. This uses less energy thus you spend less on utility costs.

The anti-mildew function keeps the indoor unit from accumulating mold and mildew growth. During this mode, after the air handler shuts off, it will continue to run at a low air flow for 10 minutes in order to prevent condensation accumulation.

If any unlikely issues occur with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, such as low refrigerant, a leak, or reminders to clean or replace the air filter, the front panel of the air handler will display troubleshooting codes you can reference in the user manual in order to solve the problem. In order to prevent problems, be sure to address any of these alerts. Also, keep the unit clean with a dry or damp cloth and wash the air filters with regular tap water.

The good news is if an issue arises, this system is backed by a 7-year compressor warranty and a 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM236HPW00C08
UPC 818545026665
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 2
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-24-HP-WMAH-230C25 Specifications:

Model DIY-24-HP-WMAH-230C25
UPC 810063868536
Product Height (in) 13.19
Configuration Wall Mounted
Product Length (in) 8.9
Air Flow Direction Horizontal
Product Width (in) 42.52
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 35.270000
Refrigerant R-410a
Series DIY
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY25-3858 Specifications:

Model DIY25-3858
UPC 810035931053
Liquid Line Size 3/8 inch
Weight (lbs) 15.000000
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Warranty None
