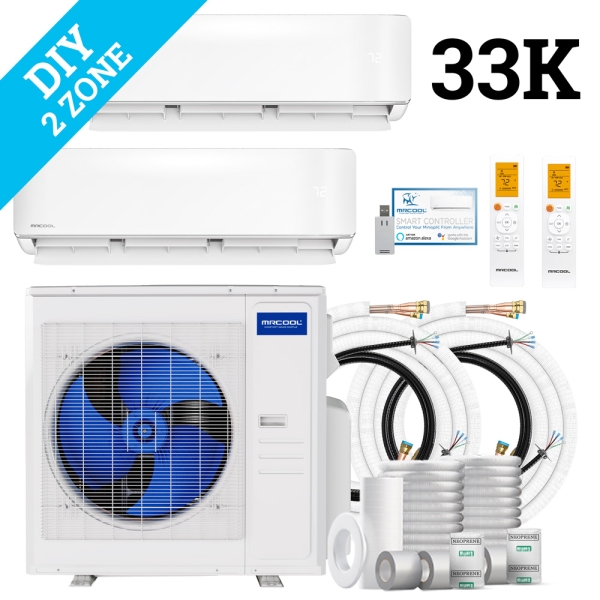

MrCool DIY Multi Zone Mini Split 33k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B
Item
HA26951
Models DIY-MULTI5-36HP230D-O, DIY-09-HP-WMAH-230D25-O, DIY-24-HP-WMAH-230D25-O, DIY16-1438-O, DIY16-3858-O
Condition
New
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Get everything right and save time
Contact an expert now.
The next generation of comfort is here.
With a new MrCool DIY 5th Gen Multi-Zone Mini-Split. Our patented MRCOOL® Series heat pump is the only ductless mini-split system on the market specifically designed for amateur installation.
Customize Your Comfort
Choose Your System Size
Select the outdoor condenser that matches your home’s square footage and zone needs. The all-new MrCool DIY Multi-zone goes up to 6 zones to meet your home’s needs.
Easy DIY® installation
Leakage Detection
DIY Pro® Cable
Match Each Zone to Your Ideal Air Handler
Choose a wall-mounted, ceiling-mounted, or the all-new DIY Hybrid Central Ducted air handler to create a multi-zone system built around your home and your needs.
Smartphone App
Low Ambient Cooling*
Easy Quick Connect
Explore the lineup.
SmartPhone App
Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
® DIY® Anywhere and manage
App Available in Apple & Android
Follow Me Function
Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
Tracks temperature around you for personalized comfort.
Auto Restart
Multi-Zone Solutions
Individual Rooms?
Individual Results.
Each zone can choose settings that won’t influence the others
Every air handler can use the Follow Me feature for maximum comfort
The MrCool DIY has 2, 3, 4, 5 and 6 zone options, the best warranties in the business, even better efficiency ratings, and a new Armored Pro Cable.
DIY made easy.
No refrigerant? No problem. With our patented, pre-charged quick connect line sets you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools.
The ends use proprietary Quick Connect® Threaded fittings that seal tight without needing brazing or soldering.
Made to be secure, lead-free, and DIY-safe - even for first-timers
U.S. patented technology that sets MRCOOL apart in the ductless market.
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Armored metal casing protects your electrical connection from damage, pests, and the elements.
Especially useful in garages, basements, sheds, or exterior walls where exposure is a concern.
Tested and certified by Intertek, ensuring safer installs
Protect your Purchase.
Warranty Programs
Each unit comes backed with a standard 5-year warranty on replacement parts and a 7-year warranty on the compressor. For even greater protection, upgrade to the MrCool Care Kit Program and enjoy an extended limited lifetime replacement warranty—because long-term comfort shouldn’t come with surprises.
Just because the temperature outside varies wildly with the seasons doesn’t mean the climate inside your home needs to follow that example. Get the MrCool DIY Multi Zone Mini Split 33k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B and make sure you and your loved ones enjoy every second you spend indoors. Backed by both AHRI and Energy Star certifications, plus ETL and UL listings, this MrCool Mini Split passes intensive third-party testing to prove the legitimacy of every performance, efficiency, and safety claim. Effortlessly handling space between 1250 and 1500 square feet, this 33k BTU MrCool AC & Heat Pump is ready to go the distance for your year-round comfort.
Saving you the precious time and price tag of coordinating with a licensed technician, the MrCool DIY Multi Zone Mini Split 33k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B lets you handle the setup process without the need to bring in a professional. Boasting gold fin condensers that fend off corrosion from the environment, this MrCool Heat Pump can continue to perform at peak even in areas along the coast or near industrial plants that can cause technology to rust or wear down over the years. Thanks to the DIYPro armored cable and the quick connect DIY line sets that let you connect the electronics and refrigerant from the outdoor to the indoor units, this MrCool AC & Heat Pump can make the most of your space in moments.
Making it easy to achieve the kind of comfort levels you’ve only dreamt of, the MrCool DIY Multi Zone Mini Split 33k BTU 2 Zone Ductless AC & Heat Pump - 5th Generation - R454B gives you the full functionality you’ve always wanted. Each air handler can control the climate in its space with ease using the Follow Me function, a feature that finds the conditions in the area where the remote is situated using the built-in sensors then adapts the airflow strength, direction, and speed to give you the top-tier climate control you crave. Between fully automated temperature regulation to the hands-on option of the smartphone app that allows you to determine your settings from anywhere, this MrCool Mini Split gives you everything you need and more to enjoy your space to the fullest no matter what’s going on outside.
Backing all this hardware with a default warranty that covers 5 years on parts and 7 years on the compressor, even giving you the option to elongate the compressor’s coverage to a limited lifetime once you’ve enrolled in the MrCool Care Program, what more could you be holding out for? Acquire this 5th Generation 33k BTU MrCool DIY Multi Zone Ductless Mini Split AC & Heat Pump system with an air handler per zone plus their line sets full of energy-efficient R454B refrigerant today.
| Model | DIYM236HPW03D |
|---|---|
| AHRI Number | 216032592 |
| Bundle Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Bundle Cooling Capacity | 2.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 23 |
| Heat Pump Efficiency (HSPF2) | 9.9 |
| Series | DIY |
| Region Compatibility | Nationwide |
| California Residents | see Prop 65 WARNING |
DIY-MULTI5-36HP230D-O Specifications:
| Model | DIY-MULTI5-36HP230D-O |
|---|---|
| UPC | 840255587464 |
| AHRI Number | 216032592 |
| Product Height (in) | 31.2 |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 3 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.9 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 169.200000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 23 |
| Series | DIY |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-09-HP-WMAH-230D25-O Specifications:
| Model | DIY-09-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587020 |
| Product Height (in) | 11.7 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.4 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 31.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.500000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIYCASSETTE09HP-230D25-O Specifications:
| Model | DIYCASSETTE09HP-230D25-O |
|---|---|
| UPC | 840255587501 |
| Product Height (in) | 8.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 13.2 |
| Air Flow Direction | Downflow |
| Product Width (in) | 50.3 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 45.000000 |
| Refrigerant | R-454b |
| Series | DIY |
| Special Features | Alexa, Google Assistant, WiFi Capable |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
DIY-24-HP-WMAH-230D25-O Specifications:
| Model | DIY-24-HP-WMAH-230D25-O |
|---|---|
| UPC | 840255587051 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 54.670000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
DIY-24-HP-MUAH-230D25-O Specifications:
| Model | DIY-24-HP-MUAH-230D25-O |
|---|---|
| UPC | 840255588409 |
| Product Height (in) | 45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 17.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 104.700000 |
| Refrigerant | R-454b |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DIY16-1438-O Specifications:
| Model | DIY16-1438-O |
|---|---|
| UPC | 840255589154 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 7.900000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-1438-O Specifications:
| Model | DIY25-1438-O |
|---|---|
| UPC | 840255589161 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 10.400000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-1438C-O Specifications:
| Model | DIY35-1438C-O |
|---|---|
| UPC | 840255589185 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 17.600000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-1438C-O Specifications:
| Model | DIY50-1438C-O |
|---|---|
| UPC | 840255589192 |
| Product Height (in) | 36.5 |
| Product Width (in) | 35.5 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY16-3858-O Specifications:
| Model | DIY16-3858-O |
|---|---|
| UPC | 840255587082 |
| Product Length (in) | 192 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY25-3858-O Specifications:
| Model | DIY25-3858-O |
|---|---|
| UPC | 840255587112 |
| Product Length (in) | 300 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 19.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY35-3858C-O Specifications:
| Model | DIY35-3858C-O |
|---|---|
| UPC | 840255587143 |
| Product Length (in) | 420 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 23.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
DIY50-3858C-O Specifications:
| Model | DIY50-3858C-O |
|---|---|
| UPC | 840255587167 |
| Product Length (in) | 600 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 37.000000 |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
