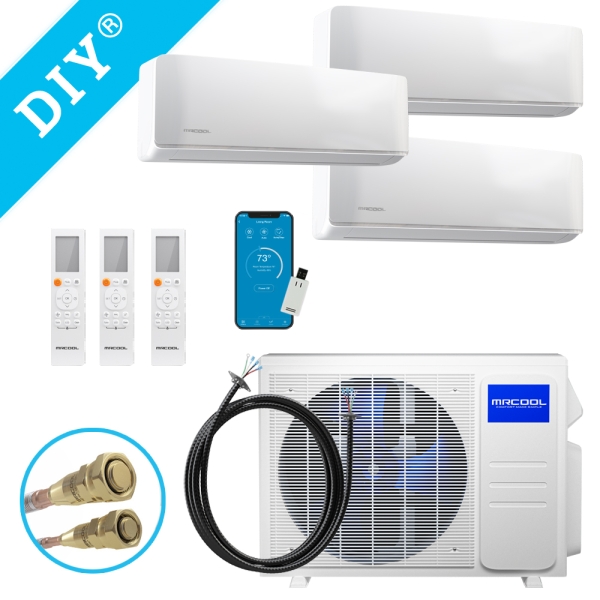

It's possible to heat and cool three areas in your home with the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split, which you can install yourself without help from an expert.
Accessories
Description / Documents

It's possible to heat and cool three areas in your home with the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split, which you can install yourself without help from an expert.

The outdoor heat pump portion of the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split has a heating capacity of up to 36,000 BTU is highly efficient with a 21.5 SEER rating. This is thanks in part to the variable speed DC inverter. The 9,000 BTU air handler has the capability to heat or cool spaces between 375-450 square feet. The two 12,000 BTU air handlers work best in rooms between 500-600 square feet.

You can easily install the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split without special tools, training, or professional HVAC assistance. The Quick Connect line set makes this easy installation possible as it is pre-charged with an eco-friendly refrigerant. Adding to the installation ease is the DIYPRO cable. It requires no electrical conduit while providing superior mechanical protection from animals, weather, or yard tools.

You can control the MrCool DIY Ductless Mini Split in a variety of ways that work best for you. Use the included remote, the SmartHVAC app, or your Amazon Alexa or Google Assistant.

The 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split features many operational modes. The auto mode is the easiest operating option. Simply set your desired temperature and the unit will work to maintain that temperature consistently in your space.

The sleep mode allows you to save money while you sleep. The MrCool DIY Ductless Mini Split will drop when heating and rise when cooling by 2 degrees F each hour in the first two hours of the sleep mode operation. For the rest of the eight hour window, the unit continues to run at this more moderate temperature so you can sleep comfortably while saving energy and utility costs.

There are a variety of different features with the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split to enhance your heating and cooling experience. You can easily limit energy usage with the timer function. If a power outage occurs, the system will automatically resume operation with the same settings once power returns.

Maintenance is simple with the 4th Generation MrCool DIY Multi-Zone 33k BTU 3 Zone Ductless Mini Split. Troubleshooting codes appear on the front display when potential issues arise. These codes can range from low refrigerant alerts to reminders to clean or replace the unit's air filter.

You can feel confident in your purchase thanks to the 7-year compressor warranty and a 5-year parts warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model DIYM336HPW04C28
UPC 810080367746
AHRI Number 207339194
Bundle Avg Coverage Area 1,250 - 1,500 Sq Ft
Bundle Cooling Capacity 2.5 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 10.5
Heat Pump Efficiency (HSPF) 11
Series DIY
Zones 3
Popular Applications Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
Region Compatibility Nationwide

DIY-09-HP-WMAH-230C25 Specifications:

Model DIY-09-HP-WMAH-230C25
UPC 810063869533
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts

DIY-12-HP-WMAH-230C25 Specifications:

Model DIY-12-HP-WMAH-230C25
UPC 810063869540
Product Height (in) 11.69
Configuration Wall Mounted
Product Length (in) 7.44
Air Flow Direction Horizontal
Product Width (in) 31.57
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 23.810000
Refrigerant R-410a
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
